[Gmsh] 2d sturcture gird with triangles facing each other

Abushaikha, Ahmed a.abushaikha08 at imperial.ac.uk
Thu Oct 14 21:03:34 CEST 2010


Hi all,

Thank you for this excellent program,

I am try to generate a 2d structure grid with triangles facing each other, attachement_1, but unable, i get only traingles following each other, attachement_2, can some help me please...

thanx..

Ahmad
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20101014/4a847d18/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

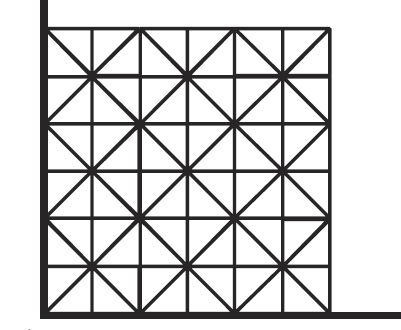

Name: attachement_1.png
Type: image/x-png
Size: 11233 bytes
Desc: attachement_1.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20101014/4a847d18/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

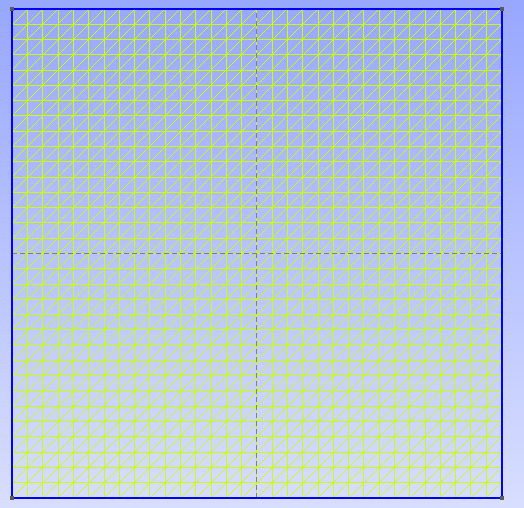

Name: attachement_2.png
Type: image/x-png
Size: 21971 bytes
Desc: attachement_2.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20101014/4a847d18/attachment-0001.png>
