[Gmsh] 2D time plots

[billy at dem.uminho.pt]

Hi,

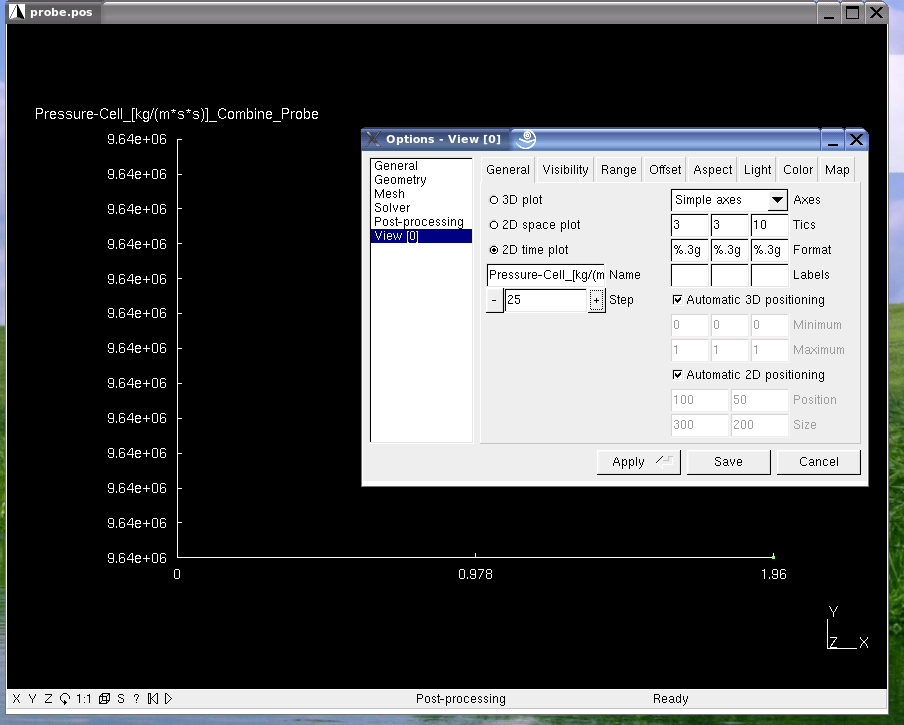

That is exactly what I want! I tried though I get only single points along the
axis. I send you a screen shot. You can see the plot type is set to "2D time
plot" and the "Step" is set to 25.

How do you set "Time Step" to 25? Is that the same as "Step"?


Billy.


Quoting Christophe Geuzaine <cag32 at case.edu>:

> billy at dem.uminho.pt wrote:
> > Hi,
> >
> > I send you the file. Instead of all the frames, I would like to have a
> single
> > graph with value vs time.
>
> Maybe you only plotted the first time step (i.e., a single point),
> instead of all the time steps? If I choose "2D Time" as plot type and
> set "Time Step" to 25 I get the attached picture.
>
>
> >
> > Billy.
> >
> > Quoting Christophe Geuzaine <cag32 at case.edu>:
> >
> >> billy at dem.uminho.pt wrote:
> >>> Hi,
> >>>
> >>> I have a 3D plot with several time frames. Then I used "plugin probe"
> to
> >> probe a
> >>> point in the domain. Its value varies with time. So I still have
> several
> >> frames.
> >>> I want a single 2D plot with the value as a function of time. Then I
> tried
> >> 2D
> >>> time plot and 2D space plot but it did not work. What I ended up doing
> >> was
> >>
> >> Hi Billy - It should work... Could you re-apply the plugin, save the
> >> resulting view to a file (right-click on the view button, then Save as)
> >> and send it to me?
> >>
> >>
> >>
> >>> copying and pasting the values to use gnuplot.
> >>>
> >>> Any suggestions? Is this possible in gmsh?
> >>>
> >>>
> >>> Billy.
> >>> _______________________________________________
> >>> gmsh mailing list
> >>> gmsh at geuz.org
> >>> http://www.geuz.org/mailman/listinfo/gmsh
> >>>
> >>
> >> --
> >> Christophe Geuzaine
> >> Assistant Professor, Case Western Reserve University, Mathematics
> >> http://www.case.edu/artsci/math/geuzaine
> >>
> >>
> >
> >
> >
> > ------------------------------------------------------------------------
> >
> > _______________________________________________
> > gmsh mailing list
> > gmsh at geuz.org
> > http://www.geuz.org/mailman/listinfo/gmsh
>
>
> --
> Christophe Geuzaine
> Assistant Professor, Case Western Reserve University, Mathematics
> http://www.case.edu/artsci/math/geuzaine
>
>
>
>
