[Gmsh] 2D time plots

Christophe Geuzaine cag32 at case.edu
Tue Sep 26 01:00:40 CEST 2006


billy at dem.uminho.pt wrote:
> Hi,
>
> I send you the file. Instead of all the frames, I would like to have a single
> graph with value vs time.

Maybe you only plotted the first time step (i.e., a single point),

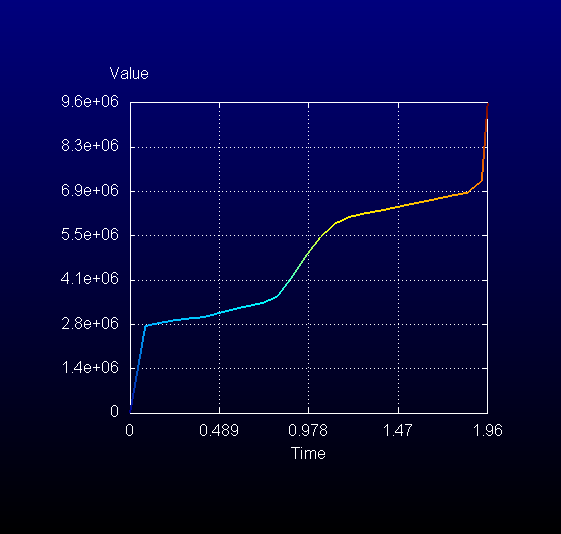

instead of all the time steps? If I choose "2D Time" as plot type and
set "Time Step" to 25 I get the attached picture.


>
> Billy.
>
> Quoting Christophe Geuzaine <cag32 at case.edu>:
>
>> billy at dem.uminho.pt wrote:
>>> Hi,
>>>
>>> I have a 3D plot with several time frames. Then I used "plugin probe" to
>> probe a
>>> point in the domain. Its value varies with time. So I still have several
>> frames.
>>> I want a single 2D plot with the value as a function of time. Then I tried
>> 2D
>>> time plot and 2D space plot but it did not work. What I ended up doing
>> was
>>
>> Hi Billy - It should work... Could you re-apply the plugin, save the
>> resulting view to a file (right-click on the view button, then Save as)
>> and send it to me?
>>
>>
>>
>>> copying and pasting the values to use gnuplot.
>>>
>>> Any suggestions? Is this possible in gmsh?
>>>
>>>
>>> Billy.
>>> _______________________________________________
>>> gmsh mailing list
>>> gmsh at geuz.org
>>> http://www.geuz.org/mailman/listinfo/gmsh
>>>
>>
>> --
>> Christophe Geuzaine
>> Assistant Professor, Case Western Reserve University, Mathematics
>> http://www.case.edu/artsci/math/geuzaine
>>
>>
>
>
>
> ------------------------------------------------------------------------
>
> _______________________________________________
> gmsh mailing list
> gmsh at geuz.org
> http://www.geuz.org/mailman/listinfo/gmsh


--
Christophe Geuzaine
Assistant Professor, Case Western Reserve University, Mathematics
http://www.case.edu/artsci/math/geuzaine



-------------- next part --------------
A non-text attachment was scrubbed...
Name: 2d.png
Type: image/png
Size: 9625 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20060925/fbe07d60/attachment.png>
