Axel Gerstenberger wrote:

> Hi,
>
> this is a question to the developers of Gmsh.
>
> I'am using the QUAD4 element for postprocessing and I was wondering,
> if  real bilinear interpolation is used for displaying the results.
>
Well, as you use it, the post pro does not use a bilinear interpolation.
It cuts your quad into 2 triangles and that's it.

There is a new functionality in gmsh for displaying high order FEM fields.

add

INTERPOLATION_SCHEME
{
  {.25,-.25,.25,-.25},
  {.25,.25,-.25,-.25},
  {.25,.25,.25,.25},
  {.25,-.25,-.25,.25}}
{ {0,0,0},
  {1,0,0},
  {0,1,0},
  {1,1,0}
};

after the last scalar quad of your map. Then, load your map and go into
the options -> Visibility

Maximum recursion level = 3 and target error = 0. Then apply and you

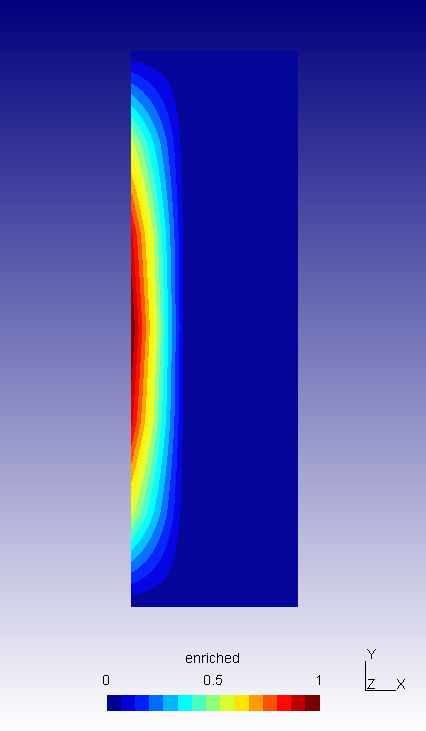

will get something like that :
