[Gmsh] Bug in Transfinite Surface Mesh

[Alexander Tismer]

Hello,

I try to mesh a surface bounded by 4 curves using the transfinite algorithm.
I end up in a mesh that has vertices outside of the surface. Is this is a bug?

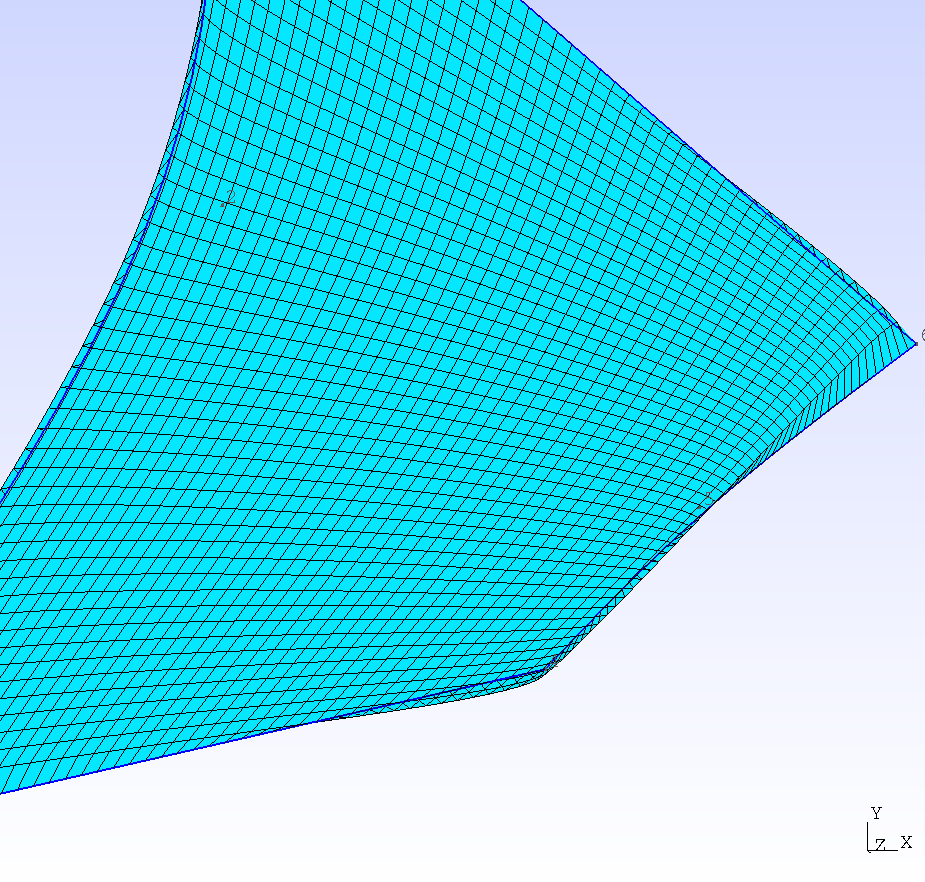

Please find attached my simple geo file and a picture of the mesh.

Best regards
Alex




--
