[Gmsh] Bug in Transfinite Surface meshing

[Alexander Tismer]

Hello,

I try to mesh a surface bounded by 4 curves using the transfinite algorithm.
I end up in a mesh that has vertices outside of the surface. Is this is
a bug?

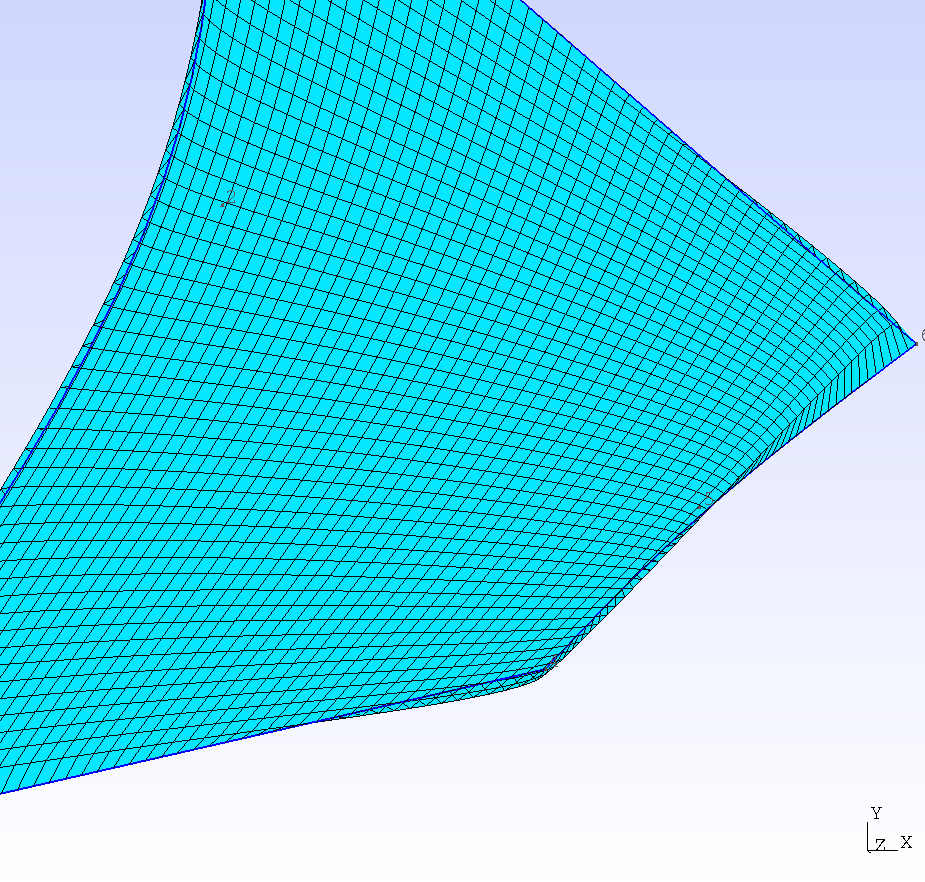

Please find attached my simple geo file and a picture of the mesh.

Best regards
Alex

--
Alexander Tismer

Institut für Strömungsmechanik
und Hydraulische Strömungsmaschinen
Universität Stuttgart
Pfaffenwaldring 10
70550 Stuttgart

Tel.:   +49 (0) 711 / 685 63007
Fax:    +49 (0) 711 / 685 63255
eMail: alexander.tismer at ihs.uni-stuttgart.de
http://www.ihs.uni-stuttgart.de
