Hi Christophe and Gmsh team,

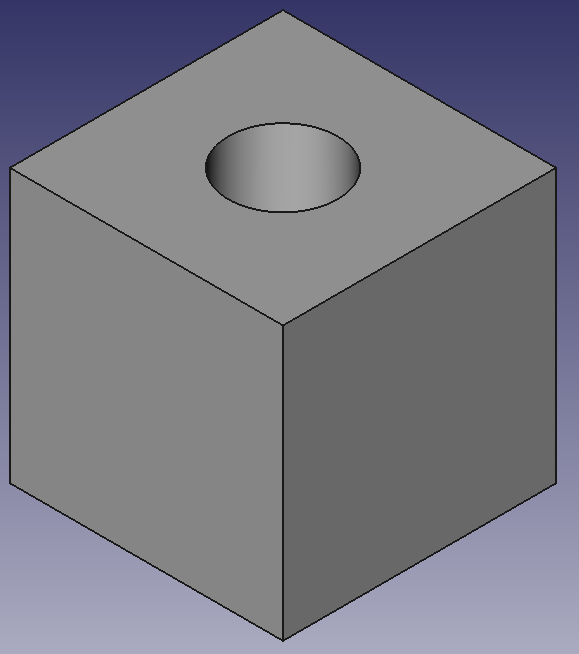

I've been trying to model a simple cube with a cylindrical hole that is
NOT through-going (i.e., its depth is smaller than the depth of the
cube), as shown in the attached picture. The Extrude command doesn't
seem to work since it will extrude both surfaces (exterior and interior
-- hole) at the same time. I know I can define all the surfaces, surface
loops, and volumes manually, but is there a better way of defining
something like this in Gmsh?

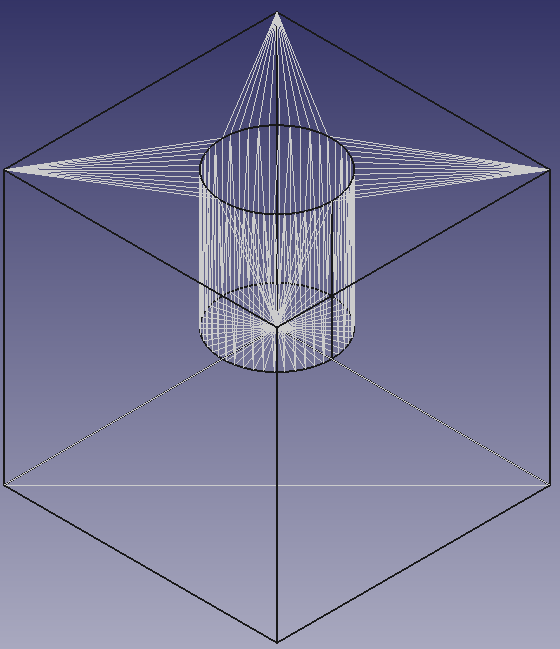

I also tried to use the Compound Volume command by first defining two
volumes from Extrude and then trying to combine them but I'm getting
errors for the Compound Volume visualization (Error: Cannot evaluate
bounds on GRegion Compound) and when I mesh the geometry, the actual
shared interfaces are still existing, although by the notion of compound
from the documentation, the internal interfaces should be neglected.
Here is the geometry file:

    // Characteristic length (==> element size)
    cl_external   = 25;
    cl_excavation = 5;

    // External boundaries
    Point(1)      = {-127, 0.0, -127, cl_external};
    Point(2)      = {+127, 0.0, -127, cl_external};
    Point(3)      = {+127, 0.0, +127, cl_external};
    Point(4)      = {-127, 0.0, +127, cl_external};
    Line(1)       = {1, 2};
    Line(2)       = {2, 3};
    Line(3)       = {3, 4};
    Line(4)       = {4, 1};
    Line Loop(1)  = {1, 2, 3, 4};

    // Excavation boundaries
    Point(5)      = {0.0, 0.0, 0.0, cl_excavation};
    Point(6)      = {19.05, 0.0, 0.0, cl_excavation};
    Point(7)      = {0.0, 0.0, 19.05, cl_excavation};
    Point(8)      = {-19.05, 0.0, 0.0, cl_excavation};
    Point(9)      = {0.0, 0.0, -19.05, cl_excavation};
    Circle(5)     = {6, 5, 7};
    Circle(6)     = {7, 5, 8};
    Circle(7)     = {8, 5, 9};
    Circle(8)     = {9, 5, 6};
    Line Loop(2)  = {5, 6, 7, 8};

    //Using compound volumes
    Plane Surface(1) = {1};
    out1[] = Extrude {0.0, 76.2, 0.0}{Surface{1};};

    Plane Surface(2) = {1};
    out2[] = Extrude {0.0, -76.2, 0.0}{Surface{2};};

    Compound Volume(3) = {1, 2};


I also tried to create the geometry in CAD software and imported it as
iges, brep or step formats but for reason the hole is not there
completely. See for instances the iges file attached.

Can you kindly shed some light here? Am I doing something wrong? Or are
there Gmsh tricks/commands that I can use to achieve my goal?
