[Gmsh] combine two different msh-file in one window

?????? ??????? anzakhar at gmail.com
Wed Dec 1 10:59:43 CET 2010




Hi Christophe



Thanks, It works but not all cases.



My results are stored along with the mesh and I do File->Open for each file.

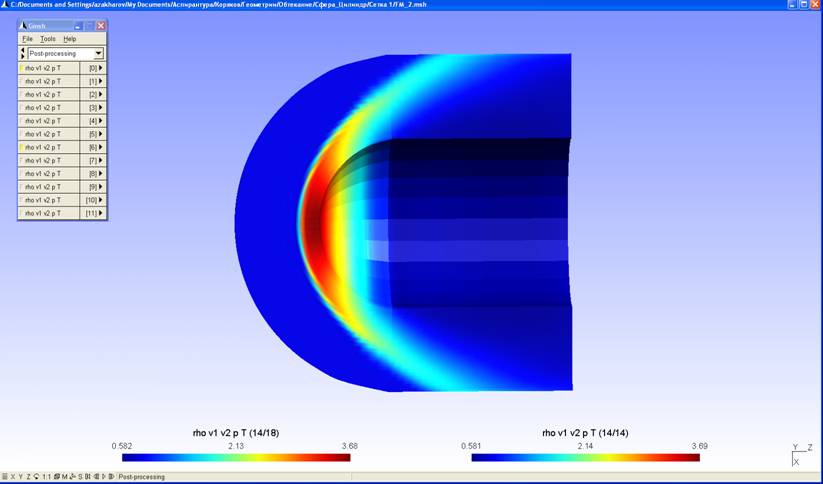

It work fine but only for compared time steps of results:

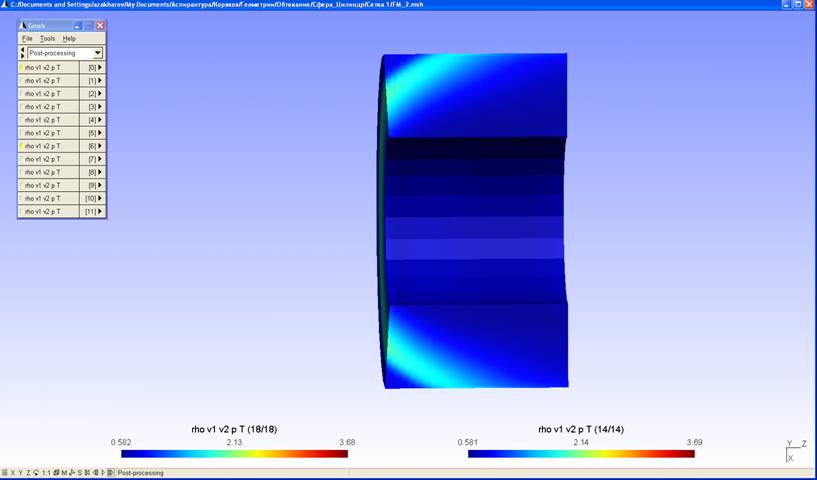

If time step of one part are greater than other part (18/18 and 14/18
respectively), output picture makes wrong:





Area with greater time steps makes invisible L



End steps of calculations are correspond of stationary mode and I want to
see this values in one picture.



Andrey







-----Original Message-----
From: Christophe Geuzaine [mailto:cgeuzaine at ulg.ac.be]
Sent: Wednesday, December 01, 2010 11:14 AM
To: ?????? ???????
Cc: gmsh at geuz.org
Subject: Re: [Gmsh] combine two different msh-file in one window





Hi Andrey,



If your results are obtained on the same mesh, just "File->Open" the

mesh, then "File->Merge" the two post-processing datasets. (Or, if you

saved the datasets along the mesh in a single .msh file, just "File->Open").



If your results are obtained on two separate meshes, just "File->Open"

the first mesh, "File->Merge" the first dataset; then "File->Open" the

second mesh, followed by "File->Merge" with the second dataset.

(If the results are stored along with the mesh, just "File->Open" each one.)



File->Open creates a new model; File->Merge merges data into the current

model.



By default, Gmsh only shows the current model. To show more use e.g.

Tools->Visibility->Tree Browser.



Christophe



On 01/12/10 08:55, ?????? ??????? wrote:

> Hi, Mikhail.

>

> Thanks for your answer.

>

> I think that GMSH function "Merge" or something like could help me.

>

> I don't want to interpolate results between time steps with GMSH. I want

> to visualize results for two different part of one computational area

> which correspond stationary mode.

>

> I calculate gas flow in one part, than use this output values as input

> values for calculate other part of area. After calculating all part of

> areas I want to visualize values in one picture.

>

> Andrey

>

> *From:*gmsh-bounces at ace20.montefiore.ulg.ac.be

> [mailto:gmsh-bounces at ace20.montefiore.ulg.ac.be] *On Behalf Of *Mikhail

> Titov

> *Sent:* Tuesday, November 30, 2010 3:42 AM

> *To:* gmsh at geuz.org

> *Subject:* Re: [Gmsh] combine two different msh-file in one window

>

> Andrey:

>

> Why would you like to visualize results in a single GMSH window? You can

> visualize each result independently using the same value range to get

> the same color scales and then stack images together.

>

> I doubt that you can interpolate results between time steps with GMSH.

> I'd adjust solver's time stepping such that you get an output at least

> every second/minute/hour/whatever or just at certain check points for

> both objects so your solver won't step over.

>

> If you really want to see both objects in a single GMSH window, I'd use

> something like perl to combine both mesh files section by section. Once

> you know number of nodes and elements in the first file, you can apply

> necessary offsets to those from the second file.

>

> Alternatively, you may consider adjusting your solver and dealing with

> both volume. You can still distinguish internally between them by using

> numerous tags for elements.

>

> Mikhail

>

> *From:*gmsh-bounces at ace20.montefiore.ulg.ac.be

> [mailto:gmsh-bounces at ace20.montefiore.ulg.ac.be] *On Behalf Of *??????

> ???????

> *Sent:* Friday, November 26, 2010 5:57 AM

> *To:* gmsh at geuz.org

> *Cc:* baumkorik at yandex.ru

> *Subject:* [Gmsh] combine two different msh-file in one window

>

> Dear GMSH community.

>

> Help me, please.

>

> May I combine and view two different *.msh-files with my post-processing

> results in one GMSH-window?

>

> This *.msh-files contains mesh, which correspond 2 different contacting

> volumes of one large geometrical area.

>

> Post-processing result in this *.msh-files contains different

> time-step's results (but end time is equal) and different range of value

> of output parameter.

>

> If yes, May I use only GMSH-interface commands or I must to write some

> script ?

>

> Thanks for your reply.

>

> Zakharov Andrey

>

> PhD student

>

> BMSTU

>

>

>

> _______________________________________________

> gmsh mailing list

> gmsh at geuz.org

> http://www.geuz.org/mailman/listinfo/gmsh





--

Prof. Christophe Geuzaine

University of Liege, Electrical Engineering and Computer Science

http://www.montefiore.ulg.ac.be/~geuzaine
