[Gmsh] Gmsh: problem for ruled surface with BSPline

[Regis Duvigneau]

Hi,

When a ruled surface is generated with a BSpline as boundary, some
triangles at other boundaries are strongly stretched, whatever the
algorithm used, yielding a computational grid of very poor quality.

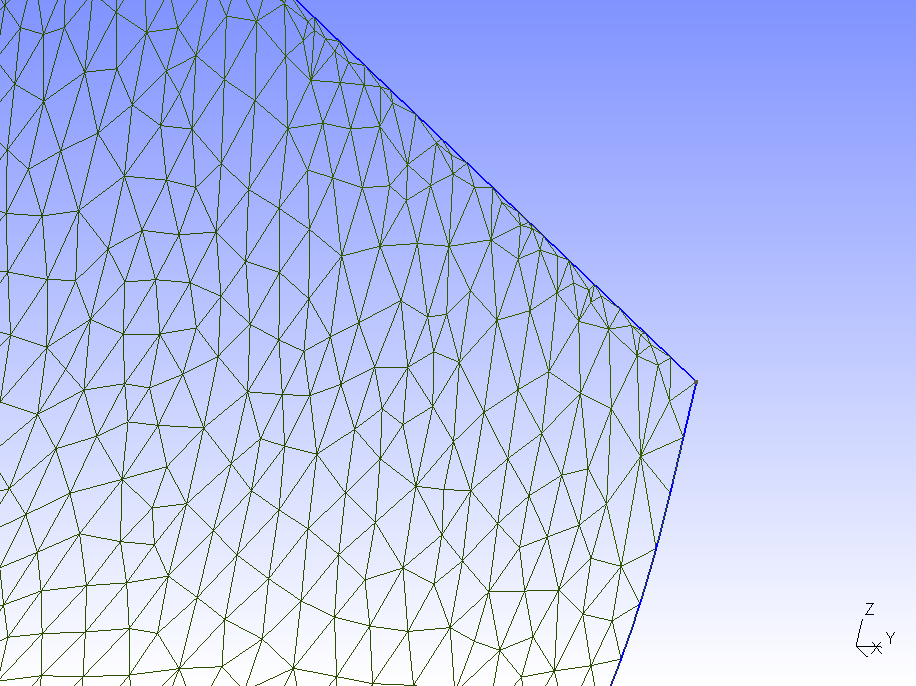

(see attached geo file and figure).

Does anyone has a solution to correct this ?


Thanks in advance.

Régis Duvigneau



-----------------------------------------------------------------
Regis Duvigneau
Permanent Research Associate
INRIA Sophia Antipolis - OPALE Project-Team
-----------------------------------------------------------------
2004 route des lucioles, 06902 Sophia-Antipolis
tel: (33)4 92 38 71 77
fax:(33)4 92 38 79 80
-----------------------------------------------------------------
http://www-sop.inria.fr/members/Regis.Duvigneau
