Hello fellow Gmsh users!

I'm new with Gmsh and trying to complete a simple procedure of meshing
an impeller with complete volume, with no holes. Unfortunately, my
meshing does not work properly for some reason.
Here are my steps:
1. Open a new geo file :example.geo
2. File->Merge->Choose the STEP file *provided in the attachment*
3. Elementary Entities ->Add->New->Volume

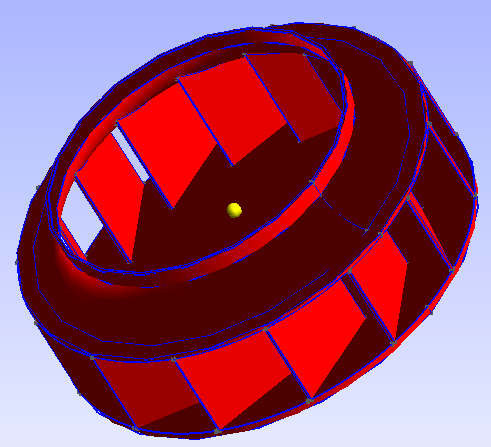

4. Click on the impeller, and it turns ALL red, no holes, so I press
'e'->'q'

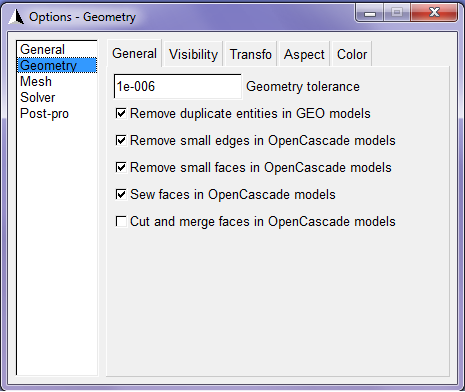

5. Check the options: Tools->Options->Geometry: Include "sew faces"

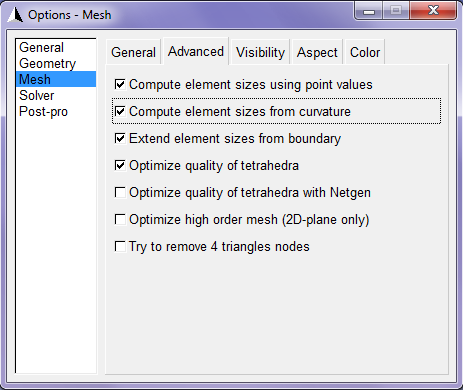

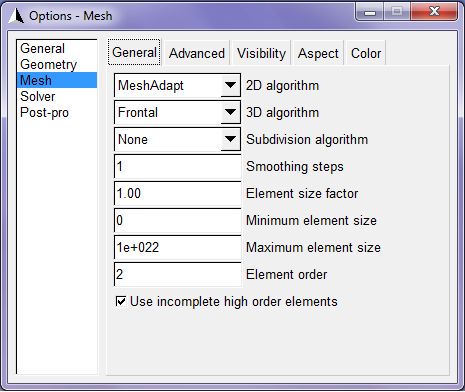

6.  Check the options: Tools->Options->Mesh: Check Frontal, None,
1,1.00,0,1e+022,2......Also under Mesh Advanced include 'optimize the
quality of tetrahedra'

Press Mesh-> 3D and I get a very not dense meshing and the manual says I
will get dense mesh( File: according to manual) which I can further
process with calculix, translate to inp file, then include measurements
of the impeller, then run the inp file, and then do the post processing.

All files are included above, and any help or hint is appreciated. If
you need any further info, I can send more pictures.

Thanks in advance and hope to hear from you guys soon!

Elvin
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment.html>
-------------- next part --------------

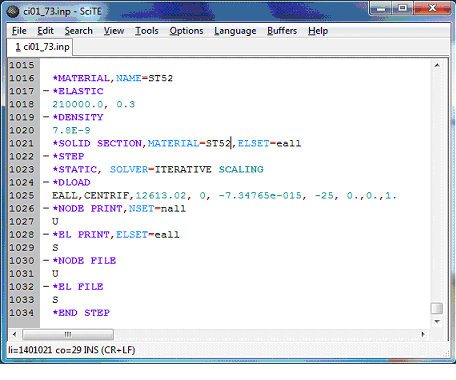

A non-text attachment was scrubbed...
Name: calculix processing.png
Type: image/png
Size: 33813 bytes
Desc: calculix processing.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: option1.png
Type: image/png
Size: 33960 bytes
Desc: option1.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: option2.png
Type: image/png
Size: 34599 bytes
Desc: option2.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Option3.png
Type: image/png
Size: 34389 bytes
Desc: Option3.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment-0003.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Impeller.png
Type: image/png
Size: 29666 bytes
Desc: Impeller.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment-0004.png>
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: Boundaries.txt
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment.txt>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 1385_Laufrad_1000.stp
Type: application/octet-stream
Size: 381549 bytes
Desc: 1385_Laufrad_1000.stp
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment.stp>
-------------- next part --------------

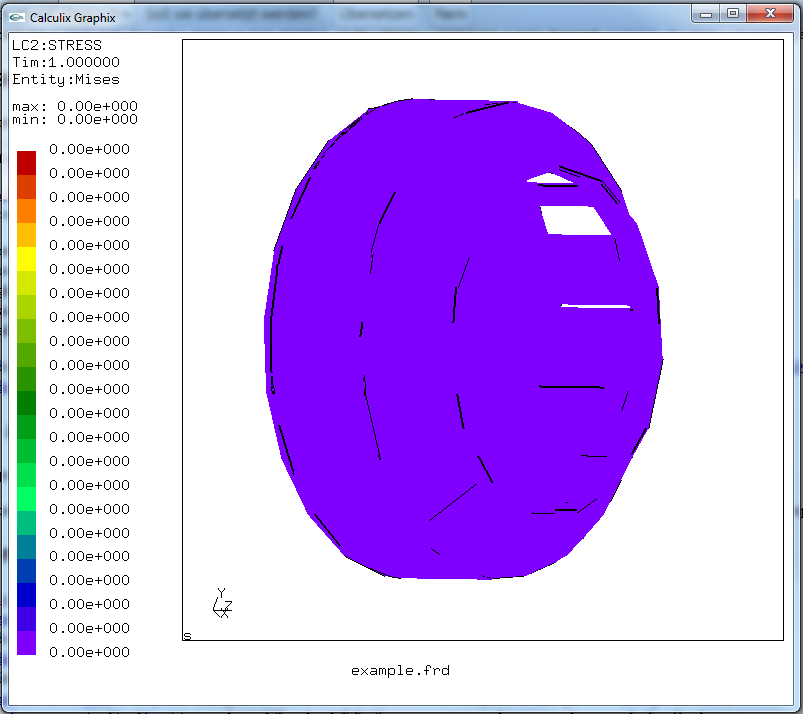

A non-text attachment was scrubbed...
Name: after calculation.png
Type: image/png
Size: 85782 bytes
Desc: after calculation.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100729/1a577b2c/attachment-0005.png>
-------------- next part --------------

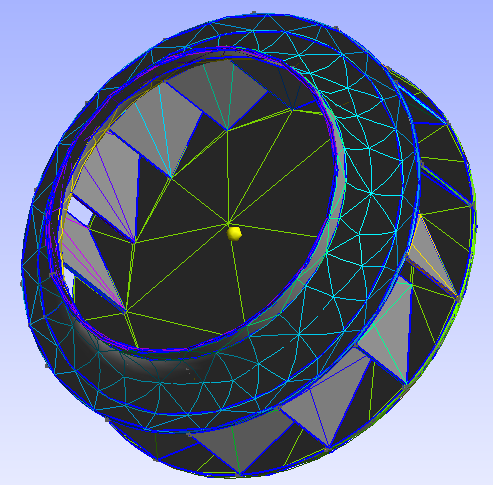

A non-text attachment was scrubbed...
