[Gmsh] surface reparametrization examples

[Pierre JUILLARD]

Dear M. Remacle,

I found on the web your presentation:
http://www-rocq.inria.fr/who/Frederic.Alauzet//tetSlides/Remacle.pdf
(back to 2007)

I am really impressed by pictures on p83 and p86 that I also enclose in the
mail.
Has the use of FFT to reparametrize surface been integrated in GMSH?

Also, I wonder how to obtain the quad mesh illustrated p90 with gmsh?
Simply asking for a "All Quads" as "Subdivision algorithm" in
"Options\Mesh\General" usually doesn't give back such a mesh.
Coudl you please point out the other parameters to adjust for such a
meshing?

I thank you in advance for your advices.
Bests,

Pierre
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100719/bead8028/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

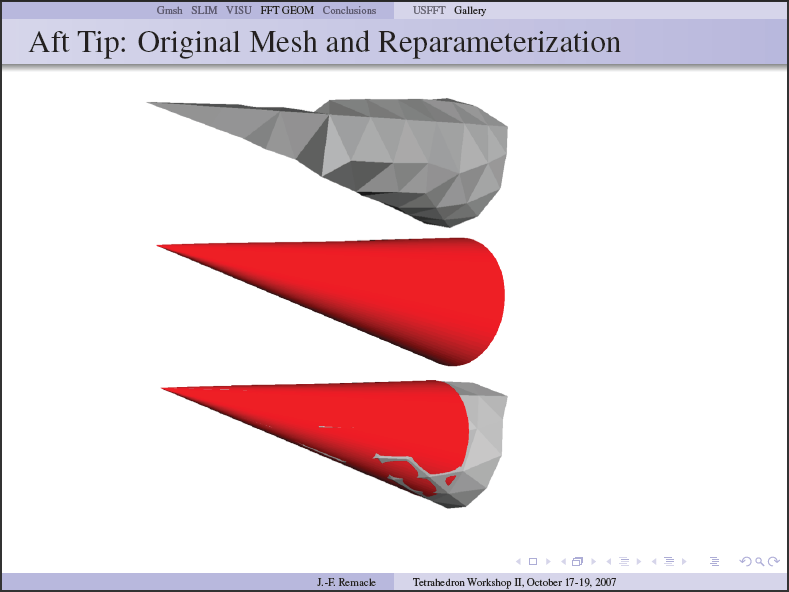

Name: p83.png
Type: image/png
Size: 78062 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100719/bead8028/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

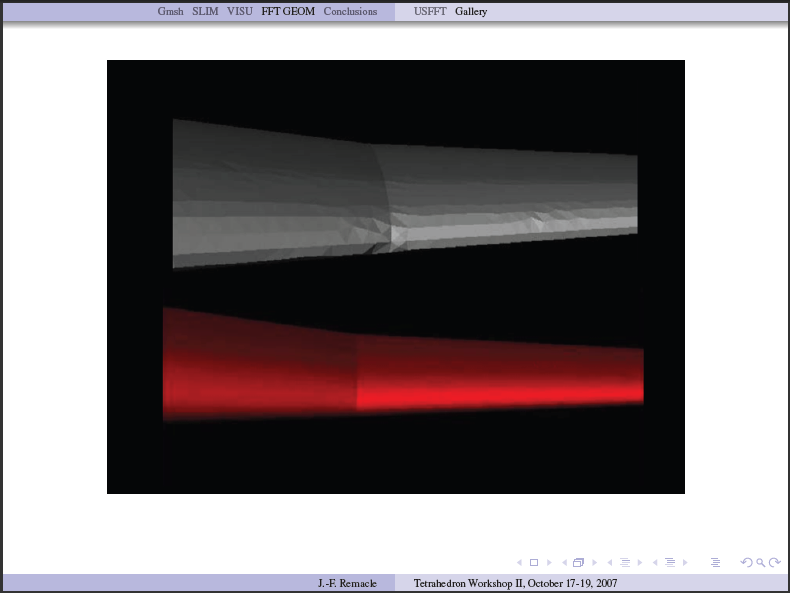

Name: p86.png
Type: image/png
Size: 75137 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100719/bead8028/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...

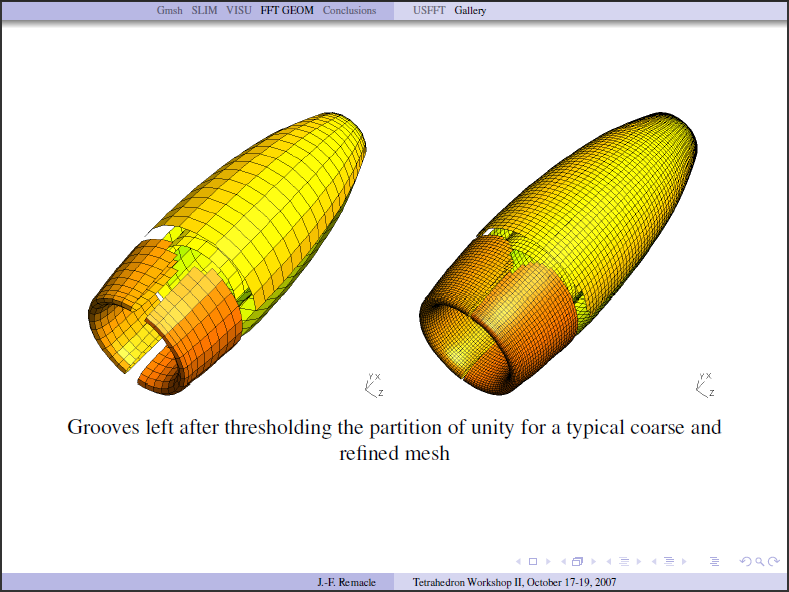

Name: p90.png
