[Gmsh] gmsh segfaulting on simple file

[Eric Nutsch]

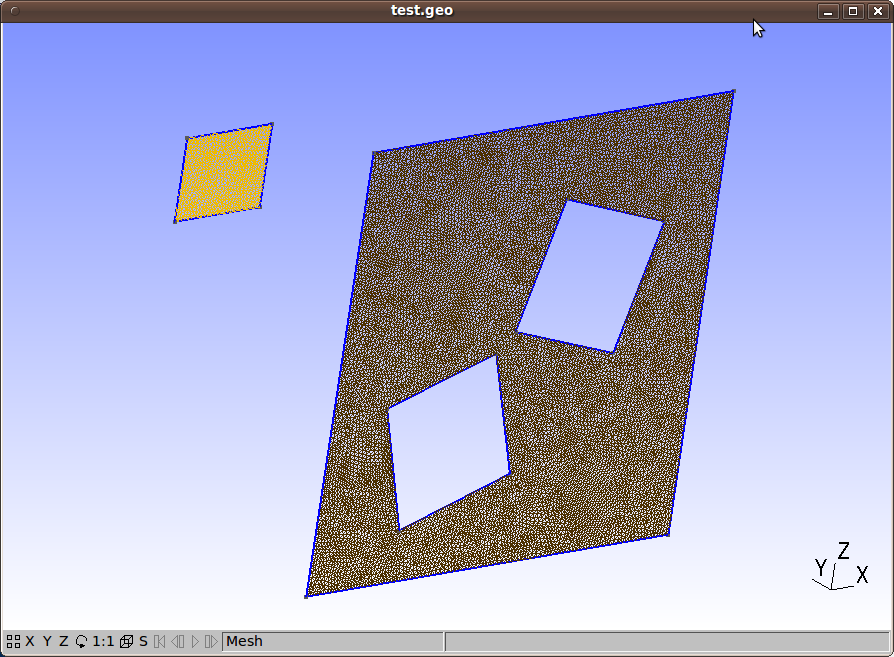

I got it to mesh in 2D with no problems... Image attached.

Ubuntu 9.10
Gmsh 2.3.1 (direct download binary)

Give it another go and let me know if its still not working.

Eric



On Tue, Jun 1, 2010 at 12:54 PM, Crni Gorac <cgorac at gmail.com> wrote:
> Could someone please advise what is wrong with the following .geo file:
>
> /* ------------------------------------------------------------------------------
> */
>
> lc = 5.0;
>
> Point (1) = { 552.8, 0.0, 0.0, lc };
> Point (2) = { 0.0, 0.0, 0.0, lc };
> Point (3) = { 0.0, 0.0, 559.2, lc };
> Point (4) = { 549.6, 0.0, 559.2, lc };
> Point (5) = { 130.0, 0.0, 65.0, lc };
> Point (6) = { 82.0, 0.0, 225.0, lc };
> Point (7) = { 240.0, 0.0, 272.0, lc };
> Point (8) = { 290.0, 0.0, 114.0, lc };
> Point (9) = { 423.0, 0.0, 247.0, lc };
> Point (10) = { 265.0, 0.0, 296.0, lc };
> Point (11) = { 314.0, 0.0, 456.0, lc };
> Point (12) = { 472.0, 0.0, 406.0, lc };
> Point (13) = { 343.0, 548.8, 227.0, lc };
> Point (14) = { 343.0, 548.8, 332.0, lc };
> Point (15) = { 213.0, 548.8, 332.0, lc };
> Point (16) = { 213.0, 548.8, 227.0, lc };
>
> Line (1) = { 1, 2 };
> Line (2) = { 2, 3 };
> Line (3) = { 3, 4 };
> Line (4) = { 4, 1 };
> Line (5) = { 5, 6 };
> Line (6) = { 6, 7 };
> Line (7) = { 7, 8 };
> Line (8) = { 8, 5 };
> Line (9) = { 9, 10 };
> Line (10) = { 10, 11 };
> Line (11) = { 11, 12 };
> Line (12) = { 12, 9 };
> Line (13) = { 13, 14 };
> Line (14) = { 14, 15 };
> Line (15) = { 15, 16 };
> Line (16) = { 16, 13 };
>
> Line Loop (17) = { 1, 2, 3, 4 };
> Line Loop (18) = { -5, -6, -7, -8 };
> Line Loop (19) = { -9, -10, -11, -12 };
> Line Loop (20) = { 13, 14, 15, 16 };
>
> Plane Surface (21) = { 17, 18, 19 };
> Plane Surface (22) = { 20 };
>
> Physical Surface (23) = { 21 };
> Physical Surface (24) = { 22 };
>
> /* ------------------------------------------------------------------------------
> */
>
> I'm trying to use gmsh to create a mesh on some simple geometry
> (rectanlge with two holes in it, and then another rectangle), and gmsh
> in both GUI and command line mode is just segfaulting when I run 2D
> meshing.  I tried with both 2.4.2 version, and latest snapshot, built
> from source, on 64-bit Linux...
>
> Thanks.
>
> _______________________________________________
> gmsh mailing list
> gmsh at geuz.org
> http://www.geuz.org/mailman/listinfo/gmsh
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: test.png
Type: image/png
Size: 79222 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20100601/0dc0fb8c/attachment.png>
