[Gmsh] Interfacing a boundary layer with a tetrahedral farfield.

Eric Nutsch ericnutsch at gmail.com
Wed Feb 17 04:00:29 CET 2010


Hello,


I have successfully created a boundary layer mesh via the Extrude

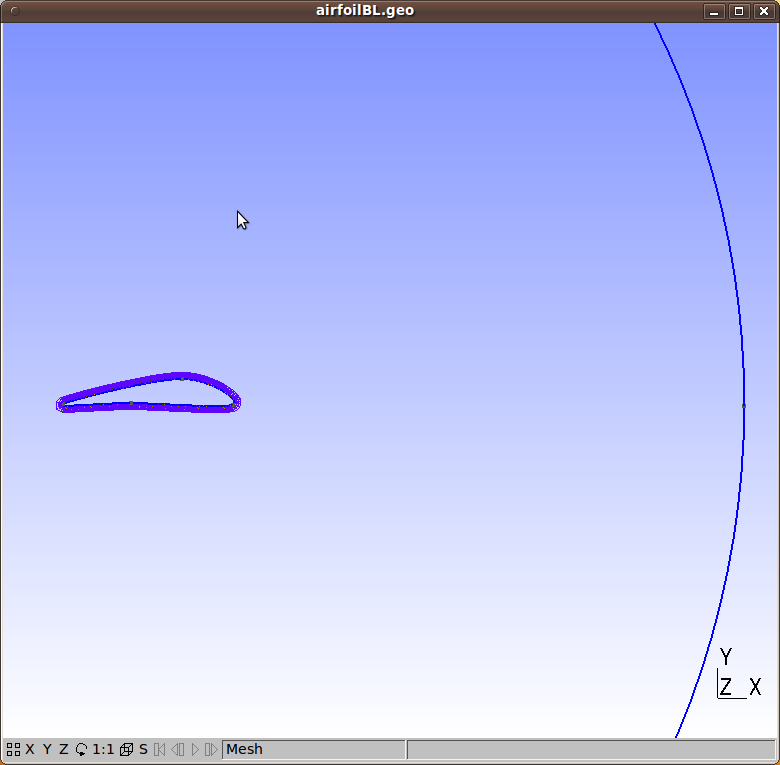

function. The mesh is psudo 2d(one cell deep). Here is a image of it:
http://www.boteinnovations.com/image/airfoilBL.png
How can I now create a tetrahedral far field that attaches to the
outermost cells in the boundary layer?
I have been able to get the created surfaces from the extrude command;
"tmp[] = Extrude {... ", But I have not had any success interfacing
them.

Is what I am attempting possible? Suggestions?


Thanks for the help!


Eric Nutsch
