[Gmsh] STEP file cleaning / small edges
Jean-Francois Remacle
jean-francois.remacle at uclouvain.be
Wed Jun 10 17:19:27 CEST 2009
Le 09-juin-09 à 15:50, Xavier Mencaglia a écrit :
> Hi,
>
>
> I have a CAD model in the Step format and I would like to mesh it in
> gmsh. But the problem is that I have some small edges in the CAD which
> involve that some degenerated elements are created during the
> meshing. I
> tried the Geometry.tolerance option to see whether the step file was
> automatically improved by gmsh or not and gmsh is able to suppress the
> small edges but without merging the nodes (closing th gaps left by the
> suppressed edge). Therefore the geometry is no longer meshable.
>
We use the cad cleaning features of opencascade. Maybe we use them
wrongly, but, apart of face sewing, we do not get any good results
from this.
> I attached an example where some edges are too small (line 101 107 for
> instance). The tolerance is set to 4.0 to suppress the small edges.
> What could you advise me to clean this step file keeping in mind
> that I
> would like to do that automatically because I'm dealing with
> optimisation of structures.
>
We have something "in the pipe" that could help you on that. It is
indeed possible
to reparametrize some of the faces/edges of the model in order to remove
those small features. This is NOT documented and the work is in
progress.
So, imagine your file is called new.stp, you create a file calle,
let's say new.geo
You add those lines into new.geo
Merge "new.stp";
Compound Surface(100000) = {35} Boundary {{},{},{},{}};
Compound Line(200000) = {102,101};
It creates a new surface 100000, replacing 35 and it merges, into that
surface,
Line 102 and 101 -> new line 200000
do gmsh new.geo -saveall -clscale .05 -2
and you get a nice mesh (see the figures).
JF
-------------- next part --------------
A non-text attachment was scrubbed...

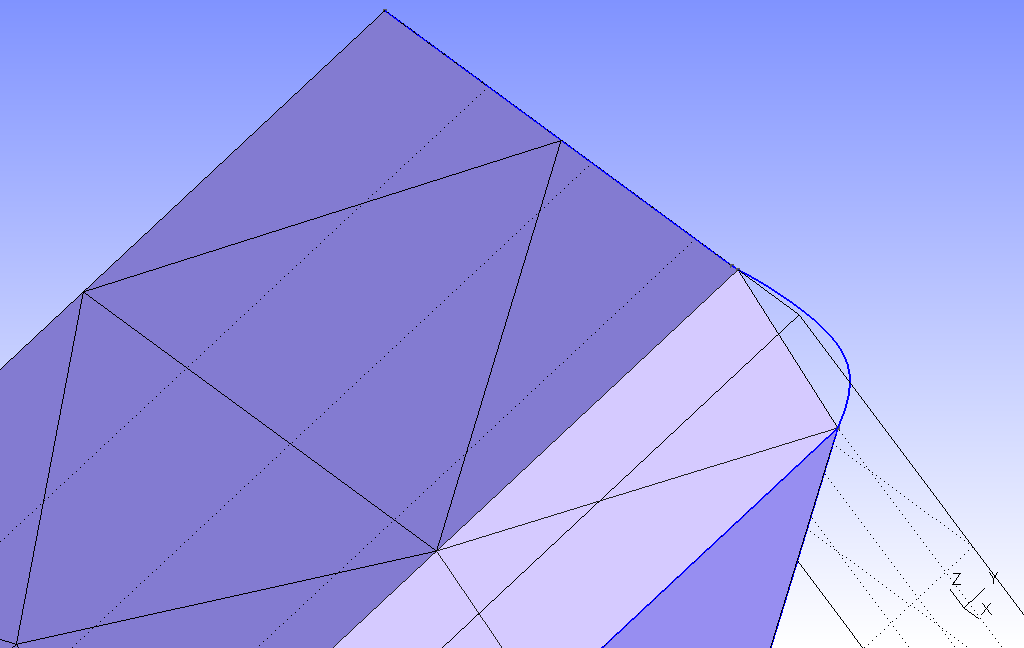

Name: s100000.png
Type: image/png
Size: 22667 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090610/6516e19d/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

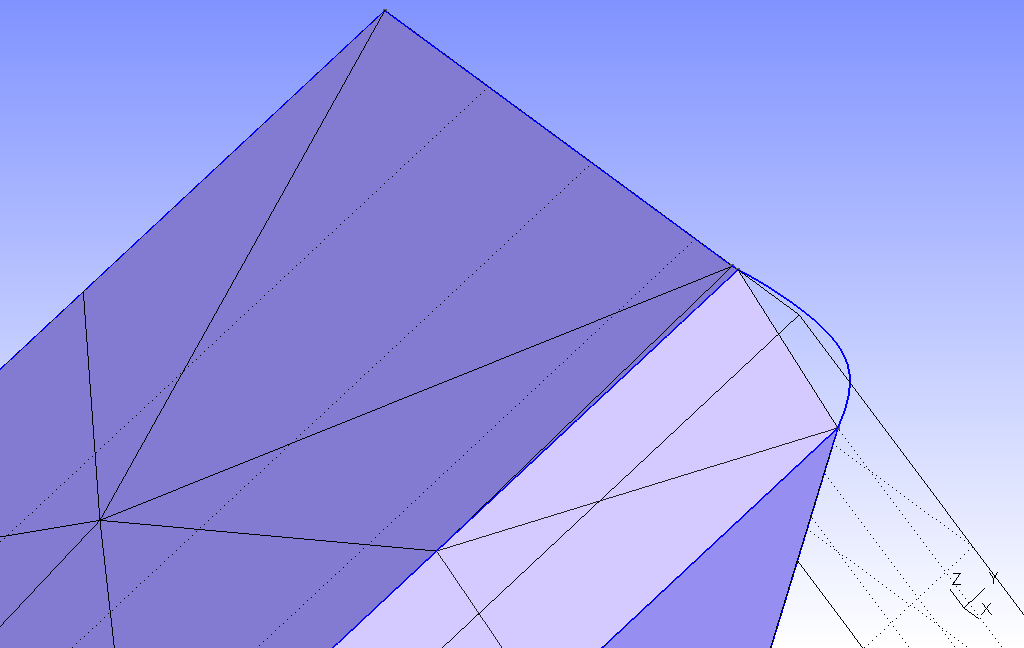

Name: s35.png
Type: image/png
Size: 23467 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090610/6516e19d/attachment-0001.png>
-------------- next part --------------
> Thanks in advance
>
> Kind regards,
>
> Xavier
> --
> ------------------------------------------------------------------------
>
> *Ir Xavier Mencaglia
> Research Engineer
> Multiscale Materials Modeling Group
> Cenaero - Research Center
> Building Eole, 2nd floor
> Rue des Frères Wright, 29
> B-6041, Gosselies *
>
> ------------------------------------------------------------------------
>
> *Phone: +32(0) 71 91 93 69
> Fax: +32(0) 71 91 93 31
>
> Website: www.cenaero.com
>
>
> <http://www.cenaero.com/>*
> Privileged/Confidential Information may be contained in this
> message. If
> you are not the addressee indicated in this message (or responsible
> for
> delivery of the message to such person), you may not print, retain,
> copy
> nor disseminate this message or any part of it to anyone and you
> should
> notify the sender by reply email and destroy this message. Neglecting
> this clause could be a breach of confidence. Please advise immediately
> if you or your employer does not consent to Internet email for
> messages
> of this kind. Opinions, conclusions and other information in this
> message that are not related to the official business of my firm shall
> be understood as neither given nor endorsed by it.
>
> **
>
> ------------------------------------------------------------------------
