[Gmsh] Boundary Layer Surface Orientation

[Hackbarth, Axel]

I want to use the experimental boundary layer command (as described
here: http://www.geuz.org/pipermail/gmsh/2007/002599.html)
I try meshing a 3D-wing which has been extruded from one surface. This
original surface has always the opposite orientation as all other

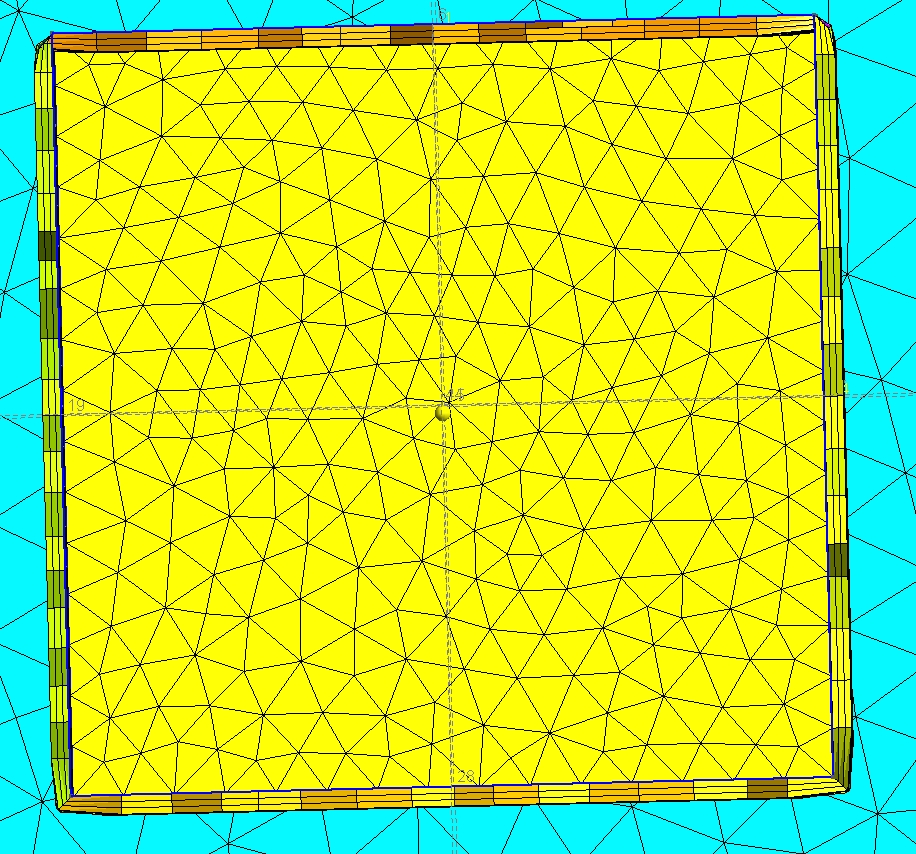

surfaces, at least if I look at the boundary layer (the top BL of the
picture attached).
How can I change surface orientation? The negative of the surface ID (as
it is done for surface loops) could not be identified by the BL command.

Cheers,
Axel
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080718/27710cd3/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Clipboard02.jpg
Type: image/jpeg
Size: 627165 bytes
Desc: Clipboard02.jpg
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080718/27710cd3/attachment.jpg>
