[Gmsh] Mesh not displayed

[David Colignon]

Hi Bernhard,

your Line Loops are not correct. You should try to define it with the GUI.
For example you should have

Line Loop(145) = {109,111,110};
Line Loop(146) = {113,112,114};

instead of

Line Loop(145) = {109, 110, 111};
Line Loop(146) = {112, 113, 114};

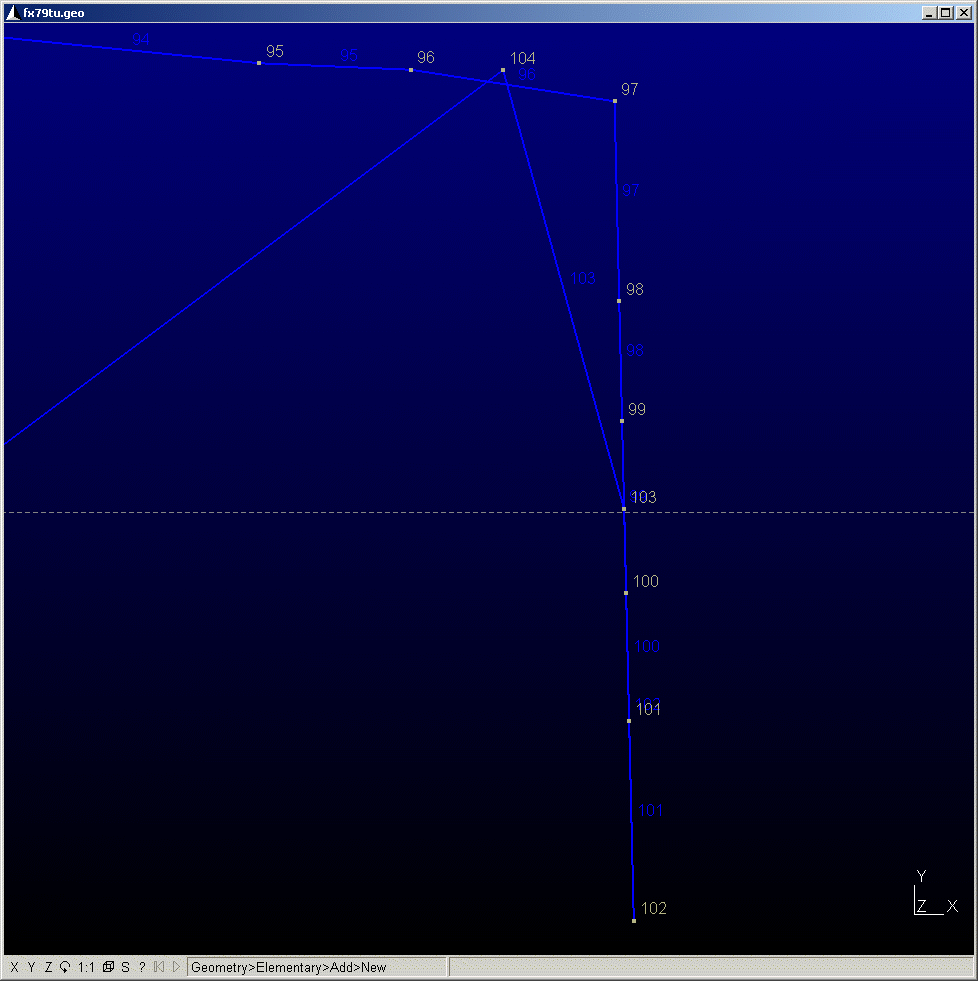

Moreover the end of your Line Loop 143 is really wrong, some of the lines are crossing (104 & 96 , 103 & 96) or superposed.

Cheers,

Dave



Bernhard Stoevesandt wrote:
> Hi Dave,
>
> well, i tried a bit, but didn't get any real change. So this is the
> version right now. Right now i'm using gmsh-1.65.0 on a SuSE 9.2. Any
> idea? I mean it would be good to have a look at the mesh to know if ist
> suits.
>
> Bernhard
>
>
> David Colignon schrieb:
>> Can you send the .geo file you use to generate the mesh ?
>>
>> Dave
>>
>>
>> Bernhard Stoevesandt wrote:
>>
>>> Hi Dave,
>>>
>>> well, that is the case. Unless the nodes and lines elements are
>>> exaclty in the same color as the backround, they are not displayed.
>>> Only 1D elements are displayed.
>>>
>>> yours
>>>
>>> Bernhard
>>>
>>> David Colignon schrieb:
>>>
>>>> Hi,
>>>>
>>>> in Options -> Mesh -> Visibility, you should activate the
>>>> visualization of nodes and lines elements
>>>>
>>>> Cheers,
>>>>
>>>> Dave
>>>>
>>>>
>>>> ------------------------------------------------------------------------
>>>>
>>>>
>>>>
>>>> ------------------------------------------------------------------------
>>>>
>>>>
>>>
>>>
>>>
>>> ------------------------------------------------------------------------
>>>
>
>
>
> ------------------------------------------------------------------------
>
> //Gmesh input File created by Gmeshgen.pl
> //Inputfile was: fx79.new
>
> //FX 79-W-151 A
>
> Point(1) = {0.76238410571534,-0.170613950129372, 0, 0.00178217720430509};
> Point(2) = {0.760625566276542,-0.170324649887865, 0, 0.00231129370656559};
> Point(3) = {0.757777785914857,-0.170226481049684, 0, 0.00423445688177033};
> Point(4) = {0.752199017391988,-0.169478615473365, 0, 0.00648493738376323};
> Point(5) = {0.744909864349026,-0.168603444986943, 0, 0.0083978689761272};
> Point(6) = {0.73550557234467,-0.167627749240225, 0, 0.010545371375407};
> Point(7) = {0.723924400706657,-0.166498748929118, 0, 0.0126591209686992};
> Point(8) = {0.710330393088487,-0.164940050555535, 0, 0.0146120506649651};
> Point(9) = {0.694918142659663,-0.162937135158199, 0, 0.0164460605403637};
> Point(10) = {0.677713705748761,-0.160692305721884, 0, 0.0182418674771994};
> Point(11) = {0.658750347912678,-0.158146149939816, 0, 0.0199858190189855};
> Point(12) = {0.638108292557563,-0.155293871375423, 0, 0.0216418054369297};
> Point(13) = {0.615881858518234,-0.15216588344758, 0, 0.0231983632237633};
> Point(14) = {0.592174847689431,-0.148753621564225, 0, 0.0246542624760044};
> Point(15) = {0.567082561063729,-0.14509770115723, 0, 0.0260060259005232};
> Point(16) = {0.540714063792612,-0.141201055557917, 0, 0.0272540449873107};
> Point(17) = {0.513165242396863,-0.137094288106721, 0, 0.0283890146647498};
> Point(18) = {0.484563354766974,-0.132784257445829, 0, 0.0293951364686991};
> Point(19) = {0.455039717857604,-0.12827841667562, 0, 0.0302759936781806};
> Point(20) = {0.42471470546612,-0.123581956121255, 0, 0.031029590355734};
> Point(21) = {0.393725253490937,-0.118693096127647, 0, 0.0316445715799881};
> Point(22) = {0.362209530470757,-0.113651259231154, 0, 0.0321303318252151};
> Point(23) = {0.330281244502907,-0.108480818403235, 0, 0.0324778449799395};
> Point(24) = {0.298100891044155,-0.103195447018138, 0, 0.0326821352628844};
> Point(25) = {0.265791958914224,-0.0978215545624647, 0, 0.0327525815140037};
> Point(26) = {0.233501588613713,-0.0923392732526693, 0, 0.0326815213044965};
> Point(27) = {0.201368615201632,-0.0867779987947651, 0, 0.0324751368884148};
> Point(28) = {0.169524989686984,-0.0811351287760214, 0, 0.0321228437350303};
> Point(29) = {0.138132259800717,-0.0754346432898953, 0, 0.0316285835196845};
> Point(30) = {0.107309647667701,-0.069701826572798, 0, 0.0310049424510883};
> Point(31) = {0.0771904135733707,-0.0639752714055532, 0, 0.0302498721106691};
> Point(32) = {0.0478995159612321,-0.0582713715745305, 0, 0.0293734774216893};
> Point(33) = {0.0195562758859805,-0.0525949868572254, 0, 0.0283745006210834};
> Point(34) = {-0.00770936153016864,-0.0469531611978931, 0, 0.0272504632789876};
> Point(35) = {-0.0337723427755809,-0.0413517921454193, 0, 0.0260161499136597};
> Point(36) = {-0.0585240056401949,-0.0357624432007568, 0, 0.0246808518536269};
> Point(37) = {-0.0818594241904382,-0.0302068204593363, 0, 0.0232517885127849};
> Point(38) = {-0.10368353917907,-0.0246629293949951, 0, 0.0217457176698261};
> Point(39) = {-0.123910070917266,-0.0191051062782435, 0, 0.0201816450903615};
> Point(40) = {-0.142455487215075,-0.0134410204795462, 0, 0.0185957256983629};
> Point(41) = {-0.159250545137898,-0.0075182629265861, 0, 0.0169910274020686};
> Point(42) = {-0.174177695550069,-0.00125572002930655, 0, 0.0153422832364895};
> Point(43) = {-0.187144452559605,0.00526737543776425, 0, 0.0136812018400993};
> Point(44) = {-0.198151328781493,0.0119338987992764, 0, 0.0120744334240003};
> Point(45) = {-0.207223627303975,0.0186835787616369, 0, 0.0105899922817882};
> Point(46) = {-0.214341159669946,0.025589707889793, 0, 0.00930416578499193};
> Point(47) = {-0.219506167347519,0.0326624633343493, 0, 0.00858062594975876};
> Point(48) = {-0.222537949532771,0.0406668827811106, 0, 0.00747295794248276};
> Point(49) = {-0.22252865060087,0.0472995735895763, 0, 0.00655228717816023};
> Point(50) = {-0.219850519271069,0.053492933913428, 0, 0.00763847922396884};
> Point(51) = {-0.214160941722932,0.0600810800561119, 0, 0.00904054018934253};
> Point(52) = {-0.206745799352561,0.0659505333418063, 0, 0.0102582336902274};
> Point(53) = {-0.19734422693175,0.0718336771055008, 0, 0.0119514662413925};
> Point(54) = {-0.185908616731747,0.0776621515777053, 0, 0.0136832663365202};
> Point(55) = {-0.172481841033544,0.0832699736211246, 0, 0.0153698902260985};
> Point(56) = {-0.157160271017786,0.0885463934419708, 0, 0.0170160887688346};
> Point(57) = {-0.139992562893035,0.0934009120704514, 0, 0.0186235709813565};
> Point(58) = {-0.121069097614603,0.0977538245045352, 0, 0.0201683914813149};
> Point(59) = {-0.100479797147246,0.101512471901503, 0, 0.021655343099388};
> Point(60) = {-0.0783006530883111,0.104585785556119, 0, 0.0230713550995922};
> Point(61) = {-0.0546514347733569,0.106889358235939, 0, 0.0244036808572664};
> Point(62) = {-0.0296393071737121,0.108358314060052, 0, 0.0256555949856481};
> Point(63) = {-0.003378768308677,0.108877294319455, 0, 0.0268203618320309};
> Point(64) = {0.0240014037205022,0.108321300987422, 0, 0.0278936180432915};
> Point(65) = {0.0523583745032579,0.106513690853955, 0, 0.0288629965021405};
> Point(66) = {0.0815151401282385,0.103375556073687, 0, 0.0297274583838422};
> Point(67) = {0.111331239401008,0.0989580086475644, 0, 0.0305099631564411};
> Point(68) = {0.141705403988855,0.0933474184789497, 0, 0.0312137323427806};
> Point(69) = {0.172523567654043,0.0866013379778465, 0, 0.0318225324233312};
> Point(70) = {0.203662880595818,0.0787883878850717, 0, 0.032333344645476};
> Point(71) = {0.23500821838018,0.0699445337379836, 0, 0.0327262837994813};
> Point(72) = {0.46808028749575, 0.114249299660423, 0, 0.0329904857754958};
> Point(73) = {0.500953215862194, 0.110409178685854, 0, 0.0331299646570304};
> Point(74) = {0.533802944561982, 0.105828457608775, 0, 0.0331279662742695};
> Point(75) = {0.566489231459626, 0.100668580270475, 0, 0.0329896662113735};
> Point(76) = {0.598890821157628, 0.0950191733021564, 0, 0.0327072369188238};
> Point(77) = {0.630850995894532, 0.0889802670353692, 0, 0.0322822440229814};
> Point(78) = {0.662253826135494, 0.082621483323285, 0, 0.0317188594599337};
> Point(79) = {0.692949720918053, 0.0760152166224617, 0, 0.0309990981991766};
> Point(80) = {0.722808759179118, 0.0693219930800093, 0, 0.0301365808756236};
> Point(81) = {0.751713632258519, 0.062611606979464, 0, 0.0291342172605179};
> Point(82) = {0.779537053114931, 0.0560136825687447, 0, 0.0279869507002577};
> Point(83) = {0.806149031687001, 0.0495783830093086, 0, 0.0267059640369766};
> Point(84) = {0.831442462200574, 0.0434175495022355, 0, 0.0252980496627396};
> Point(85) = {0.855311682531253, 0.0376201628691741, 0, 0.0237714204771529};
> Point(86) = {0.877654304758468, 0.0322467244024125, 0, 0.0221338729829261};
> Point(87) = {0.898377643090641, 0.0273753410554742, 0, 0.0203933167086412};
> Point(88) = {0.917380385291332, 0.023006162135311, 0, 0.018563931129617};
> Point(89) = {0.934592253001948, 0.019191198772222, 0, 0.0166541380566129};
> Point(90) = {0.949934745548483, 0.0159595398322132, 0, 0.0146620361955077};
> Point(91) = {0.963322843794192, 0.0133214139105648, 0, 0.0126073728588636};
> Point(92) = {0.974710820738145, 0.0112766454488362, 0, 0.0104769769691141};
> Point(93) = {0.983980526893067, 0.00981024393008223, 0, 0.0083267236650995};
> Point(94) = {0.99119899271952, 0.0089362410623437, 0, 0.00614281167920628};
> Point(95) = {0.996188972109904, 0.00843532331700558, 0, 0.00392958974418019};
> Point(96) = {0.999033489539508, 0.00831385709093872, 0, 0.00335112607915894};
> Point(97) = {1.00285306297333, 0.00772112659503245, 0, 0.00292061446598259};
> Point(98) = {1.00294112673783, 0.00397216076785066, 0, 0.00300000000000038};
> Point(99) = {1.00299396499653, 0.0017227812715397, 0, 0.00273749999999863};
> Point(100) = {1.003069699834, -0.00150132933983304, 0, 0.00281250000000183};
> Point(101) = {1.00312606064328, -0.0039006674692377, 0, 0.00307500000000358};
> Point(102) = {1.00321412440778, -0.00764963329641949, 0, 0.00198650163147111};
> Point(103) = {1.00303381172327, 7.12646883030822e-05, 0, 0.00807402615317523};
> Point(104) = {1.000762139291406, 0.00831117377207522, 0, 0.00854731521277424};
> Point(105) = {20, 10, 0, 5};
> Point(106) = {-7, 10, 0, 5};
> Point(107) = {-7, -10, 0, 5};
> Point(108) = {20, -10, 0, 5};
> Point(109) = {2, 0.4, 0, 0.17};
> Point(110) = {1.83, 0.4, 0, 0.17};
> Point(111) = {2, 0.57, 0, 0.17};
> Point(112) = {2, -0.11, 0, 0.17};
> Point(113) = {1.83, -0.11, 0, 0.17};
> Point(114) = {2, -0.28, 0, 17};
>
> //wake quadrilaterals area
> Point(115) = {9, -1.8, 0, 0.6};
> Point(116) = {9.64541239892183, -1.8, 0, 0.645412398921833};
> Point(117) = {10.4270619946092, -1.8, 0, 0.781649595687331};
> Point(118) = {11.4357735849057, -1.8, 0, 1.0087115902965};
> Point(119) = {12.762371967655, -1.8, 0, 1.32659838274933};
> Point(120) = {14.4976819407008, -1.8, 0, 1.73530997304582};
> Point(121) = {16.7325283018868, -1.8, 0, 2.23484636118598};
> Point(122) = {20, -1.8, 0, 0.6};
> Point(123) = {20, -1.2, 0, 0.6};
> Point(124) = {20, -0.6, 0, 0.6};
> Point(125) = {20, 2.22044604925031e-16, 0, 0.6};
> Point(126) = {20, 0.6, 0, 0.6};
> Point(127) = {20, 1.2, 0, 0.6};
> Point(128) = {20, 1.8, 0, 0.6};
> Point(129) = {20, 2.4, 0, 0.6};
> Point(130) = {16.7325283018868, 2.4, 0, 2.23484636118598};
> Point(131) = {14.4976819407008, 2.4, 0, 1.73530997304582};
> Point(132) = {12.762371967655, 2.4, 0, 1.32659838274933};
> Point(133) = {11.4357735849057, 2.4, 0, 1.0087115902965};
> Point(134) = {10.4270619946092, 2.4, 0, 0.781649595687331};
> Point(135) = {9.64541239892183, 2.4, 0, 0.645412398921833};
> Point(136) = {9, 2.4, 0, 0.6};
> Point(137) = {9, 1.8, 0, 0.6};
> Point(138) = {9, 1.2, 0, 0.6};
> Point(139) = {9, 0.6, 0, 0.6};
> Point(140) = {9, 2.22044604925031e-16, 0, 0.6};
> Point(141) = {9, -0.6, 0, 0.6};
> Point(142) = {9, -1.2, 0, 0.6};
>
> //front points for grid connection
> Point(143) = {-7, 2.5, 0, 2.5};
> Point(144) = {-7, 1.25, 0, 1.25};
> Point(145) = {-7, 0, 0, 1.25};
> Point(146) = {-7, -1.25, 0, 1.25};
> Point(147) = {-7, -2.5, 0, 2.5};
>
>
>
> //now the list of lines
> Line(1) = {2,1};
> Line(2) = {3,2};
> Line(3) = {4,3};
> Line(4) = {5,4};
> Line(5) = {6,5};
> Line(6) = {7,6};
> Line(7) = {8,7};
> Line(8) = {9,8};
> Line(9) = {10,9};
> Line(10) = {11,10};
> Line(11) = {12,11};
> Line(12) = {13,12};
> Line(13) = {14,13};
> Line(14) = {15,14};
> Line(15) = {16,15};
> Line(16) = {17,16};
> Line(17) = {18,17};
> Line(18) = {19,18};
> Line(19) = {20,19};
> Line(20) = {21,20};
> Line(21) = {22,21};
> Line(22) = {23,22};
> Line(23) = {24,23};
> Line(24) = {25,24};
> Line(25) = {26,25};
> Line(26) = {27,26};
> Line(27) = {28,27};
> Line(28) = {29,28};
> Line(29) = {30,29};
> Line(30) = {31,30};
> Line(31) = {32,31};
> Line(32) = {33,32};
> Line(33) = {34,33};
> Line(34) = {35,34};
> Line(35) = {36,35};
> Line(36) = {37,36};
> Line(37) = {38,37};
> Line(38) = {39,38};
> Line(39) = {40,39};
> Line(40) = {41,40};
> Line(41) = {42,41};
> Line(42) = {43,42};
> Line(43) = {44,43};
> Line(44) = {45,44};
> Line(45) = {46,45};
> Line(46) = {47,46};
> Line(47) = {48,47};
> Line(48) = {49,48};
> Line(49) = {50,49};
> Line(50) = {51,50};
> Line(51) = {52,51};
> Line(52) = {53,52};
> Line(53) = {54,53};
> Line(54) = {55,54};
> Line(55) = {56,55};
> Line(56) = {57,56};
> Line(57) = {58,57};
> Line(58) = {59,58};
> Line(59) = {60,59};
> Line(60) = {61,60};
> Line(61) = {62,61};
> Line(62) = {63,62};
> Line(63) = {64,63};
> Line(64) = {65,64};
> Line(65) = {66,65};
> Line(66) = {67,66};
> Line(67) = {68,67};
> Line(68) = {69,68};
> Line(69) = {70,69};
> Line(70) = {71,70};
> Line(71) = {72,71};
> Line(72) = {73,72};
> Line(73) = {74,73};
> Line(74) = {75,74};
> Line(75) = {76,75};
> Line(76) = {77,76};
> Line(77) = {78,77};
> Line(78) = {79,78};
> Line(79) = {80,79};
> Line(80) = {81,80};
> Line(81) = {82,81};
> Line(82) = {83,82};
> Line(83) = {84,83};
> Line(84) = {85,84};
> Line(85) = {86,85};
> Line(86) = {87,86};
> Line(87) = {88,87};
> Line(88) = {89,88};
> Line(89) = {90,89};
> Line(90) = {91,90};
> Line(91) = {92,91};
> Line(92) = {93,92};
> Line(93) = {94,93};
> Line(94) = {95,94};
> Line(95) = {96,95};
> Line(96) = {97,96};
> Line(97) = {98,97};
> Line(98) = {99,98};
> Line(99) = {100,99};
> Line(100) = {101,100};
> Line(101) = {102,101};
> Line(102) = {103,102};
> Line(103) = {104,103};
> Line(104) = {1,104};
> Line(105) = {106,105};
> Line(106) = {143,106};
> Line(107) = {108,107};
> Line(108) = {122,108};
> Line(109) = {110,109};
> Line(110) = {111,110};
> Line(111) = {109,111};
> Line(112) = {113,112};
> Line(113) = {114,113};
> Line(114) = {112,114};
> Line(115) = {116,115};
> Line(116) = {117,116};
> Line(117) = {118,117};
> Line(118) = {119,118};
> Line(119) = {120,119};
> Line(120) = {121,120};
> Line(121) = {122,121};
> //Line(122) = {123,122};
> //Line(123) = {124,123};
> //Line(124) = {125,124};
> //Line(125) = {126,125};
> //Line(126) = {127,126};
> //Line(127) = {128,127};
> Line(128) = {129,105};
> Line(129) = {130,129};
> Line(130) = {131,130};
> Line(131) = {132,131};
> Line(132) = {133,132};
> Line(133) = {134,133};
> Line(134) = {135,134};
> Line(135) = {136,135};
> Line(136) = {137,136};
> Line(137) = {138,137};
> Line(138) = {139,138};
> Line(139) = {140,139};
> Line(140) = {141,140};
> Line(141) = {142,141};
> Line(142) = {115,142};
> Line(143) = {147,146};
> Line(144) = {146,145};
> Line(145) = {145,144};
> Line(146) = {144,143};
> Line(147) = {107,147};
>
>
>
> Line Loop(143) = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104};
> Line Loop(144) = {105, 106,146,145,144,143,147, 107, 108,-121,-120,-119,-118,-117,-116,-115,-142,-141,-140,-139,-138,-137,-136,-135,-134,-133,-132,-131,-130,-129,-128};
> Line Loop(145) = {109, 110, 111};
> Line Loop(146) = {112, 113, 114};
> //Line Loop(147) = {115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142};
> //Now Surfaces
> Plane Surface(148) = {144,143, 145, 146};
>
>
> ------------------------------------------------------------------------
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: gmsh_3.png
Type: image/png
Size: 57252 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20061018/21a85ee2/attachment.png>
