Hello,

I send two figures in attachment one with iso-values and another with filled
iso-values.

I am trying to represent the filling of a cavity and I was wondering if Gmsh
could produce a filled iso-values type plot but with a smooth surface in the
flow front as iso-values (These plots were both truncated at the flow front).

This may also maximize speed since only the outer surface would be represented.
In the filled iso-values I do not understand why it shows the inside of elements
when truncated.

I think this would be cool feature for Gmsh.


Billy.
-------------- next part --------------

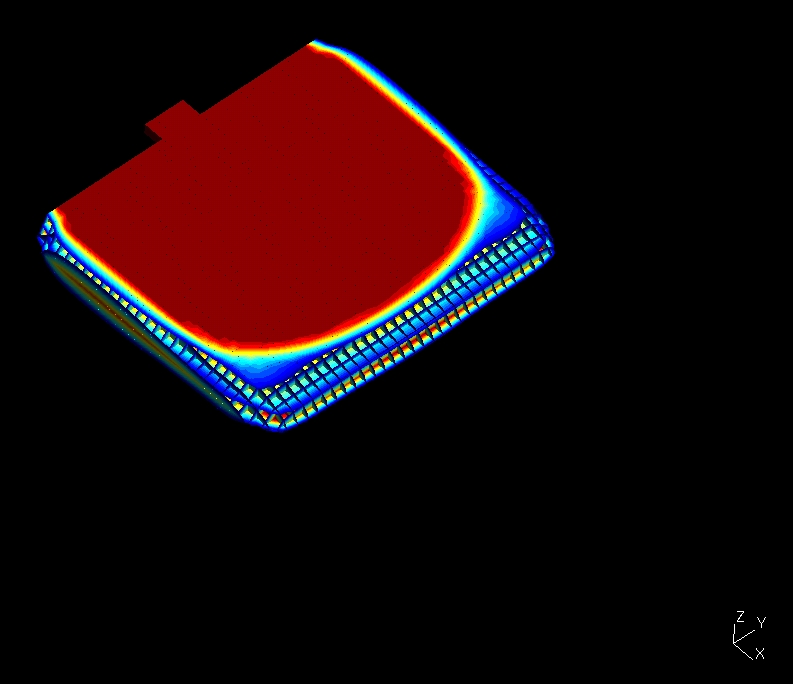

A non-text attachment was scrubbed...
Name: filledisoval.jpg
Type: image/jpeg
Size: 119736 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20060518/772737db/attachment.jpg>
-------------- next part --------------

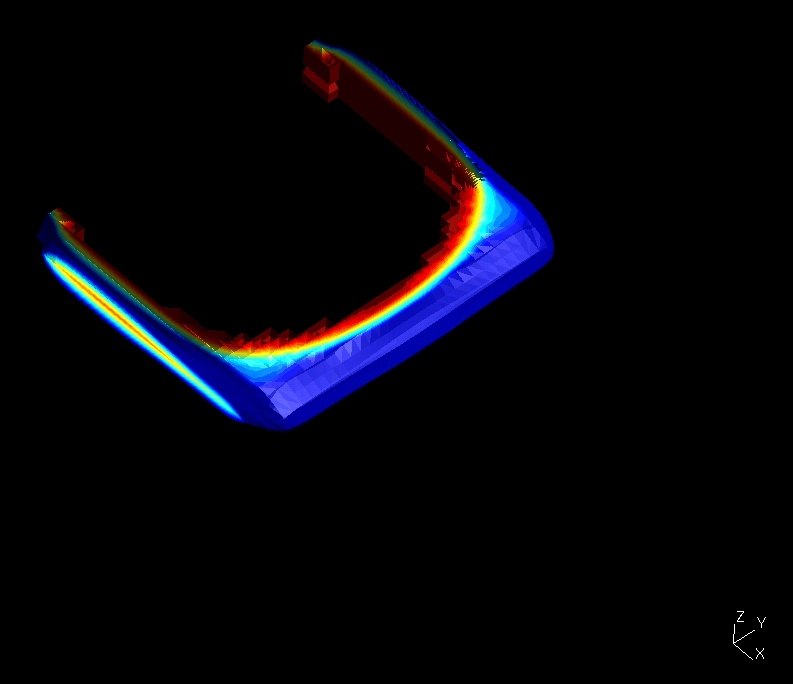

A non-text attachment was scrubbed...
