[Gmsh] transfinite options

[Luc Bordier]

Hello,

i try to use transfinite options to have a structured mesh.
to practice i try to mesh a simple box, but didn't succeed. The 1d and
2d meshes are ok but when i ran the 3d meshing algorithm it simply ended

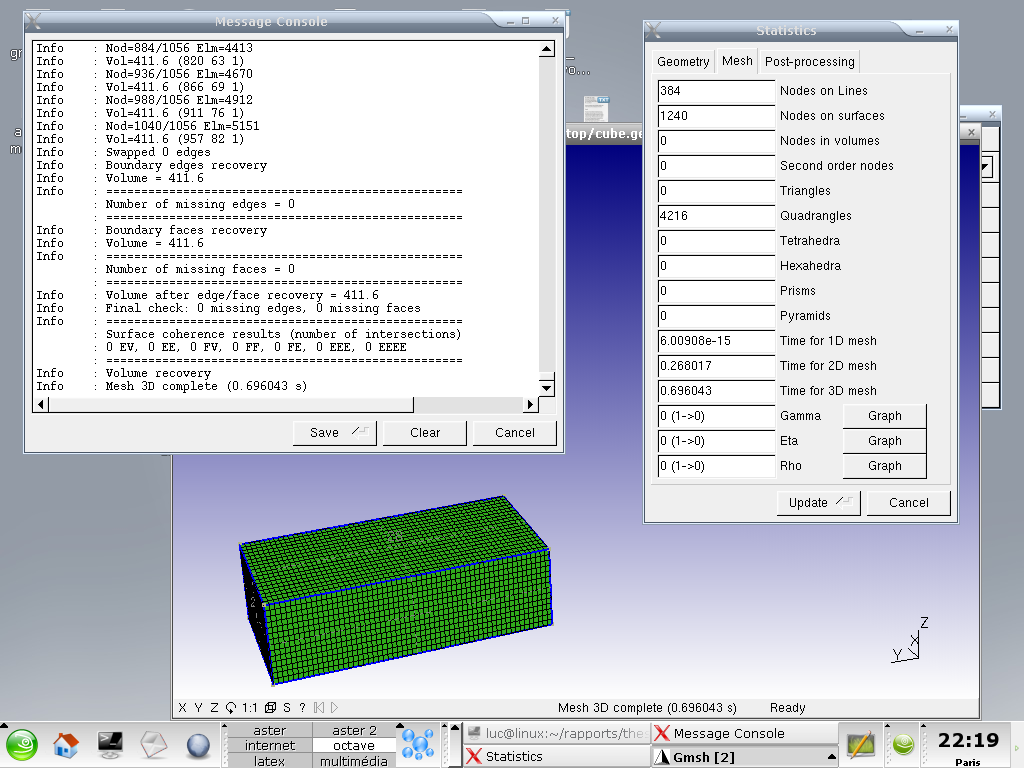

ok but no 3d elements are visible in the statistics (see snapshot).

So i tried to check with the t6.geo tutorial and there everything was
ok, i have the hexa and prisms elements !!

i surely missed something or don't understand the way to do it properly.

can you help me please ..??
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: cube.geo
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20060220/d3f56745/attachment.geo>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mesh.png
Type: image/png
Size: 76806 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20060220/d3f56745/attachment.png>
