[Getdp] Issue with Example: Magnetometer

Tue Nov 18 09:11:11 CET 2014

Hi MichaelI agree with your point on the mesh.  I am not sure how to duplicate the characteristic length as well when duplicating the geometry.  Do I have to specify it separately?
On my default setup, the second beam/geometry doesn't even solve.  I am not sure, if I should add an additional post-processing components to the default.

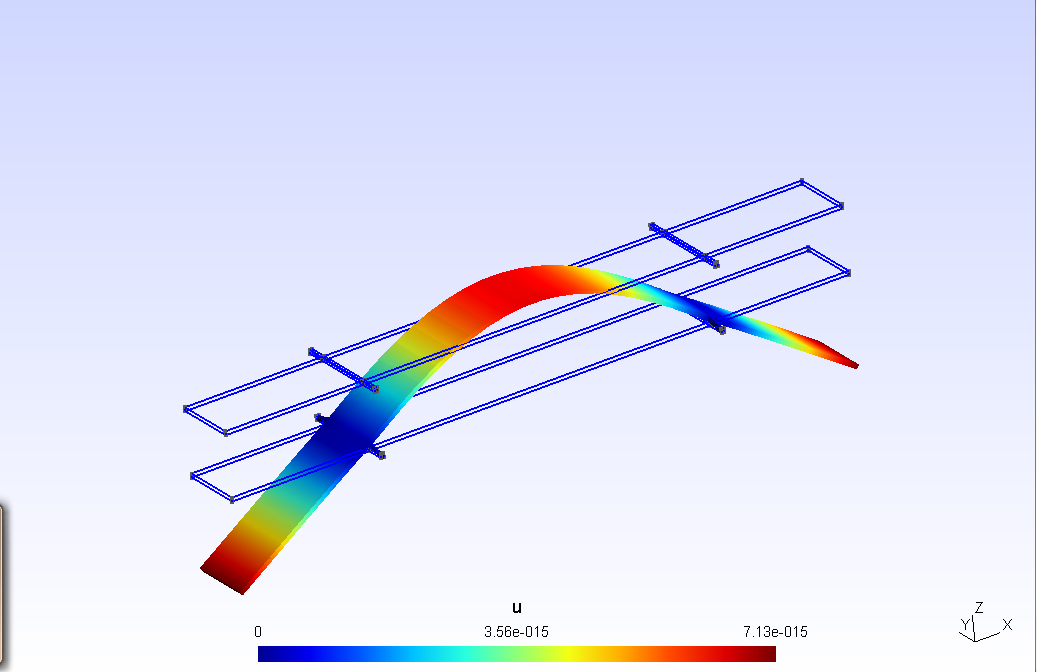

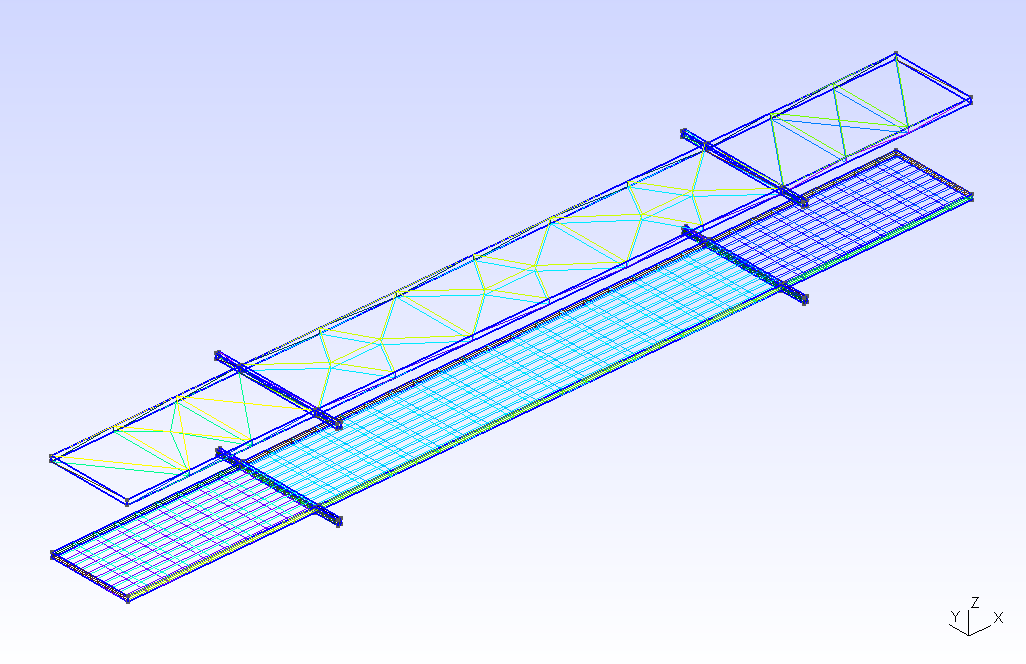

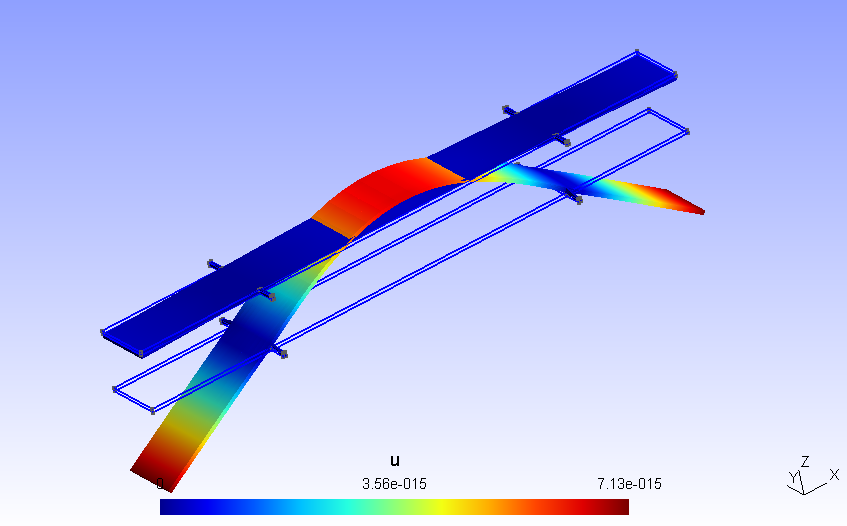

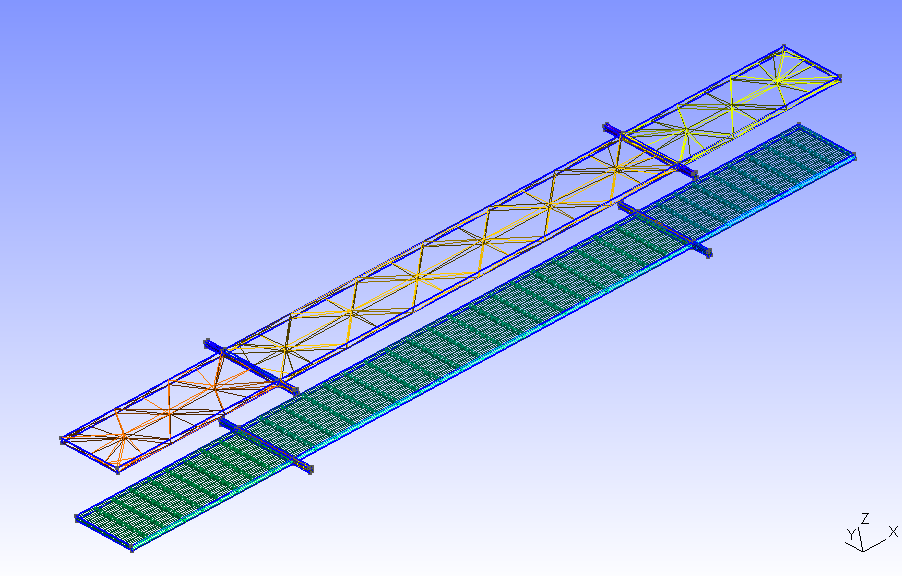

Screenshots attached.Regards Mikail M. A. AnsariMsc, BSc (Electrical Engineering)

     On Tuesday, November 18, 2014 9:19 AM, "michael.asam at infineon.com" <michael.asam at infineon.com> wrote:

 #yiv7520353787 #yiv7520353787 -- _filtered #yiv7520353787 {font-family:Helvetica;panose-1:2 11 6 4 2 2 2 2 2 4;} _filtered #yiv7520353787 {font-family:Helvetica;panose-1:2 11 6 4 2 2 2 2 2 4;} _filtered #yiv7520353787 {font-family:Calibri;panose-1:2 15 5 2 2 2 4 3 2 4;} _filtered #yiv7520353787 {font-family:Tahoma;panose-1:2 11 6 4 3 5 4 4 2 4;}#yiv7520353787 #yiv7520353787 p.yiv7520353787MsoNormal, #yiv7520353787 li.yiv7520353787MsoNormal, #yiv7520353787 div.yiv7520353787MsoNormal {margin:0cm;margin-bottom:.0001pt;font-size:12.0pt;}#yiv7520353787 a:link, #yiv7520353787 span.yiv7520353787MsoHyperlink {color:blue;text-decoration:underline;}#yiv7520353787 a:visited, #yiv7520353787 span.yiv7520353787MsoHyperlinkFollowed {color:purple;text-decoration:underline;}#yiv7520353787 p.yiv7520353787MsoAcetate, #yiv7520353787 li.yiv7520353787MsoAcetate, #yiv7520353787 div.yiv7520353787MsoAcetate {margin:0cm;margin-bottom:.0001pt;font-size:8.0pt;}#yiv7520353787 span.yiv7520353787E-MailFormatvorlage17 {color:#1F497D;}#yiv7520353787 span.yiv7520353787SprechblasentextZchn {}#yiv7520353787 .yiv7520353787MsoChpDefault {font-size:10.0pt;} _filtered #yiv7520353787 {margin:70.85pt 70.85pt 2.0cm 70.85pt;}#yiv7520353787 div.yiv7520353787WordSection1 {}#yiv7520353787 Hi Mikail,    I’ve just simulated your file with the default values. Both geometries are solved but the mesh for the duplicated geometry is not structured and quite coarse. I suppose the different results are due to the different mesh. Here are two screenshots:      Regards, Michael       From: getdp [mailto:getdp-bounces at ace20.montefiore.ulg.ac.be]On Behalf Of Mikail Ansari
Sent: Friday, November 14, 2014 3:20 PM
To: getdp at geuz.org
Subject: [Getdp] Issue with Example: Magnetometer    Hi I was trying to duplicate the Magnetometer example from the Onelab/GetDP website.    I duplicated the geometry.  I also assigned the physical geometry names. When solving: only the magnetometer example 1 shows any results. i.e. the duplicated geometry is not solved.    I have attached the files.  Could you advise me? Regards   Mikail M. A. Ansari Msc, BSc (Electrical Engineering)
