[Getdp] Issue with Example: Magnetometer

[michael.asam at infineon.com]

Hi Mikail,

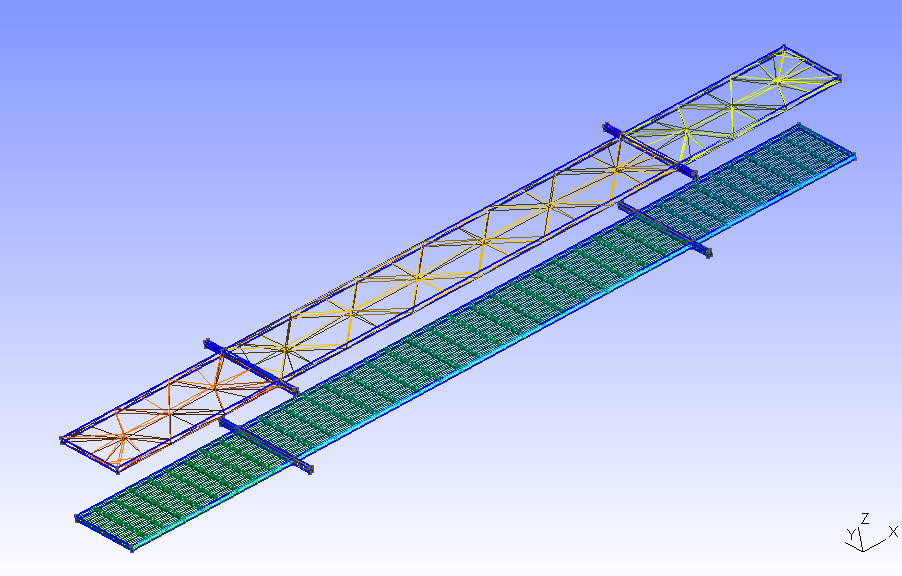

I've just simulated your file with the default values. Both geometries are solved
but the mesh for the duplicated geometry is not structured and quite coarse.
I suppose the different results are due to the different mesh.

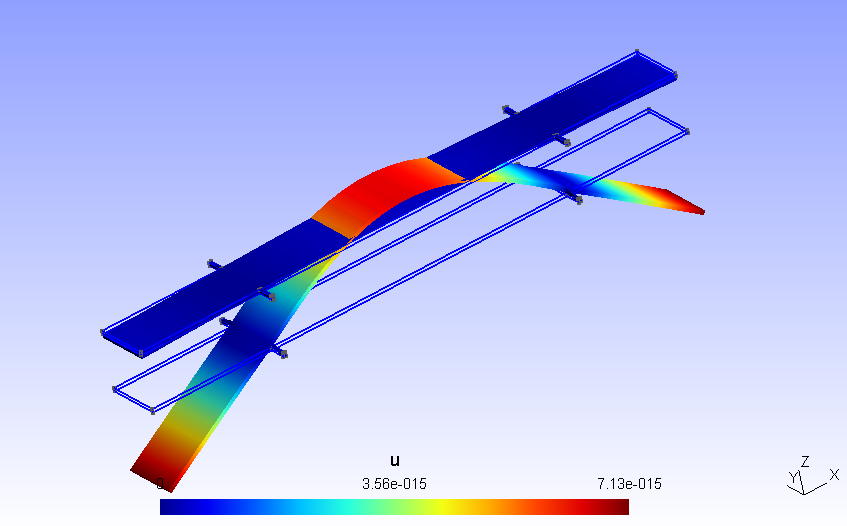

Here are two screenshots:
[cid:image001.png at 01D00308.55FE3850]
[cid:image002.png at 01D00308.55FE3850]

Regards,
Michael


From: getdp [mailto:getdp-bounces at ace20.montefiore.ulg.ac.be] On Behalf Of Mikail Ansari
Sent: Friday, November 14, 2014 3:20 PM
To: getdp at geuz.org
Subject: [Getdp] Issue with Example: Magnetometer

Hi
I was trying to duplicate the Magnetometer example from the Onelab/GetDP website.

I duplicated the geometry.  I also assigned the physical geometry names.
When solving: only the magnetometer example 1 shows any results.
i.e. the duplicated geometry is not solved.

I have attached the files.  Could you advise me?
Regards

Mikail M. A. Ansari
Msc, BSc (Electrical Engineering)
