[Getdp] vector normal to a magnet

[Patrick Dular]

Hello,

You can use the 'Rotate' function (here to rotate a vector in the
xy-plane around the z-axis):

Rotate[ _bRemanentVectorInTheFrameOfTheMagnet[],  0, 0,
_RotationAngleOfEachMagnetInRadians ]

with, e.g.,

_bRemanentVectorInTheFrameOfTheMagnet[] = b_remanent * Vector[0,1,0]; //
with the normal to the magnet along the local y-axis

You know the '_RotationAngleOfEachMagnetInRadians' value from your
geometry data.

Check the result by post-processing your new br[] function.

Patrick


On 14/10/13 14:55, Joseph Frippiat wrote:
>
> Hello,
>

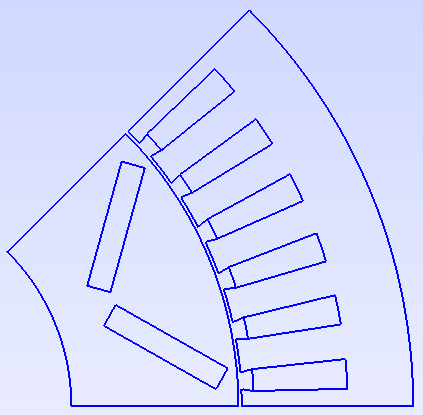

> using the examples « Rotating electric machines » from OneLab, I try
> to build a model for this permanent magnet electrical machine :
>
> In the file pmsm.pro from OneLab, one imposes a radial Br on the
> magnet with:
>
>   // For a radial remanent b
>
>   For k In {1:nbMagnets}
>
> br[ Rotor_Magnet~{k} ] = (-1)^(k-1) * b_remanent * Vector[
> Cos[Atan2[Y[],X[]]], Sin[Atan2[Y[],X[]]], 0 ];
>
> EndFor
>
> How do I construct a vector normal to the magnets ?
>
> Thanks for any help,
>
> Joseph
>
> --
>
