Hello,



using the examples « Rotating electric machines » from OneLab, I try to

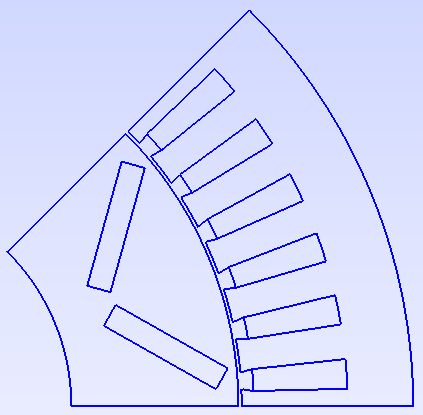

build a model for this permanent magnet electrical machine :







In the file pmsm.pro from OneLab, one imposes a radial Br on the magnet
with:



  // For a radial remanent b

  For k In {1:nbMagnets}

    br[ Rotor_Magnet~{k} ] = (-1)^(k-1) * b_remanent * Vector[
Cos[Atan2[Y[],X[]]], Sin[Atan2[Y[],X[]]], 0 ];

  EndFor



How do I construct a vector normal to the magnets ?



Thanks for any help,



Joseph



--
