Dear Matt,

We develop a tool which can answer to your problem. It helps to create a
tesselated surface from 3D cartesian points.

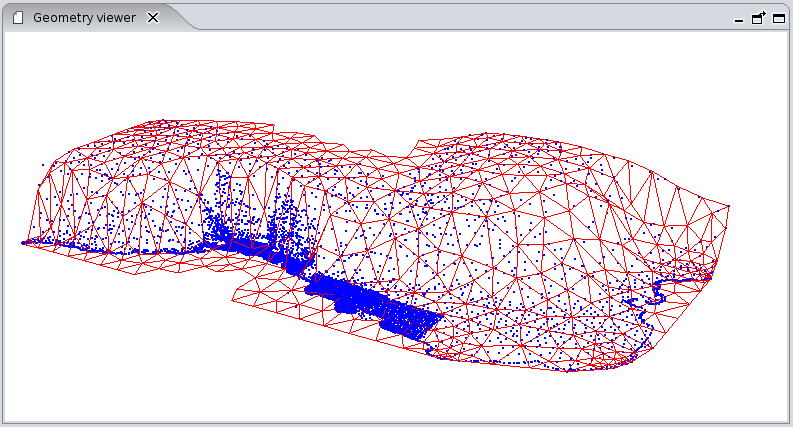

I attach a screenshot to show what is possible in our approach. The 3D
cartesian points are displayed in blue. The generated tesselated surface
is displayed in red. The tesselated surface is available in Gmsh .geo
file format.

This tools is not released yet, but send me a mail if you are interested
and we will discuss about the possibilities.

Regards,

Benjamin

--


Benjamin JEANTY-RUARD

  --------------------
      Artenum Toulouse - Science & Groupware
      http://www.artenum.com

          Bâtiment Calfocenter
          10, rue Marguerite Long
          31320 Castanet-Tolosan
          France
          Phone: +33 (0)5 82 95 51 97



> Date: Fri, 20 Nov 2015 16:56:27 -0700
> From: Matt Covalt <mcovalt at gmail.com>
> To: gmsh at geuz.org
> Subject: [Gmsh] Generation of Irregular 3D Surface (From DEM or xyz)
> Message-ID:
> 	<CANoeO=6pjQJGfz64gxtU-juzAYZQcogFjZUQE2uKFRvFgrSdOA at mail.gmail.com>
> Content-Type: text/plain; charset="utf-8"
>
> Hello,
>
> I'm working on creating a mesh of terrain. I have 3D scatter data
> specifying points of terrain elevation (DEM or Digital Elevation Model).
>
> Instead of having Gmsh use every point as a node for triangulation, I'd
> like the scatter data be used as a constraint - perhaps the nodes would be
> linearly interpolated between the known scatter data.
>
> Eventually, I will have multiple of these surfaces be the surface loop for
> a volume.
>
> Any ideas how to accomplish this?
>
> Thanks,
> Matt
