[Gmsh] Mesh contains triangles outside of the domain

[Martin Vymazal]

Hello,

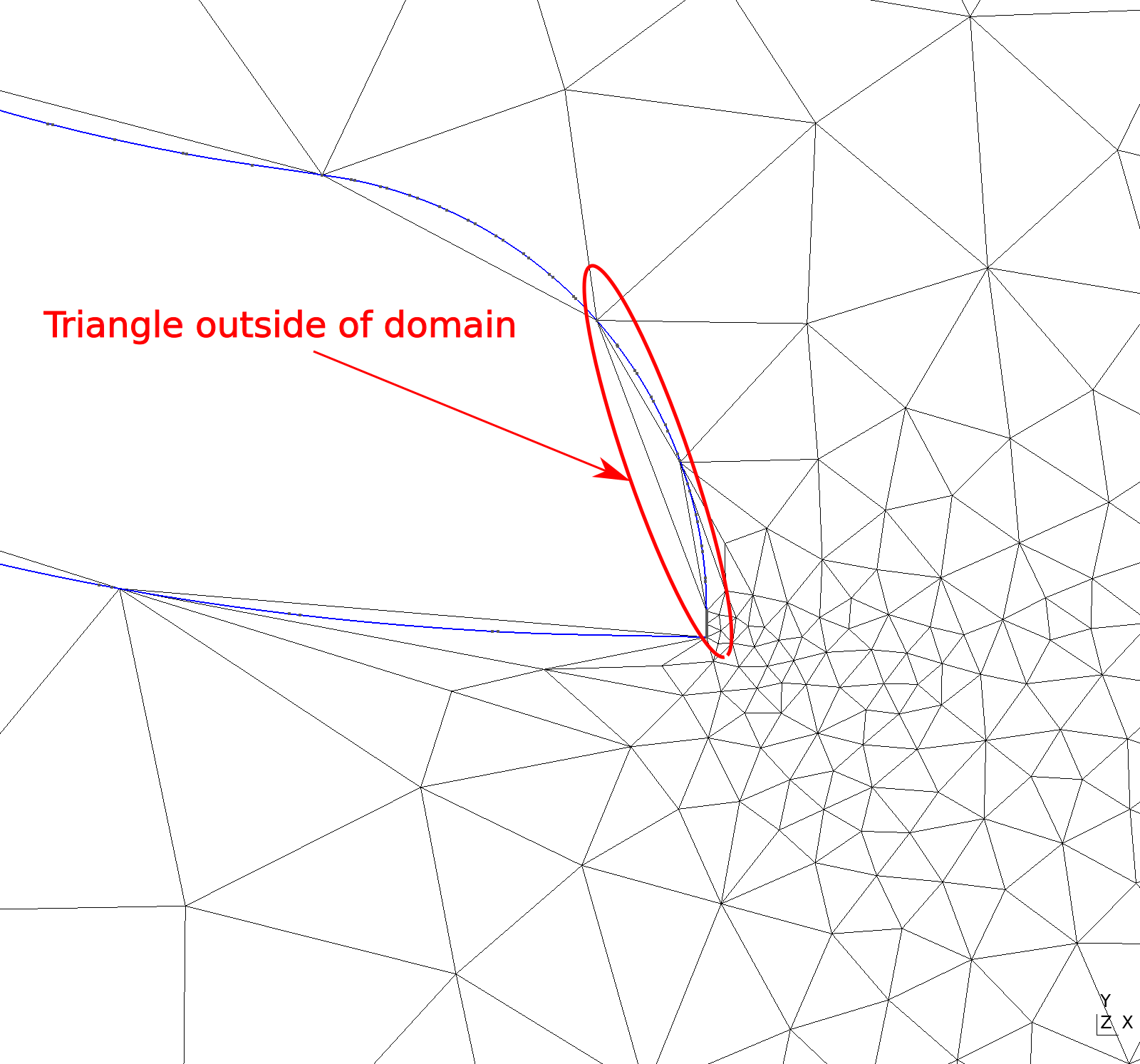

 I have a geometry (Geom.geo), for which gmsh produces a grid containing a few
triangles that lie outside of the original domain. This happens in regions
with high curvature of boundary, and changing the characteristic length scale
does not seem to help. For example, I set clscale to 0.3, which gives a mesh
that seems to be ok, but when I visualize the mesh nodes, they lie inside the
triangles instead of being their vertices. Is there some setting that would
eliminate this problem?

Thank you,

  Martin Vymazal
-------------- next part --------------
Include "Input.geo";
Line Loop(1) = {47,48,49,50,51,52,-59,-58,-57,-56,-55,-54,-53,60};

Plane Surface(1) = {1};
-------------- next part --------------
lc = 1.5;
Point(1) = {80.00000000000155, 9.000090634184616, 0, lc};
Point(2) = {66.63914434322223, 9.23833285192255, 0, lc};
Point(3) = {57.44364298399227, 9.848627536083876, 0, lc};
Point(4) = {51.53805732997193, 10.70291373893549, 0, lc};
Point(5) = {48.04694878882159, 11.67313051274428, 0, lc};
Point(6) = {46.09487876820155, 12.63121690977718, 0, lc};
Point(7) = {44.83576102258426, 13.45462318749175, 0, lc};
Point(8) = {42.99626113052953, 14.5797548454758, 0, lc};
Point(9) = {41.31542052177137, 15.11126014472651, 0, lc};
Point(10) = {38.95037159688275, 15.11650473342762, 0, lc};
Point(11) = {35.48606799234989, 13.78392395304495, 0, lc};
Point(12) = {33.31358918067331, 12.15361392119975, 0, lc};
Point(13) = {30.83422041632275, 9.630652449541003, 0, lc};
Point(14) = {30.88586435906402, 8.073329630098762, 0, lc};
Point(15) = {31.3011845187096, 6.578358024907174, 0, lc};
Point(16) = {33.83405669906722, 5.003605854896646, 0, lc};
Point(17) = {34.70856163779302, 4.011511610585196, 0, lc};
Point(18) = {34.70856163779304, 3.951903367591038, 0, lc};
Point(19) = {29.83417443797388, 9, 0, lc};
Point(20) = {14.91708721898695, 8.999999999999996, 0, lc};
Point(21) = {-1.110223024625157e-15, 8.999999999999996, 0, lc};
Point(22) = {-4.440892098500626e-16, 4.5, 0, lc};
Point(23) = {0, 2.533327314471843e-16, 0, lc};
Point(24) = {-8.881784197001252e-16, -4.5, 0, lc};
Point(25) = {1.77635683940025e-15, -9.000000000000004, 0, lc};
Point(26) = {14.91708721898695, -8.999999999999998, 0, lc};
Point(27) = {29.83417443797388, -8.999999999999998, 0, lc};
Point(28) = {34.70856163779304, -3.95190336759104, 0, lc};
Point(29) = {34.70856163779304, -4.011511610585199, 0, lc};
Point(30) = {33.83405669906722, -5.003605854896646, 0, lc};
Point(31) = {31.3011845187096, -6.578358024907175, 0, lc};
Point(32) = {30.88586435906403, -8.07332963009876, 0, lc};
Point(33) = {30.83422041632275, -9.630652449540989, 0, lc};
Point(34) = {33.31358918067332, -12.15361392119975, 0, lc};
Point(35) = {35.48606799234987, -13.78392395304496, 0, lc};
Point(36) = {38.95037159688275, -15.11650473342762, 0, lc};
Point(37) = {41.31542052177135, -15.11126014472651, 0, lc};
Point(38) = {42.99626113052948, -14.57975484547579, 0, lc};
Point(39) = {44.83576102258424, -13.45462318749175, 0, lc};
Point(40) = {46.09487876820155, -12.63121690977719, 0, lc};
Point(41) = {48.04694878882155, -11.67313051274428, 0, lc};
Point(42) = {51.5380573299719, -10.70291373893549, 0, lc};
Point(43) = {57.44364298399227, -9.848627536083875, 0, lc};
Point(44) = {66.63914434322228, -9.238332851922552, 0, lc};
Point(45) = {80.00000000000155, -9.000090634184614, 0, lc};
Point(46) = {80.00000000000158, -2.696923681421012e-15, 0, lc};
Point(47) = {0, -9, 0, lc};
Point(48) = {29.83417443797389, -9, 0, lc};
Point(49) = {34.70856163779305, -3.95190336759104, 0, lc};
Point(50) = {34.70856163779303, -4.011511610585198, 0, lc};
Point(51) = {33.83405669906722, -5.003605854896646, 0, lc};
Point(52) = {30.83422041632275, -9.630652449541003, 0, lc};
Point(53) = {80.00000000000153, -9.000090634184616, 0, lc};
Point(54) = {0, 9, 0, lc};
Point(55) = {29.83417443797389, 9, 0, lc};
Point(56) = {34.70856163779305, 3.95190336759104, 0, lc};
Point(57) = {34.70856163779303, 4.011511610585198, 0, lc};
Point(58) = {33.83405669906722, 5.003605854896646, 0, lc};
Point(59) = {30.83422041632275, 9.630652449541003, 0, lc};
Point(60) = {80.00000000000153, 9.000090634184616, 0, lc};
Point(61) = {80.00000000000153, 9.000090634184616, 0, lc};
Point(62) = {80.00000000000153, -9.000090634184616, 0, lc};
Point(63) = {0, 9, 0, lc};
Point(64) = {0, -9, 0, lc};
Point(65) = {0.0108651283187271, -0.02591761788012637, 0, lc};
Point(66) = {0, 0, 0, lc};
Point(67) = {30.83422041632275, 9.630652449541003, 0, lc};
Point(68) = {34.70856163779305, 3.951903367591039, 0, lc};
Point(69) = {29.83417443797389, 9, 0, lc};
Point(70) = {0, 9, 0, lc};
Point(72) = {79.26821194868732, 9.000976950319041, 0, lc};
Point(73) = {78.55671168801665, 9.002750661440045, 0, lc};
Point(74) = {77.85830347437059, 9.005437524740247, 0, lc};
Point(75) = {77.16945130572702, 9.009077954402757, 0, lc};
Point(76) = {76.48911268661728, 9.013722271431581, 0, lc};
Point(77) = {75.8162930538733, 9.019420983393875, 0, lc};
Point(78) = {75.14999784432703, 9.026224597856809, 0, lc};
Point(79) = {74.48923249481041, 9.034183622387539, 0, lc};
Point(80) = {73.83300244215539, 9.043348564553236, 0, lc};
Point(81) = {73.1803131231939, 9.053769931921059, 0, lc};
Point(82) = {72.53017268532844, 9.065498345082284, 0, lc};
Point(83) = {71.88159193508437, 9.07858454588429, 0, lc};
Point(84) = {71.23358209217646, 9.093079428619644, 0, lc};
Point(85) = {70.58515676858444, 9.109034160702588, 0, lc};
Point(86) = {69.93533196855277, 9.126500182669027, 0, lc};
Point(87) = {69.28312608859085, 9.145529208176537, 0, lc};
Point(88) = {68.62756660665549, 9.166173211230955, 0, lc};
Point(89) = {67.96816479249536, 9.18848508984372, 0, lc};
Point(90) = {67.30522949099957, 9.212519862231316, 0, lc};
Point(92) = {66.18256780303169, 9.257031052734158, 0, lc};
Point(93) = {65.72494211606006, 9.276652886334087, 0, lc};
Point(94) = {65.26639521702693, 9.297250124238516, 0, lc};
Point(95) = {64.80704345751302, 9.318875076187606, 0, lc};
Point(96) = {64.34700469195052, 9.341580248226663, 0, lc};
Point(97) = {63.88640201613773, 9.365418271876246, 0, lc};
Point(98) = {63.42535693980552, 9.390442129154312, 0, lc};
Point(99) = {62.96398702035138, 9.416705249366503, 0, lc};
Point(100) = {62.50240974500873, 9.444261432706529, 0, lc};
Point(101) = {62.0407456839072, 9.473164799822552, 0, lc};
Point(102) = {61.57911635741348, 9.503469892317968, 0, lc};
Point(103) = {61.11763964978814, 9.535231839261483, 0, lc};
Point(104) = {60.65642931198627, 9.568506405428476, 0, lc};
Point(105) = {60.19560073767197, 9.603349867427642, 0, lc};
Point(106) = {59.7352754919737, 9.639818937250906, 0, lc};
Point(107) = {59.27557090319264, 9.677971108714413, 0, lc};
Point(108) = {58.81656865382678, 9.717865550837676, 0, lc};
Point(109) = {58.35828077051791, 9.759563949712236, 0, lc};
Point(110) = {57.90065611824816, 9.803130036528792, 0, lc};
Point(112) = {57.14529210214819, 9.879389767354489, 0, lc};
Point(113) = {56.84734627217498, 9.910953430892111, 0, lc};
Point(114) = {56.54979124203076, 9.943394686937266, 0, lc};
Point(115) = {56.25261287716076, 9.976789866341953, 0, lc};
Point(116) = {55.95579717018703, 10.01121541382043, 0, lc};
Point(117) = {55.65933025059817, 10.04674783119995, 0, lc};
Point(118) = {55.36319839443922, 10.08346362067159, 0, lc};
Point(119) = {55.06738803400139, 10.12143922804093, 0, lc};
Point(120) = {54.7718857675118, 10.16075098597888, 0, lc};
Point(121) = {54.47667836882335, 10.20147505727245, 0, lc};
Point(122) = {54.18175279710442, 10.24368737807545, 0, lc};
Point(123) = {53.88709620652869, 10.28746360115936, 0, lc};
Point(124) = {53.59269595596491, 10.33287903916398, 0, lc};
Point(125) = {53.29853961866667, 10.38000860784831, 0, lc};
Point(126) = {53.00461499196223, 10.42892676934121, 0, lc};
Point(127) = {52.71091010694424, 10.47970747539224, 0, lc};
Point(128) = {52.41741323815953, 10.53242411062242, 0, lc};
Point(129) = {52.12411291329892, 10.58714943577494, 0, lc};
Point(130) = {51.83099792288703, 10.64395553096599, 0, lc};
Point(132) = {51.36014540958864, 10.73979954841839, 0, lc};
Point(133) = {51.18259088437059, 10.77746254931135, 0, lc};
Point(134) = {51.00539194569117, 10.81597762842704, 0, lc};
Point(135) = {50.82854702674174, 10.85541959045614, 0, lc};
Point(136) = {50.65205480994974, 10.89586314901034, 0, lc};
Point(137) = {50.4759142343969, 10.93738291766539, 0, lc};
Point(138) = {50.30012450323746, 10.98005340100404, 0, lc};
Point(139) = {50.12468509111633, 11.0239489856591, 0, lc};
Point(140) = {49.94959575158726, 11.06914393135646, 0, lc};
Point(141) = {49.77485652453112, 11.11571236195807, 0, lc};
Point(142) = {49.60046774357393, 11.16372825650499, 0, lc};
Point(143) = {49.42643004350523, 11.21326544026037, 0, lc};
Point(144) = {49.25274436769617, 11.26439757575245, 0, lc};
Point(145) = {49.07941197551764, 11.31719815381763, 0, lc};
Point(146) = {48.90643444975863, 11.37174048464344, 0, lc};
Point(147) = {48.73381370404429, 11.42809768881154, 0, lc};
Point(148) = {48.56155199025412, 11.48634268834077, 0, lc};
Point(149) = {48.38965190594021, 11.54654819773014, 0, lc};
Point(150) = {48.21811640174543, 11.60878671500185, 0, lc};
Point(152) = {47.94473799781411, 11.7127334851582, 0, lc};
Point(153) = {47.84306845185365, 11.75312682746623, 0, lc};
Point(154) = {47.7419307993684, 11.79432368788312, 0, lc};
Point(155) = {47.64131568260136, 11.83633739371626, 0, lc};
Point(156) = {47.54121373761021, 11.87918145136577, 0, lc};
Point(157) = {47.44161559426744, 11.92286954632444, 0, lc};
Point(158) = {47.3425118762602, 11.96741554317775, 0, lc};
Point(159) = {47.24389320109047, 12.01283348560388, 0, lc};
Point(160) = {47.14575018007487, 12.05913759637371, 0, lc};
Point(161) = {47.04807341834486, 12.10634227735078, 0, lc};
Point(162) = {46.95085351484656, 12.15446210949136, 0, lc};
Point(163) = {46.85408106234088, 12.20351185284437, 0, lc};
Point(164) = {46.75774664740347, 12.25350644655145, 0, lc};
Point(165) = {46.66184085042468, 12.30446100884692, 0, lc};
Point(166) = {46.56635424560965, 12.3563908370578, 0, lc};
Point(167) = {46.4712774009782, 12.4093114076038, 0, lc};
Point(168) = {46.37660087836498, 12.4632383759973, 0, lc};
Point(169) = {46.28231523341927, 12.5181875768434, 0, lc};
Point(170) = {46.1884110156052, 12.57417502383987, 0, lc};
Point(172) = {46.0309312062129, 12.67085949325777, 0, lc};
Point(173) = {45.96716890041032, 12.71077409923883, 0, lc};
Point(174) = {45.90357838979713, 12.75094231733319, 0, lc};
Point(175) = {45.84014620932194, 12.7913457078811, 0, lc};
Point(176) = {45.77685888987868, 12.83196580195025, 0, lc};
Point(177) = {45.71370295830655, 12.87278410133577, 0, lc};
Point(178) = {45.65066493739012, 12.91378207856018, 0, lc};
Point(179) = {45.58773134585925, 12.95494117687345, 0, lc};
Point(180) = {45.52488869838912, 12.99624281025297, 0, lc};
Point(181) = {45.4621235056002, 13.0376683634036, 0, lc};
Point(182) = {45.39942227405829, 13.07919919175755, 0, lc};
Point(183) = {45.33677150627453, 13.12081662147452, 0, lc};
Point(184) = {45.27415770070532, 13.16250194944162, 0, lc};
Point(185) = {45.21156735175241, 13.20423644327338, 0, lc};
Point(186) = {45.14898694976286, 13.24600134131177, 0, lc};
Point(187) = {45.08640298102903, 13.28777785262617, 0, lc};
Point(188) = {45.02380192778861, 13.32954715701341, 0, lc};
Point(189) = {44.96117026822458, 13.37129040499773, 0, lc};
Point(190) = {44.89849447646526, 13.41298871783082, 0, lc};
Point(192) = {44.74599485745885, 13.51417748415066, 0, lc};
Point(193) = {44.65628511892826, 13.57376315055189, 0, lc};
Point(194) = {44.56658370029915, 13.63331902069315, 0, lc};
Point(195) = {44.47684248331738, 13.69278347753322, 0, lc};
Point(196) = {44.38701333816801, 13.75209445299194, 0, lc};
Point(197) = {44.29704812347524, 13.81118942795021, 0, lc};
Point(198) = {44.20689868630247, 13.87000543225003, 0, lc};
Point(199) = {44.1165168621523, 13.92847904469443, 0, lc};
Point(200) = {44.02585447496644, 13.98654639304755, 0, lc};
Point(201) = {43.93486333712587, 14.04414315403457, 0, lc};
Point(202) = {43.84349524945068, 14.10120455334175, 0, lc};
Point(203) = {43.75170200120019, 14.15766536561642, 0, lc};
Point(204) = {43.65943537007285, 14.21345991446697, 0, lc};
Point(205) = {43.56664712220632, 14.26852207246289, 0, lc};
Point(206) = {43.47328901217745, 14.3227852611347, 0, lc};
Point(207) = {43.37931278300223, 14.376182450974, 0, lc};
Point(208) = {43.28467016613587, 14.42864616143349, 0, lc};
Point(209) = {43.18931288147273, 14.48010846092689, 0, lc};
Point(210) = {43.09319263734638, 14.53050096682903, 0, lc};
Point(212) = {42.915263739676, 14.6194916654329, 0, lc};
Point(213) = {42.83413215786195, 14.65779542142856, 0, lc};
Point(214) = {42.75283522712649, 14.6946782867825, 0, lc};
Point(215) = {42.67134183157776, 14.73015104738192, 0, lc};
Point(216) = {42.58962089221632, 14.76422322394536, 0, lc};
Point(217) = {42.50764136175857, 14.79690319428655, 0, lc};
Point(218) = {42.42537221946012, 14.82819831557831, 0, lc};
Point(219) = {42.3427824659391, 14.85811504661632, 0, lc};
Point(220) = {42.25984111799963, 14.88665907008309, 0, lc};
Point(221) = {42.17651720345517, 14.91383541481171, 0, lc};
Point(222) = {42.09277975595185, 14.93964857804978, 0, lc};
Point(223) = {42.00859780979192, 14.96410264772325, 0, lc};
Point(224) = {41.92394039475711, 14.98720142470025, 0, lc};
Point(225) = {41.83877653093198, 15.00894854505498, 0, lc};
Point(226) = {41.75307522352733, 15.02934760233157, 0, lc};
Point(227) = {41.66680545770357, 15.04840226980789, 0, lc};
Point(228) = {41.57993619339412, 15.06611642275947, 0, lc};
Point(229) = {41.49243636012873, 15.08249426072333, 0, lc};
Point(230) = {41.40427485185693, 15.09754042976182, 0, lc};
Point(232) = {41.20070403133775, 15.12717615179534, 0, lc};
Point(233) = {41.08488696174408, 15.14150456872168, 0, lc};
Point(234) = {40.96809063768453, 15.1542324189375, 0, lc};
Point(235) = {40.85043640052465, 15.16534741934476, 0, lc};
Point(236) = {40.73204560830138, 15.17483798031533, 0, lc};
Point(237) = {40.61303963572302, 15.18269320569109, 0, lc};
Point(238) = {40.49353987416926, 15.18890289278383, 0, lc};
Point(239) = {40.37366773169119, 15.19345753237532, 0, lc};
Point(240) = {40.25354463301124, 15.19634830871729, 0, lc};
Point(241) = {40.13329201952327, 15.1975670995314, 0, lc};
Point(242) = {40.01303134929248, 15.19710647600929, 0, lc};
Point(243) = {39.89288409705547, 15.19495970281254, 0, lc};
Point(244) = {39.77297175422022, 15.19112073807271, 0, lc};
Point(245) = {39.65341582886609, 15.18558423339128, 0, lc};
Point(246) = {39.53433784574381, 15.17834553383971, 0, lc};
Point(247) = {39.4158593462755, 15.16940067795942, 0, lc};
Point(248) = {39.29810188855468, 15.15874639776176, 0, lc};
Point(249) = {39.1811870473462, 15.14638011872806, 0, lc};
Point(250) = {39.06523641408635, 15.13229995980961, 0, lc};
Point(252) = {38.75955122876095, 15.08631857623958, 0, lc};
Point(253) = {38.57143170603413, 15.05183837015241, 0, lc};
Point(254) = {38.38587114549274, 15.01315831514059, 0, lc};
Point(255) = {38.20272782992461, 14.9703681011865, 0, lc};
Point(256) = {38.02186021594841, 14.92355410986684, 0, lc};
Point(257) = {37.84312702389079, 14.87280172867566, 0, lc};
Point(258) = {37.666387189693, 14.81819223458549, 0, lc};
Point(259) = {37.49149971444131, 14.75979709773176, 0, lc};
Point(260) = {37.3183235254983, 14.69767461433461, 0, lc};
Point(261) = {37.14671743889833, 14.63187184335938, 0, lc};
Point(262) = {36.9765402449365, 14.56243151115253, 0, lc};
Point(263) = {36.80765087174514, 14.48940075344084, 0, lc};
Point(264) = {36.63990854388082, 14.41283744959468, 0, lc};
Point(265) = {36.47317285804844, 14.33281090875365, 0, lc};
Point(266) = {36.30730374431995, 14.24939650399599, 0, lc};
Point(267) = {36.14216135156553, 14.16266750578089, 0, lc};
Point(268) = {35.97760595804765, 14.07269009986111, 0, lc};
Point(269) = {35.81349801472248, 13.9795269220865, 0, lc};
Point(270) = {35.64969831698369, 13.88324721120887, 0, lc};
Point(272) = {35.36954958526267, 13.71126996197386, 0, lc};
Point(273) = {35.25404756238326, 13.63759021315152, 0, lc};
Point(274) = {35.13953104201133, 13.56290227593433, 0, lc};
Point(275) = {35.0259691386218, 13.48722323148387, 0, lc};
Point(276) = {34.9133309628648, 13.41056967276687, 0, lc};
Point(277) = {34.80158562156569, 13.33295770455523, 0, lc};
Point(278) = {34.69070221772505, 13.254402943426, 0, lc};
Point(279) = {34.58064985051864, 13.17492051776139, 0, lc};
Point(280) = {34.47139761529748, 13.09452506774879, 0, lc};
Point(281) = {34.3629146035878, 13.01323074538075, 0, lc};
Point(282) = {34.25516990309104, 12.93105121445494, 0, lc};
Point(283) = {34.14813259768387, 12.84799965057425, 0, lc};
Point(284) = {34.04177176741816, 12.7640887411467, 0, lc};
Point(285) = {33.93605648852103, 12.67933068538547, 0, lc};
Point(286) = {33.83095583339477, 12.59373719430892, 0, lc};
Point(287) = {33.72643887061695, 12.50731949074055, 0, lc};
Point(288) = {33.6224746649403, 12.42008830930903, 0, lc};
Point(289) = {33.51903227729282, 12.3320538964482, 0, lc};
Point(290) = {33.41608076477768, 12.24322601039706, 0, lc};
Point(292) = {33.18106362526709, 12.03605978439567, 0, lc};
Point(293) = {33.04961644111826, 11.91761890444121, 0, lc};
Point(294) = {32.9192191569666, 11.79828314442555, 0, lc};
Point(295) = {32.78984307089628, 11.67804399527166, 0, lc};
Point(296) = {32.66145924869115, 11.55689749895703, 0, lc};
Point(297) = {32.53403852682331, 11.43483873986874, 0, lc};
Point(298) = {32.40755149202521, 11.31185723081686, 0, lc};
Point(299) = {32.28196843874002, 11.18793727009236, 0, lc};
Point(300) = {32.15725932068425, 11.06306286123056, 0, lc};
Point(301) = {32.03339371637549, 10.93722456164875, 0, lc};
Point(302) = {31.91034082386096, 10.8104251538871, 0, lc};
Point(303) = {31.7880694901127, 10.68268180761419, 0, lc};
Point(304) = {31.66654826871724, 10.55402391568266, 0, lc};
Point(305) = {31.54574548866652, 10.42448753715671, 0, lc};
Point(306) = {31.42562931033478, 10.29410885819981, 0, lc};
Point(307) = {31.30616774518945, 10.16291978182972, 0, lc};
Point(308) = {31.18732862651541, 10.03094817363605, 0, lc};
Point(309) = {31.06907954251647, 9.898222916435401, 0, lc};
Point(310) = {30.95138778367872, 9.764779256328319, 0, lc};
Point(312) = {30.83728478975886, 9.523060383596569, 0, lc};
Point(313) = {30.83921176064102, 9.424873249515766, 0, lc};
Point(314) = {30.84018232214971, 9.335059961219351, 0, lc};
Point(315) = {30.84037758787521, 9.252584018061068, 0, lc};
Point(316) = {30.83997877307968, 9.176404218763476, 0, lc};
Point(317) = {30.83916717177602, 9.10547532850887, 0, lc};
Point(318) = {30.83812412962362, 9.038748699185341, 0, lc};
Point(319) = {30.83703101264097, 8.975172842787877, 0, lc};
Point(320) = {30.83606917173512, 8.91369395797463, 0, lc};
Point(321) = {30.83541990304798, 8.853256409778252, 0, lc};
Point(322) = {30.83526440411952, 8.792803162472344, 0, lc};
Point(323) = {30.8357837258678, 8.731276165593007, 0, lc};
Point(324) = {30.83715872038584, 8.667616693115498, 0, lc};
Point(325) = {30.8395699845554, 8.60076563578599, 0, lc};
Point(326) = {30.84319779947753, 8.529663746608424, 0, lc};
Point(327) = {30.84822206572013, 8.453251839486503, 0, lc};
Point(328) = {30.85482223438215, 8.370470941020722, 0, lc};
Point(329) = {30.86317723397487, 8.280262395460568, 0, lc};
Point(330) = {30.87346539311989, 8.181567922811785, 0, lc};
Point(332) = {30.89565845195685, 7.994585528245388, 0, lc};
Point(333) = {30.9062441169217, 7.916363351054922, 0, lc};
Point(334) = {30.91768168688534, 7.838647488372881, 0, lc};
Point(335) = {30.93003154845288, 7.761422028769683, 0, lc};
Point(336) = {30.9433541419078, 7.684670759540619, 0, lc};
Point(337) = {30.95770996121189, 7.60837716670583, 0, lc};
Point(338) = {30.97315955400531, 7.532524435010356, 0, lc};
Point(339) = {30.98976352160657, 7.457095447924102, 0, lc};
Point(340) = {31.00758251901249, 7.382072787641857, 0, lc};
Point(341) = {31.0266772548983, 7.307438735083256, 0, lc};
Point(342) = {31.04710849161752, 7.233175269892838, 0, lc};
Point(343) = {31.06893704520203, 7.159264070440012, 0, lc};
Point(344) = {31.09222378536208, 7.08568651381904, 0, lc};
Point(345) = {31.11702963548624, 7.012423675849079, 0, lc};
Point(346) = {31.14341557264143, 6.939456331074155, 0, lc};
Point(347) = {31.17144262757294, 6.866764952763176, 0, lc};
Point(348) = {31.20117188470437, 6.794329712909898, 0, lc};
Point(349) = {31.23266448213769, 6.722130482232976, 0, lc};
Point(350) = {31.26598161165322, 6.650146830175942, 0, lc};
Point(352) = {31.38271808492344, 6.427531245622117, 0, lc};
Point(353) = {31.47024689695818, 6.285979268658117, 0, lc};
Point(354) = {31.5635671343103, 6.153413754145698, 0, lc};
Point(355) = {31.66247378569523, 6.029548627476758, 0, lc};
Point(356) = {31.76676072830806, 5.914099905364566, 0, lc};
Point(357) = {31.87622080708429, 5.806785521903798, 0, lc};
Point(358) = {31.99064591396057, 5.707325154630542, 0, lc};
Point(359) = {32.10982706713538, 5.615440050582354, 0, lc};
Point(360) = {32.23355449032981, 5.530852852358263, 0, lc};
Point(361) = {32.36161769204824, 5.453287424178788, 0, lc};
Point(362) = {32.49380554483912, 5.382468677945987, 0, lc};
Point(363) = {32.62990636455565, 5.318122399303464, 0, lc};
Point(364) = {32.76970798961654, 5.259975073696392, 0, lc};
Point(365) = {32.91299786026674, 5.207753712431552, 0, lc};
Point(366) = {33.0595630978381, 5.161185678737346, 0, lc};
Point(367) = {33.20919058401022, 5.119998513823822, 0, lc};
Point(368) = {33.36166704007107, 5.083919762942703, 0, lc};
Point(369) = {33.51677910617777, 5.052676801447413, 0, lc};
Point(370) = {33.67431342061729, 5.025996660853098, 0, lc};
Point(372) = {33.90844278921719, 4.991374794544202, 0, lc};
Point(373) = {33.98068419314603, 4.973901985029385, 0, lc};
Point(374) = {34.05060076853948, 4.951405393693967, 0, lc};
Point(375) = {34.11801229790393, 4.924102983036364, 0, lc};
Point(376) = {34.1827384885664, 4.892212710711649, 0, lc};
Point(377) = {34.24459897267454, 4.855952529531542, 0, lc};
Point(378) = {34.30341330719665, 4.815540387464416, 0, lc};
Point(379) = {34.35900097392167, 4.771194227635293, 0, lc};
Point(380) = {34.41118137945917, 4.723131988325839, 0, lc};
Point(381) = {34.45977385523938, 4.67157160297438, 0, lc};
Point(382) = {34.50459765751312, 4.616731000175886, 0, lc};
Point(383) = {34.54547196735192, 4.55882810368198, 0, lc};
Point(384) = {34.58221589064786, 4.498080832400943, 0, lc};
Point(385) = {34.61464845811375, 4.434707100397682, 0, lc};
Point(386) = {34.64258862528297, 4.368924816893778, 0, lc};
Point(387) = {34.66585527250957, 4.300951886267455, 0, lc};
Point(388) = {34.68426720496824, 4.231006208053585, 0, lc};
Point(389) = {34.69764315265429, 4.1593056769437, 0, lc};
Point(390) = {34.70580177038369, 4.08606818278596, 0, lc};
Point(392) = {34.70856180153532, 4.008531221558084, 0, lc};
Point(393) = {34.70856194805437, 4.005550830477599, 0, lc};
Point(394) = {34.70856207734805, 4.002570437280297, 0, lc};
Point(395) = {34.70856218941422, 3.999590041902762, 0, lc};
Point(396) = {34.70856228425076, 3.99660964428155, 0, lc};
Point(397) = {34.70856236185553, 3.99362924435324, 0, lc};
Point(398) = {34.70856242222639, 3.990648842054409, 0, lc};
Point(399) = {34.70856246536123, 3.987668437321612, 0, lc};
Point(400) = {34.70856249125791, 3.984688030091436, 0, lc};
Point(401) = {34.70856249991429, 3.981707620300436, 0, lc};
Point(402) = {34.70856249132824, 3.978727207885189, 0, lc};
Point(403) = {34.70856246549764, 3.975746792782274, 0, lc};
Point(404) = {34.70856242242036, 3.972766374928246, 0, lc};
Point(405) = {34.70856236209425, 3.96978595425969, 0, lc};
Point(406) = {34.70856228451719, 3.966805530713162, 0, lc};
Point(407) = {34.70856218968705, 3.963825104225241, 0, lc};
Point(408) = {34.70856207760171, 3.960844674732503, 0, lc};
Point(409) = {34.70856194825901, 3.957864242171505, 0, lc};
Point(410) = {34.70856180165683, 3.954883806478832, 0, lc};
Point(412) = {34.22053197678765, 3.965225824347067, 0, lc};
Point(413) = {33.75949334116557, 4.005045359841467, 0, lc};
Point(414) = {33.32523337232809, 4.071140221913709, 0, lc};
Point(415) = {32.91753971167649, 4.163288658403268, 0, lc};
Point(416) = {32.53620000061204, 4.281268917149612, 0, lc};
Point(417) = {32.18100188053602, 4.424859245992216, 0, lc};
Point(418) = {31.85173299284972, 4.593837892770551, 0, lc};
Point(419) = {31.54818097895442, 4.787983105324083, 0, lc};
Point(420) = {31.27013348025138, 5.007073131492293, 0, lc};
Point(421) = {31.0173781381419, 5.250886219114649, 0, lc};
Point(422) = {30.78970259402725, 5.519200616030623, 0, lc};
Point(423) = {30.5868944893087, 5.811794570079686, 0, lc};
Point(424) = {30.40874146538756, 6.128446329101305, 0, lc};
Point(425) = {30.25503116366507, 6.468934140934961, 0, lc};
Point(426) = {30.12555122554254, 6.833036253420121, 0, lc};
Point(427) = {30.02008929242123, 7.220530914396258, 0, lc};
Point(428) = {29.93843300570244, 7.631196371702841, 0, lc};
Point(429) = {29.88037000678742, 8.064810873179347, 0, lc};
Point(430) = {29.84568793707748, 8.521152666665239, 0, lc};
Point(432) = {29.09101737820297, 9.000062161334695, 0, lc};
Point(433) = {28.34839599141039, 9.000233287180977, 0, lc};
Point(434) = {27.6061377279112, 9.000490101375751, 0, lc};
Point(435) = {26.86407010470359, 9.000809009187403, 0, lc};
Point(436) = {26.12202070546886, 9.001166097315805, 0, lc};
Point(437) = {25.37981718057146, 9.001537133892313, 0, lc};
Point(438) = {24.63728724705895, 9.001897568479771, 0, lc};
Point(439) = {23.89425868866202, 9.002222532072503, 0, lc};
Point(440) = {23.1505593557945, 9.00248683709632, 0, lc};
Point(441) = {22.40601716555335, 9.002664977408518, 0, lc};
Point(442) = {21.66046010171863, 9.002731128297874, 0, lc};
Point(443) = {20.91371621475357, 9.002659146484657, 0, lc};
Point(444) = {20.16566740781436, 9.002430659251308, 0, lc};
Point(445) = {19.41652148336193, 9.002075828454984, 0, lc};
Point(446) = {18.66660832064759, 9.00164296280529, 0, lc};
Point(447) = {17.91625801355249, 9.001180401966332, 0, lc};
Point(448) = {17.16580065595774, 9.000736485602218, 0, lc};
Point(449) = {16.41556634174448, 9.000359553377054, 0, lc};
Point(450) = {15.66588516479384, 9.000097944954943, 0, lc};
Point(452) = {14.16861942990232, 8.999981605646001, 0, lc};
Point(453) = {13.42169799998592, 8.999935606050149, 0, lc};
Point(454) = {12.67665400306194, 8.99987577641164, 0, lc};
Point(455) = {11.93381851295456, 8.999815891929671, 0, lc};
Point(456) = {11.19352260348797, 8.999769727803439, 0, lc};
Point(457) = {10.45593079115882, 8.999748245916431, 0, lc};
Point(458) = {9.720488690855371, 8.999750307786172, 0, lc};
Point(459) = {8.986447999331146, 8.999771522398289, 0, lc};
Point(460) = {8.253060410407642, 8.999807498695892, 0, lc};
Point(461) = {7.51957761790635, 8.999853845622093, 0, lc};
Point(462) = {6.785251315648771, 8.999906172120003, 0, lc};
Point(463) = {6.049333197456406, 8.999960087132733, 0, lc};
Point(464) = {5.311074956419379, 9.000011200257534, 0, lc};
Point(465) = {4.569728261343067, 9.000055137052371, 0, lc};
Point(466) = {3.824544752338396, 9.000087539561761, 0, lc};
Point(467) = {3.074776067902197, 9.000104050589561, 0, lc};
Point(468) = {2.3196738465313, 9.000100312939628, 0, lc};
Point(469) = {1.558488318075777, 9.000071976663175, 0, lc};
Point(470) = {0.788348947648028, 9.000025520377035, 0, lc};
Point(472) = {0.0001550284955167124, 8.70058294674384, 0, lc};
Point(473) = {0.0004667230186441743, 8.424625231709072, 0, lc};
Point(474) = {0.0007599376326481702, 8.169566117155957, 0, lc};
Point(475) = {0.0009615948677741384, 7.932823292645796, 0, lc};
Point(476) = {0.001044549327740503, 7.711800484280225, 0, lc};
Point(477) = {0.0009965793966920902, 7.503892275185109, 0, lc};
Point(478) = {0.0008252920857548768, 7.306485261443933, 0, lc};
Point(479) = {0.0005661274998785742, 7.116958587600733, 0, lc};
Point(480) = {0.0002750808100841318, 6.932685588557304, 0, lc};
Point(481) = {9.548224497212336e-06, 6.751036287015991, 0, lc};
Point(482) = {-0.0001896177500706516, 6.569379615081773, 0, lc};
Point(483) = {-0.0003052517321511295, 6.385084540249574, 0, lc};
Point(484) = {-0.0003400234651631111, 6.195520122695815, 0, lc};
Point(485) = {-0.0003084509175346366, 5.998055167429246, 0, lc};
Point(486) = {-0.0002317452016169483, 5.790058145839594, 0, lc};
Point(487) = {-0.0001365467368541178, 5.568897531670008, 0, lc};
Point(488) = {-5.233782784454439e-05, 5.331942137145391, 0, lc};
Point(489) = {-2.479248391962005e-06, 5.076561060590674, 0, lc};
Point(490) = {7.902100397039445e-06, 4.80012361801258, 0, lc};
Point(492) = {-7.027784357896247e-05, 4.274961371616382, 0, lc};
Point(493) = {-0.0002492757959741967, 4.049925797422653, 0, lc};
Point(494) = {-0.0004679154030705254, 3.824894431568452, 0, lc};
Point(495) = {-0.0006680005852699831, 3.599868218327875, 0, lc};
Point(496) = {-0.0008186614363492763, 3.374847565155331, 0, lc};
Point(497) = {-0.0009123688259000441, 3.149832418956007, 0, lc};
Point(498) = {-0.0009546850998368427, 2.924822466287806, 0, lc};
Point(499) = {-0.0009551714622031055, 2.699817311144087, 0, lc};
Point(500) = {-0.0009222409924240852, 2.474816575260522, 0, lc};
Point(501) = {-0.0008618892984716957, 2.249819922212583, 0, lc};
Point(502) = {-0.0007788141213431765, 2.02482703458972, 0, lc};
Point(503) = {-0.0006781123830389235, 1.799837579915614, 0, lc};
Point(504) = {-0.000566179802075912, 1.574851192398455, 0, lc};
Point(505) = {-0.0004502958807219054, 1.34986748070818, 0, lc};
Point(506) = {-0.0003373173897958755, 1.12488605345661, 0, lc};
Point(507) = {-0.000232588033294944, 0.8999065405685736, 0, lc};
Point(508) = {-0.000140262359469747, 0.6749285869449468, 0, lc};
Point(509) = {-6.539979054520151e-05, 0.449951811399397, 0, lc};
Point(510) = {-1.607146325805089e-05, 0.2249757654667697, 0, lc};
Point(512) = {-1.606752855100277e-05, -0.224975766795794, 0, lc};
Point(513) = {-6.538660780611067e-05, -0.4499518129949738, 0, lc};
Point(514) = {-0.000140235506718979, -0.6749285879091789, 0, lc};
Point(515) = {-0.0002325433948913361, -0.8999065401831935, 0, lc};
Point(516) = {-0.000337251999972129, -1.12488605114829, 0, lc};
Point(517) = {-0.0004502085367506213, -1.349867476031502, 0, lc};
Point(518) = {-0.0005660710310973042, -1.574851185044653, 0, lc};
Point(519) = {-0.0006779839884888529, -1.799837569731424, 0, lc};
Point(520) = {-0.0007786687391893025, -2.024827021588912, 0, lc};
Point(521) = {-0.0008617303070939751, -2.249819906572072, 0, lc};
Point(522) = {-0.0009220728736202004, -2.474816557304788, 0, lc};
Point(523) = {-0.0009550004186941399, -2.699817291330119, 0, lc};
Point(524) = {-0.0009545194946812917, -2.924822445204194, 0, lc};
Point(525) = {-0.0009122189028831868, -3.149832397343177, 0, lc};
Point(526) = {-0.0008185378728208846, -3.374847543940609, 0, lc};
Point(527) = {-0.0006679117687899979, -3.599868198652944, 0, lc};
Point(528) = {-0.0004678639429482098, -3.824894414774198, 0, lc};
Point(529) = {-0.0002492556963270706, -4.049925784956127, 0, lc};
Point(530) = {-7.02749755000383e-05, -4.274961364848023, 0, lc};
Point(532) = {7.905981690196803e-06, -4.80011731844168, 0, lc};
Point(533) = {-2.468082860344437e-06, -5.076550451579928, 0, lc};
Point(534) = {-5.231261435874849e-05, -5.331928986842393, 0, lc};
Point(535) = {-0.000136507015545261, -5.568883387104824, 0, lc};
Point(536) = {-0.0002316960694974365, -5.790044332955649, 0, lc};
Point(537) = {-0.0003083981747745648, -5.998042790780373, 0, lc};
Point(538) = {-0.0003399731837776379, -6.195510065551141, 0, lc};
Point(539) = {-0.0003052118833035832, -6.385077464887851, 0, lc};
Point(540) = {-0.0001895969209621895, -6.569375962816756, 0, lc};
Point(541) = {9.545368827742398e-06, -6.751036277904728, 0, lc};
Point(542) = {0.0002750570349204502, -6.932689221171318, 0, lc};
Point(543) = {0.0005660913643243402, -7.116965639251714, 0, lc};
Point(544) = {0.0008252516706483051, -7.306495288864181, 0, lc};
Point(545) = {0.0009965367521400364, -7.503904615229825, 0, lc};
Point(546) = {0.001044501362868214, -7.711814254161857, 0, lc};
Point(547) = {0.0009615408283420068, -7.932837389680785, 0, lc};
Point(548) = {0.0007598857045111185, -8.1695792186887, 0, lc};
Point(549) = {0.0004666869761260241, -8.424635796090156, 0, lc};
Point(550) = {0.0001550152643392884, -8.70058921545375, 0, lc};
Point(552) = {0.7883492100129488, -9.000025536178564, 0, lc};
Point(553) = {1.558488617168243, -9.000072025889986, 0, lc};
Point(554) = {2.319674064987271, -9.000100394313867, 0, lc};
Point(555) = {3.074776237622083, -9.000104157716271, 0, lc};
Point(556) = {3.824544901082383, -9.000087666389076, 0, lc};
Point(557) = {4.569728411540973, -9.000055277880927, 0, lc};
Point(558) = {5.31107512517065, -9.000011349740468, 0, lc};
Point(559) = {6.04933339653638, -8.999960240272197, 0, lc};
Point(560) = {6.785251551476701, -8.999906324281591, 0, lc};
Point(561) = {7.519577891422427, -8.999853992598371, 0, lc};
Point(562) = {8.253060717061038, -8.999807636712745, 0, lc};
Point(563) = {8.986448329079991, -8.999771648114919, 0, lc};
Point(564) = {9.720489028166771, -8.999750418295104, 0, lc};
Point(565) = {10.45593111500884, -8.999748338743505, 0, lc};
Point(566) = {11.19352288737104, -8.999769800907963, 0, lc};
Point(567) = {11.93381874132557, -8.999815944256081, 0, lc};
Point(568) = {12.6766541742426, -8.999875808961223, 0, lc};
Point(569) = {13.42169811334395, -8.999935621901511, 0, lc};
Point(570) = {14.16861948585146, -8.999981609955062, 0, lc};
Point(572) = {15.66588513013361, -9.000097944049863, 0, lc};
Point(573) = {16.41556627617764, -9.000359550085697, 0, lc};
Point(574) = {17.16580056454227, -9.000736478936863, 0, lc};
Point(575) = {17.91625790265078, -9.001180391432721, 0, lc};
Point(576) = {18.66660819792643, -9.00164294840263, 0, lc};
Point(577) = {19.41652135779244, -9.002075810675951, 0, lc};
Point(578) = {20.16566728967208, -9.002430639082045, 0, lc};
Point(579) = {20.91371611549263, -9.002659125387645, 0, lc};
Point(580) = {21.66046002541155, -9.002731107024498, 0, lc};
Point(581) = {22.40601711100883, -9.002664956280707, 0, lc};
Point(582) = {23.15055932134797, -9.002486816611238, 0, lc};
Point(583) = {23.8942586721889, -9.002222512828633, 0, lc};
Point(584) = {24.63728724598791, -9.00189755110301, 0, lc};
Point(585) = {25.37981719189763, -9.001537118962064, 0, lc};
Point(586) = {26.12202072576712, -9.001166085291064, 0, lc};
Point(587) = {26.8640701301418, -9.000809000332856, 0, lc};
Point(588) = {27.60613775426345, -9.000490095687862, 0, lc};
Point(589) = {28.34839601407025, -9.000233284314076, 0, lc};
Point(590) = {29.09101739219676, -9.000062160527074, 0, lc};
Point(592) = {29.84568803671089, -8.521154516035388, 0, lc};
Point(593) = {29.8803703843456, -8.064814192824382, 0, lc};
Point(594) = {29.93843380801356, -7.631200813264948, 0, lc};
Point(595) = {30.02009063485031, -7.220536160255076, 0, lc};
Point(596) = {30.12555319199138, -6.833042016692748, 0, lc};
Point(597) = {30.25503380657231, -6.468940165475946, 0, lc};
Point(598) = {30.40874480572865, -6.128452389502659, 0, lc};
Point(599) = {30.58689851659592, -5.811800471670855, 0, lc};
Point(600) = {30.78970726630968, -5.519206194878526, 0, lc};
Point(601) = {31.01738338200546, -5.250891342023655, 0, lc};
Point(602) = {31.2701391908188, -5.007077696004218, 0, lc};
Point(603) = {31.54818701988524, -4.7879870397182, 0, lc};
Point(604) = {31.85173919634032, -4.593841156063585, 0, lc};
Point(605) = {32.18100804731957, -4.424861827938353, 0, lc};
Point(606) = {32.53620589995855, -4.28127083824049, 0, lc};
Point(607) = {32.91754508139277, -4.163289969867974, 0, lc};
Point(608) = {33.3252379187578, -4.071141005718788, 0, lc};
Point(609) = {33.75949673918915, -4.005045728690916, 0, lc};
Point(610) = {34.22053386982239, -3.96522592168234, 0, lc};
Point(612) = {34.70856180166206, -3.954883806479268, 0, lc};
Point(613) = {34.70856194826891, -3.957864242172335, 0, lc};
Point(614) = {34.70856207761572, -3.960844674733683, 0, lc};
Point(615) = {34.70856218970464, -3.963825104226734, 0, lc};
Point(616) = {34.70856228453778, -3.966805530714911, 0, lc};
Point(617) = {34.7085623621173, -3.969785954261655, 0, lc};
Point(618) = {34.7085624224453, -3.972766374930389, 0, lc};
Point(619) = {34.70856246552395, -3.975746792784536, 0, lc};
Point(620) = {34.70856249135534, -3.978727207887538, 0, lc};
Point(621) = {34.70856249994164, -3.981707620302809, 0, lc};
Point(622) = {34.70856249128497, -3.984688030093794, 0, lc};
Point(623) = {34.70856246538746, -3.987668437323915, 0, lc};
Point(624) = {34.70856242225123, -3.990648842056592, 0, lc};
Point(625) = {34.70856236187844, -3.993629244355269, 0, lc};
Point(626) = {34.7085622842712, -3.996609644283368, 0, lc};
Point(627) = {34.70856218943166, -3.999590041904312, 0, lc};
Point(628) = {34.70856207736194, -4.002570437281543, 0, lc};
Point(629) = {34.70856194806417, -4.005550830478483, 0, lc};
Point(630) = {34.7085618015405, -4.008531221558553, 0, lc};
Point(632) = {34.70580177022087, -4.086068185500692, 0, lc};
Point(633) = {34.69764315204544, -4.159305681869101, 0, lc};
Point(634) = {34.68426720369187, -4.231006214718564, 0, lc};
Point(635) = {34.66585527040315, -4.300951894234673, 0, lc};
Point(636) = {34.64258862224018, -4.368924825760476, 0, lc};
Point(637) = {34.61464845408177, -4.43470710979647, 0, lc};
Point(638) = {34.5822158856246, -4.498080842000628, 0, lc};
Point(639) = {34.54547196138327, -4.558828113188356, 0, lc};
Point(640) = {34.50459765069028, -4.616731009332523, 0, lc};
Point(641) = {34.45977384769601, -4.671571611563454, 0, lc};
Point(642) = {34.41118137136878, -4.723131996168929, 0, lc};
Point(643) = {34.35900096549474, -4.771194234594182, 0, lc};
Point(644) = {34.303413298678, -4.815540393441903, 0, lc};
Point(645) = {34.24459896434055, -4.855952534472238, 0, lc};
Point(646) = {34.18273848072227, -4.892212714602785, 0, lc};
Point(647) = {34.11801229088093, -4.924102985908606, 0, lc};
Point(648) = {34.05060076269223, -4.951405395622208, 0, lc};
Point(649) = {33.98068418884974, -4.973901986133558, 0, lc};
Point(650) = {33.90844278686495, -4.99137479499008, 0, lc};
Point(652) = {33.67431342202389, -5.025996660573455, 0, lc};
Point(653) = {33.51677910879087, -5.052676800743033, 0, lc};
Point(654) = {33.36166704369752, -5.083919761720937, 0, lc};
Point(655) = {33.20919058845781, -5.119998512048211, 0, lc};
Point(656) = {33.0595631029116, -5.161185676428474, 0, lc};
Point(657) = {32.91299786576587, -5.207753709665008, 0, lc};
Point(658) = {32.769707995336, -5.25997507059786, 0, lc};
Point(659) = {32.62990637028708, -5.318122396040911, 0, lc};
Point(660) = {32.49380555037516, -5.382468674718974, 0, lc};
Point(661) = {32.36161769718851, -5.453287421204895, 0, lc};
Point(662) = {32.2335544948889, -5.530852849856615, 0, lc};
Point(663) = {32.10982707095292, -5.615440048754277, 0, lc};
Point(664) = {31.99064591691318, -5.707325153637326, 0, lc};
Point(665) = {31.87622080909961, -5.806785521841565, 0, lc};
Point(666) = {31.7667607293808, -5.914099906236266, 0, lc};
Point(667) = {31.66247378590513, -6.029548629161266, 0, lc};
Point(668) = {31.56356713384221, -6.153413756364037, 0, lc};
Point(669) = {31.47024689612402, -6.285979270936777, 0, lc};
Point(670) = {31.38271808418627, -6.427531247253508, 0, lc};
Point(672) = {31.26598161037611, -6.650146832658305, 0, lc};
Point(673) = {31.23266447979482, -6.722130486696834, 0, lc};
Point(674) = {31.20117188150299, -6.794329718886418, 0, lc};
Point(675) = {31.17144262371416, -6.866764959817441, 0, lc};
Point(676) = {31.14341556831818, -6.939456338807014, 0, lc};
Point(677) = {31.11702963088117, -7.012423683898976, 0, lc};
Point(678) = {31.09222378064556, -7.085686521863893, 0, lc};
Point(679) = {31.06893704053006, -7.15926407819906, 0, lc};
Point(680) = {31.04710848712968, -7.233175277128498, 0, lc};
Point(681) = {31.02667725071571, -7.307438741602965, 0, lc};
Point(682) = {31.00758251523576, -7.382072793299922, 0, lc};
Point(683) = {30.9897635183137, -7.457095452623579, 0, lc};
Point(684) = {30.97315955124972, -7.532524438704872, 0, lc};
Point(685) = {30.95770995902027, -7.608377169401458, 0, lc};
Point(686) = {30.94335414027812, -7.684670761297725, 0, lc};
Point(687) = {30.93003154735233, -7.761422029704788, 0, lc};
Point(688) = {30.91768168624824, -7.838647488660489, 0, lc};
Point(689) = {30.90624411664749, -7.916363350929398, 0, lc};
Point(690) = {30.89565845190802, -7.994585528002814, 0, lc};
Point(692) = {30.873465392032, -8.181567931970767, 0, lc};
Point(693) = {30.86317723218947, -8.280262410178656, 0, lc};
Point(694) = {30.85482223220097, -8.370470958007747, 0, lc};
Point(695) = {30.84822206337289, -8.453251855804146, 0, lc};
Point(696) = {30.8431977971365, -8.529663759706452, 0, lc};
Point(697) = {30.83956998234773, -8.600765643533451, 0, lc};
Point(698) = {30.83715871840402, -8.667616693827917, 0, lc};
Point(699) = {30.83578372417785, -8.731276158056314, 0, lc};
Point(700) = {30.83526440276733, -8.79280314596453, 0, lc};
Point(701) = {30.83541990206351, -8.853256384089699, 0, lc};
Point(702) = {30.83606917113472, -8.913693923427939, 0, lc};
Point(703) = {30.8370310124277, -8.975172800258118, 0, lc};
Point(704) = {30.83812412978562, -9.038748650121704, 0, lc};
Point(705) = {30.83916717228301, -9.105475274958504, 0, lc};
Point(706) = {30.8399787738776, -9.176404163398532, 0, lc};
Point(707) = {30.84037758887896, -9.252583964209817, 0, lc};
Point(708) = {30.84018232323407, -9.335059912902196, 0, lc};
Point(709) = {30.83921176162979, -9.424873211487224, 0, lc};
Point(710) = {30.83728479041219, -9.523060361394002, 0, lc};
Point(712) = {30.95138778637061, -9.764779257891286, 0, lc};
Point(713) = {31.06907954976788, -9.898222920297888, 0, lc};
Point(714) = {31.18732863978062, -10.03094818058831, 0, lc};
Point(715) = {31.30616776550509, -10.1629197921335, 0, lc};
Point(716) = {31.42562933835454, -10.29410887217356, 0, lc};
Point(717) = {31.54574552466122, -10.42448755576408, 0, lc};
Point(718) = {31.66654831254434, -10.55402394062905, 0, lc};
Point(719) = {31.78806954118785, -10.68268184090798, 0, lc};
Point(720) = {31.91034088116228, -10.81042519708392, 0, lc};
Point(721) = {32.03339377849412, -10.93722461509829, 0, lc};
Point(722) = {32.15725938591385, -11.0630629236204, 0, lc};
Point(723) = {32.28196850518186, -11.18793733846763, 0, lc};
Point(724) = {32.40755155767999, -11.31185730108809, 0, lc};
Point(725) = {32.53403858964615, -11.43483880764517, 0, lc};
Point(726) = {32.66145930660199, -11.5568975604043, 0, lc};
Point(727) = {32.78984312175882, -11.67804404764061, 0, lc};
Point(728) = {32.91921919856593, -11.79828318598296, 0, lc};
Point(729) = {33.04961647116941, -11.91761893380963, 0, lc};
Point(730) = {33.1810636414587, -12.03605979983514, 0, lc};
Point(732) = {33.41608076489167, -12.24322601052443, 0, lc};
Point(733) = {33.51903227702434, -12.33205389631918, 0, lc};
Point(734) = {33.62247466388791, -12.42008830862077, 0, lc};
Point(735) = {33.72643886847082, -12.50731948926657, 0, lc};
Point(736) = {33.83095582993334, -12.59373719189464, 0, lc};
Point(737) = {33.93605648360768, -12.67933068194368, 0, lc};
Point(738) = {34.04177176099785, -12.76408873665302, 0, lc};
Point(739) = {34.14813258977977, -12.84799964506264, 0, lc};
Point(740) = {34.25516989380122, -12.93105120801321, 0, lc};
Point(741) = {34.36291459308185, -13.013230738146, 0, lc};
Point(742) = {34.47139760381313, -13.09452505990296, 0, lc};
Point(743) = {34.5806498383585, -13.17492050952668, 0, lc};
Point(744) = {34.69070220525316, -13.2544029350604, 0, lc};
Point(745) = {34.80158560920427, -13.33295769634801, 0, lc};
Point(746) = {34.91333095109078, -13.41056966503405, 0, lc};
Point(747) = {35.02596912796356, -13.4872232245637, 0, lc};
Point(748) = {35.13953103304534, -13.5629022701828, 0, lc};
Point(749) = {35.2540475557307, -13.63759020893785, 0, lc};
Point(750) = {35.3695495815861, -13.71126995967597, 0, lc};
Point(752) = {35.64969830732011, -13.88324720573847, 0, lc};
Point(753) = {35.81349799617536, -13.97952691301674, 0, lc};
Point(754) = {35.9776059314353, -14.07269008889329, 0, lc};
Point(755) = {36.14216131774533, -14.16266749418418, 0, lc};
Point(756) = {36.30730370421487, -14.24939649297253, 0, lc};
Point(757) = {36.47317281262934, -14.33281089973699, 0, lc};
Point(758) = {36.63990849412698, -14.41283744412004, 0, lc};
Point(759) = {36.80765081862085, -14.48940075263768, 0, lc};
Point(760) = {36.97654018940314, -14.56243151517823, 0, lc};
Point(761) = {37.14671738195645, -14.63187185113654, 0, lc};
Point(762) = {37.31832346823707, -14.69767462379768, 0, lc};
Point(763) = {37.49149965806964, -14.75979710652463, 0, lc};
Point(764) = {37.66638713553645, -14.81819224090489, 0, lc};
Point(765) = {37.843126973355, -14.87280173184601, 0, lc};
Point(766) = {38.021860170465, -14.92355411033746, 0, lc};
Point(767) = {38.20272779090294, -14.97036809996202, 0, lc};
Point(768) = {38.38587111429531, -15.01315831307303, 0, lc};
Point(769) = {38.57143168397656, -15.05183836776995, 0, lc};
Point(770) = {38.75955121711834, -15.08631857440547, 0, lc};
Point(772) = {39.06523641891796, -15.132299960423, 0, lc};
Point(773) = {39.18118705679842, -15.14638011975936, 0, lc};
Point(774) = {39.29810190235506, -15.15874639903204, 0, lc};
Point(775) = {39.415859364093, -15.16940067930756, 0, lc};
Point(776) = {39.53433786719151, -15.17834553512365, 0, lc};
Point(777) = {39.65341585350404, -15.18558423448922, 0, lc};
Point(778) = {39.7729717815582, -15.19112073888436, 0, lc};
Point(779) = {39.89288412655569, -15.19495970326037, 0, lc};
Point(780) = {40.01303138037245, -15.19710647603974, 0, lc};
Point(781) = {40.13329205155857, -15.19756709911613, 0, lc};
Point(782) = {40.25354466533823, -15.19634830785442, 0, lc};
Point(783) = {40.37366776360984, -15.19345753109065, 0, lc};
Point(784) = {40.49353990494594, -15.18890289113209, 0, lc};
Point(785) = {40.61303966459323, -15.18269320375715, 0, lc};
Point(786) = {40.73204563447259, -15.17483797821549, 0, lc};
Point(787) = {40.85043642317901, -15.1653474172279, 0, lc};
Point(788) = {40.96809065598168, -15.15423241698641, 0, lc};
Point(789) = {41.08488697482395, -15.14150456715422, 0, lc};
Point(790) = {41.20070403832328, -15.12717615086573, 0, lc};
Point(792) = {41.40427485012655, -15.09754043026982, 0, lc};
Point(793) = {41.49243635697518, -15.08249426210645, 0, lc};
Point(794) = {41.57993618909974, -15.0661164252519, 0, lc};
Point(795) = {41.66680545252876, -15.04840227352341, 0, lc};
Point(796) = {41.75307521771273, -15.02934760727692, 0, lc};
Point(797) = {41.83877652470021, -15.00894855114378, 0, lc};
Point(798) = {41.92394038831374, -14.98720143176764, 0, lc};
Point(799) = {42.00859780332598, -14.96410265554128, 0, lc};
Point(800) = {42.09277974963564, -14.9396485863434, 0, lc};
Point(801) = {42.17651719744359, -14.91383542327548, 0, lc};
Point(802) = {42.25984111242883, -14.88665907839857, 0, lc};
Point(803) = {42.34278246092449, -14.85811505447018, 0, lc};
Point(804) = {42.42537221509394, -14.82819832268104, 0, lc};
Point(805) = {42.50764135810672, -14.79690320039199, 0, lc};
Point(806) = {42.58962088931463, -14.76422322887075, 0, lc};
Point(807) = {42.67134182942772, -14.73015105102878, 0, lc};
Point(808) = {42.75283522569034, -14.69467828915809, 0, lc};
Point(809) = {42.83413215705712, -14.65779542266811, 0, lc};
Point(810) = {42.91526373936906, -14.61949166582245, 0, lc};
Point(812) = {43.09319263309528, -14.53050096896046, 0, lc};
Point(813) = {43.18931287345966, -14.4801084649607, 0, lc};
Point(814) = {43.28467015485522, -14.42864616714044, 0, lc};
Point(815) = {43.37931276895081, -14.37618245812495, 0, lc};
Point(816) = {43.47328899585163, -14.32278526950075, 0, lc};
Point(817) = {43.56664710409913, -14.26852208181567, 0, lc};
Point(818) = {43.65943535067107, -14.21345992457885, 0, lc};
Point(819) = {43.75170198098157, -14.15766537626067, 0, lc};
Point(820) = {43.84349522888094, -14.10120456429287, 0, lc};
Point(821) = {43.93486331665589, -14.04414316506841, 0, lc};
Point(822) = {44.0258544550294, -13.9865464039416, 0, lc};
Point(823) = {44.1165168431607, -13.92847905522803, 0, lc};
Point(824) = {44.20689866864541, -13.87000544220455, 0, lc};
Point(825) = {44.29704810751537, -13.81118943710935, 0, lc};
Point(826) = {44.38701332423877, -13.75209446114187, 0, lc};
Point(827) = {44.47684247172007, -13.69278348446285, 0, lc};
Point(828) = {44.56658369130003, -13.63331902619436, 0, lc};
Point(829) = {44.65628511275576, -13.57376315441971, 0, lc};
Point(830) = {44.7459948543006, -13.51417748618354, 0, lc};
Point(832) = {44.89849447633637, -13.41298871790794, 0, lc};
Point(833) = {44.96117026802909, -13.37129040509774, 0, lc};
Point(834) = {45.02380192758098, -13.3295471570921, 0, lc};
Point(835) = {45.08640298085587, -13.28777785264886, 0, lc};
Point(836) = {45.14898694966284, -13.2460013412527, 0, lc};
Point(837) = {45.21156735175619, -13.20423644311518, 0, lc};
Point(838) = {45.27415770083545, -13.16250194917475, 0, lc};
Point(839) = {45.33677150654539, -13.12081662109671, 0, lc};
Point(840) = {45.39942227447603, -13.07919919127323, 0, lc};
Point(841) = {45.46212350616259, -13.03766836282337, 0, lc};
Point(842) = {45.52488869908557, -12.99624280959306, 0, lc};
Point(843) = {45.58773134667068, -12.95494117615506, 0, lc};
Point(844) = {45.65066493828886, -12.91378207780906, 0, lc};
Point(845) = {45.7137029592563, -12.87278410058158, 0, lc};
Point(846) = {45.77685889083444, -12.83196580122601, 0, lc};
Point(847) = {45.8401462102299, -12.79134570722266, 0, lc};
Point(848) = {45.9035783905946, -12.75094231677865, 0, lc};
Point(849) = {45.96716890102566, -12.710774098828, 0, lc};
Point(850) = {46.03093120656545, -12.67085949303159, 0, lc};
Point(852) = {46.18841101688442, -12.57417502308259, 0, lc};
Point(853) = {46.28231523591536, -12.5181875754216, 0, lc};
Point(854) = {46.37660088199824, -12.46323837400137, 0, lc};
Point(855) = {46.47127740565293, -12.4093114051218, 0, lc};
Point(856) = {46.56635425121528, -12.35639083417554, 0, lc};
Point(857) = {46.66184085683707, -12.30446100564794, 0, lc};
Point(858) = {46.75774665448613, -12.25350644311713, 0, lc};
Point(859) = {46.85408106994618, -12.20351184925394, 0, lc};
Point(860) = {46.95085352281699, -12.15446210582196, 0, lc};
Point(861) = {47.04807342651425, -12.10634227367751, 0, lc};
Point(862) = {47.14575018826967, -12.05913759276964, 0, lc};
Point(863) = {47.2438932091309, -12.01283348214016, 0, lc};
Point(864) = {47.34251188396157, -11.96741553992358, 0, lc};
Point(865) = {47.44161560144133, -11.92286954334718, 0, lc};
Point(866) = {47.54121374406573, -11.87918144873096, 0, lc};
Point(867) = {47.64131568814636, -11.83633739148766, 0, lc};
Point(868) = {47.74193080381075, -11.79432368612276, 0, lc};
Point(869) = {47.84306845500242, -11.75312682623447, 0, lc};
Point(870) = {47.94473799948086, -11.71273348451375, 0, lc};
Point(872) = {48.21811640474863, -11.60878671375354, 0, lc};
Point(873) = {48.38965191154345, -11.54654819523618, 0, lc};
Point(874) = {48.56155199807912, -11.48634268465716, 0, lc};
Point(875) = {48.73381371373057, -11.42809768404089, 0, lc};
Point(876) = {48.90643446095779, -11.37174047892793, 0, lc};
Point(877) = {49.0794119878891, -11.31719814733184, 0, lc};
Point(878) = {49.25274438090448, -11.26439756869582, 0, lc};
Point(879) = {49.42643005721882, -11.21326543284956, 0, lc};
Point(880) = {49.60046775746524, -11.16372824896597, 0, lc};
Point(881) = {49.77485653827828, -11.11571235451792, 0, lc};
Point(882) = {49.94959576487729, -11.06914392423502, 0, lc};
Point(883) = {50.12468510364967, -11.02394897906037, 0, lc};
Point(884) = {50.30012451473412, -10.98005339510732, 0, lc};
Point(885) = {50.47591424460398, -10.9373829126162, 0, lc};
Point(886) = {50.65205481865049, -10.89586314491114, 0, lc};
Point(887) = {50.82854703376605, -10.85541958735677, 0, lc};
Point(888) = {51.00539195092751, -10.815977626315, 0, lc};
Point(889) = {51.1825908877795, -10.77746254810178, 0, lc};
Point(890) = {51.36014541121765, -10.73979954794384, 0, lc};
Point(892) = {51.83099792147405, -10.64395553123002, 0, lc};
Point(893) = {52.12411291046519, -10.58714943626519, 0, lc};
Point(894) = {52.41741323397718, -10.53242411130065, 0, lc};
Point(895) = {52.71091010155003, -10.47970747622031, 0, lc};
Point(896) = {53.00461498554287, -10.42892677028154, 0, lc};
Point(897) = {53.29853961144512, -10.38000860886443, 0, lc};
Point(898) = {53.59269594818755, -10.332879040221, 0, lc};
Point(899) = {53.88709619845331, -10.28746360222444, 0, lc};
Point(900) = {54.18175278898909, -10.24368737911833, 0, lc};
Point(901) = {54.47667836091615, -10.20147505826587, 0, lc};
Point(902) = {54.77188576004139, -10.16075098689913, 0, lc};
Point(903) = {55.06738802716848, -10.12143922886824, 0, lc};
Point(904) = {55.3631983884089, -10.08346362139064, 0, lc};
Point(905) = {55.65933024549305, -10.04674783180032, 0, lc};
Point(906) = {55.9557971660813, -10.01121541429703, 0, lc};
Point(907) = {56.25261287407508, -9.976789866695515, 0, lc};
Point(908) = {56.54979123992801, -9.943394687174752, 0, lc};
Point(909) = {56.84734627095686, -9.910953431027167, 0, lc};
Point(910) = {57.14529210165278, -9.879389767407867, 0, lc};
Point(912) = {57.90065610572726, -9.803130037716498, 0, lc};
Point(913) = {58.35828074491458, -9.759563952014343, 0, lc};
Point(914) = {58.81656861266552, -9.717865554201472, 0, lc};
Point(915) = {59.27557084572495, -9.677971113006555, 0, lc};
Point(916) = {59.73527542067369, -9.639818942235648, 0, lc};
Point(917) = {60.19560065667531, -9.603349872834245, 0, lc};
Point(918) = {60.65642922522706, -9.568506411015997, 0, lc};
Point(919) = {61.11763956024932, -9.535231844841062, 0, lc};
Point(920) = {61.5791162673101, -9.503469897744541, 0, lc};
Point(921) = {62.04074559508508, -9.473164804981387, 0, lc};
Point(922) = {62.50240965912113, -9.444261437507654, 0, lc};
Point(923) = {62.96398693883474, -9.416705253744441, 0, lc};
Point(924) = {63.42535686387681, -9.39044213306547, 0, lc};
Point(925) = {63.88640194692173, -9.365418275291653, 0, lc};
Point(926) = {64.34700463063797, -9.341580251124579, 0, lc};
Point(927) = {64.80704340540395, -9.318875078550409, 0, lc};
Point(928) = {65.26639517548575, -9.297250126051154, 0, lc};
Point(929) = {65.72494208656558, -9.276652887577466, 0, lc};
Point(930) = {66.18256778732147, -9.257031053376966, 0, lc};
Point(932) = {67.3052295461604, -9.212519856298245, 0, lc};
Point(933) = {67.96816490854732, -9.18848507211929, 0, lc};
Point(934) = {68.62756679036886, -9.166173178547057, 0, lc};
Point(935) = {69.28312633801245, -9.145529159895204, 0, lc};
Point(936) = {69.93533225580786, -9.126500119312048, 0, lc};
Point(937) = {70.5851570693339, -9.109034083193029, 0, lc};
Point(938) = {71.23358238740948, -9.093079338265522, 0, lc};
Point(939) = {71.88159221088146, -9.078584444374771, 0, lc};
Point(940) = {72.53017293262471, -9.065498234483877, 0, lc};
Point(941) = {73.18031333754199, -9.053769814673812, 0, lc};
Point(942) = {73.83300262372202, -9.043348443467096, 0, lc};
Point(943) = {74.48923264800113, -9.034183500648577, 0, lc};
Point(944) = {75.14999797742459, -9.02622447903112, 0, lc};
Point(945) = {75.81629317903769, -9.019420871427579, 0, lc};
Point(946) = {76.48911281988569, -9.013722170650821, 0, lc};
Point(947) = {77.1694514670139, -9.009077869513703, 0, lc};
Point(948) = {77.85830368746755, -9.005437460829089, 0, lc};
Point(949) = {78.55671196833207, -9.002750623818734, 0, lc};
Point(950) = {79.26821217155079, -9.000976938494704, 0, lc};
Point(952) = {79.99938143048652, -8.550922116889465, 0, lc};
Point(953) = {79.99795596285547, -8.101355999881811, 0, lc};
Point(954) = {79.99636895847935, -7.651514287727634, 0, lc};
Point(955) = {79.99526454769097, -7.201518816206472, 0, lc};
Point(956) = {79.99504519338237, -6.751459488719874, 0, lc};
Point(957) = {79.99558300689036, -6.301356689706923, 0, lc};
Point(958) = {79.99667897495674, -5.851221481700507, 0, lc};
Point(959) = {79.99813322456623, -5.401064713294686, 0, lc};
Point(960) = {79.99974502294664, -4.950897019144753, 0, lc};
Point(961) = {80.00131277756869, -4.500728819967144, 0, lc};
Point(962) = {80.00263403614611, -4.050570322539496, 0, lc};
Point(963) = {80.0035055484645, -3.600431517046883, 0, lc};
Point(964) = {80.00379926104237, -3.1503191645427, 0, lc};
Point(965) = {80.00361071664298, -2.700231085788117, 0, lc};
Point(966) = {80.00307648573555, -2.250163488604515, 0, lc};
Point(967) = {80.00233313878933, -1.800112580813287, 0, lc};
Point(968) = {80.00151724627356, -1.350074570235829, 0, lc};
Point(969) = {80.0007653786575, -0.9000456646935211, 0, lc};
Point(970) = {80.00021410641043, -0.4500220720077999, 0, lc};
Point(972) = {80.00021412414165, 0.4500220690571709, 0, lc};
Point(973) = {80.00076544764643, 0.9000456548989045, 0, lc};
Point(974) = {80.00151739714281, 1.350074550926997, 0, lc};
Point(975) = {80.00233339925759, 1.800112550543161, 0, lc};
Point(976) = {80.00307688061767, 2.25016344714911, 0, lc};
Point(977) = {80.00361126784989, 2.700231034146646, 0, lc};
Point(978) = {80.00379998758112, 3.15031910493748, 0, lc};
Point(979) = {80.00350646643821, 3.600431452923356, 0, lc};
Point(980) = {80.00263513127692, 4.0505702592848, 0, lc};
Point(981) = {80.00131399216073, 4.500728763147839, 0, lc};
Point(982) = {79.99974629630621, 4.950896972038739, 0, lc};
Point(983) = {79.9981344938967, 5.40106467687982, 0, lc};
Point(984) = {79.99668017589231, 5.851221454659925, 0, lc};
Point(985) = {79.99558407402995, 6.301356668434246, 0, lc};
Point(986) = {79.99504606082331, 6.751459467324443, 0, lc};
Point(987) = {79.99526514956285, 7.201518786518578, 0, lc};
Point(988) = {79.99636928174738, 7.651514246527382, 0, lc};
Point(989) = {79.99795609883216, 8.101355958842232, 0, lc};
Point(990) = {79.99938146255619, 8.550922089228893, 0, lc};
Point(992) = {1.491708721898695, -9, 0, lc};
Point(993) = {2.983417443797389, -9, 0, lc};
Point(994) = {4.475126165696083, -9, 0, lc};
Point(995) = {5.966834887594779, -9, 0, lc};
Point(996) = {7.458543609493472, -9, 0, lc};
Point(997) = {8.950252331392166, -9, 0, lc};
Point(998) = {10.44196105329086, -9, 0, lc};
Point(999) = {11.93366977518956, -9, 0, lc};
Point(1000) = {13.42537849708825, -9, 0, lc};
Point(1001) = {14.91708721898694, -9, 0, lc};
Point(1002) = {16.40879594088564, -9, 0, lc};
Point(1003) = {17.90050466278433, -9, 0, lc};
Point(1004) = {19.39221338468303, -9, 0, lc};
Point(1005) = {20.88392210658172, -9, 0, lc};
Point(1006) = {22.37563082848042, -9, 0, lc};
Point(1007) = {23.86733955037911, -9, 0, lc};
Point(1008) = {25.3590482722778, -9, 0, lc};
Point(1009) = {26.8507569941765, -9, 0, lc};
Point(1010) = {28.34246571607519, -9, 0, lc};
Point(1012) = {29.84636040597344, -8.507810578340125, 0, lc};
Point(1013) = {29.88291830997208, -8.040861639842298, 0, lc};
Point(1014) = {29.94384814996982, -7.599153184506513, 0, lc};
Point(1015) = {30.02914992596666, -7.182685212332776, 0, lc};
Point(1016) = {30.13882363796259, -6.79145772332108, 0, lc};
Point(1017) = {30.27286928595761, -6.425470717471429, 0, lc};
Point(1018) = {30.43128686995174, -6.084724194783824, 0, lc};
Point(1019) = {30.61407638994496, -5.769218155258268, 0, lc};
Point(1020) = {30.82123784593727, -5.478952598894751, 0, lc};
Point(1021) = {31.05277123792868, -5.21392752569328, 0, lc};
Point(1022) = {31.30867656591919, -4.974142935653854, 0, lc};
Point(1023) = {31.58895382990879, -4.759598828776473, 0, lc};
Point(1024) = {31.89360302989748, -4.570295205061139, 0, lc};
Point(1025) = {32.22262416588528, -4.406232064507847, 0, lc};
Point(1026) = {32.57601723787217, -4.2674094071166, 0, lc};
Point(1027) = {32.95378224585816, -4.153827232887398, 0, lc};
Point(1028) = {33.35591918984323, -4.065485541820241, 0, lc};
Point(1029) = {33.78242806982741, -4.002384333915129, 0, lc};
Point(1030) = {34.23330888581069, -3.964523609172063, 0, lc};
Point(1032) = {34.70856163779305, -3.95488377974075, 0, lc};
Point(1033) = {34.70856163779305, -3.957864191890454, 0, lc};
Point(1034) = {34.70856163779305, -3.960844604040164, 0, lc};
Point(1035) = {34.70856163779305, -3.963825016189868, 0, lc};
Point(1036) = {34.70856163779305, -3.966805428339579, 0, lc};
Point(1037) = {34.70856163779305, -3.96978584048929, 0, lc};
Point(1038) = {34.70856163779305, -3.972766252638993, 0, lc};
Point(1039) = {34.70856163779305, -3.975746664788704, 0, lc};
Point(1040) = {34.70856163779305, -3.978727076938408, 0, lc};
Point(1041) = {34.70856163779305, -3.981707489088119, 0, lc};
Point(1042) = {34.70856163779304, -3.984687901237829, 0, lc};
Point(1043) = {34.70856163779304, -3.987668313387533, 0, lc};
Point(1044) = {34.70856163779304, -3.990648725537244, 0, lc};
Point(1045) = {34.70856163779304, -3.993629137686947, 0, lc};
Point(1046) = {34.70856163779304, -3.996609549836658, 0, lc};
Point(1047) = {34.70856163779304, -3.999589961986369, 0, lc};
Point(1048) = {34.70856163779303, -4.002570374136073, 0, lc};
Point(1049) = {34.70856163779303, -4.005550786285784, 0, lc};
Point(1050) = {34.70856163779303, -4.008531198435487, 0, lc};
Point(1052) = {34.7063222244834, -4.07839816863157, 0, lc};
Point(1053) = {34.69940480279251, -4.146529470047728, 0, lc};
Point(1054) = {34.68754644217778, -4.215444817257815, 0, lc};
Point(1055) = {34.67054186596977, -4.284630706580073, 0, lc};
Point(1056) = {34.64825506990334, -4.353529524807218, 0, lc};
Point(1057) = {34.62062940237694, -4.421551112105433, 0, lc};
Point(1058) = {34.58769531245656, -4.48808687439215, 0, lc};
Point(1059) = {34.54957504883313, -4.552525882532581, 0, lc};
Point(1060) = {34.50648375459376, -4.614272172931734, 0, lc};
Point(1061) = {34.45872664006728, -4.672762296303522, 0, lc};
Point(1062) = {34.40669220733486, -4.727482076366643, 0, lc};
Point(1063) = {34.35084181263323, -4.777981555858551, 0, lc};
Point(1064) = {34.29169614836719, -4.823887227266016, 0, lc};
Point(1065) = {34.22981946719423, -4.864910857882763, 0, lc};
Point(1066) = {34.16580252678571, -4.90085449689693, 0, lc};
Point(1067) = {34.10024528862067, -4.931611560413715, 0, lc};
Point(1068) = {34.03374035636966, -4.957164190016445, 0, lc};
Point(1069) = {33.96685800274977, -4.977577337050146, 0, lc};
Point(1070) = {33.90013343301631, -4.992990213141077, 0, lc};
Point(1072) = {33.52588227228965, -5.051281549627163, 0, lc};
Point(1073) = {33.22126674176607, -5.117779190734945, 0, lc};
Point(1074) = {32.92226629082842, -5.205871731341372, 0, lc};
Point(1075) = {32.63134035344507, -5.318378551702244, 0, lc};
Point(1076) = {32.3528595568872, -5.458297224577334, 0, lc};
Point(1077) = {32.09175543811464, -5.628410671826153, 0, lc};
Point(1078) = {31.85269945494516, -5.828485788467989, 0, lc};
Point(1079) = {31.6400369817163, -6.056272806491343, 0, lc};
Point(1080) = {31.45599021792431, -6.307890597596343, 0, lc};
Point(1081) = {31.30118451870961, -6.578358024907164, 0, lc};
Point(1082) = {31.1742283331504, -6.863068902940552, 0, lc};
Point(1083) = {31.07201866343215, -7.15776371999533, 0, lc};
Point(1084) = {30.9915827336961, -7.458926065619404, 0, lc};
Point(1085) = {30.93036219896677, -7.764667581170237, 0, lc};
Point(1086) = {30.88586435906402, -8.073329630098762, 0, lc};
Point(1087) = {30.85600953973498, -8.38368450263882, 0, lc};
Point(1088) = {30.83927490491749, -8.695085461002789, 0, lc};
Point(1089) = {30.83417692302404, -9.006926802783081, 0, lc};
Point(1090) = {30.8368120597611, -9.318750665786023, 0, lc};
Point(1092) = {32.84258675073072, -11.72643306234215, 0, lc};
Point(1093) = {34.65326300857291, -13.22691947250638, 0, lc};
Point(1094) = {36.27137121726709, -14.22810080465868, 0, lc};
Point(1095) = {37.70203340423109, -14.82596618342409, 0, lc};
Point(1096) = {38.95037159688275, -15.11650473342762, 0, lc};
Point(1097) = {40.02150782263988, -15.19570557929427, 0, lc};
Point(1098) = {40.92157317309573, -15.15748479033818, 0, lc};
Point(1099) = {41.68074226863359, -15.04636260331528, 0, lc};
Point(1100) = {42.35370653543404, -14.85649110625437, 0, lc};
Point(1101) = {42.9962611305295, -14.57975484547579, 0, lc};
Point(1102) = {43.66420121095241, -14.20803836729987, 0, lc};
Point(1103) = {44.41332193373524, -13.73322621804697, 0, lc};
Point(1104) = {45.29941845591043, -13.14720294403742, 0, lc};
Point(1105) = {46.40419074311542, -12.44671698600387, 0, lc};
Point(1106) = {48.04694878882155, -11.67313051274428, 0, lc};
Point(1107) = {50.67469148766712, -10.89178059834812, 0, lc};
Point(1108) = {54.73564339892999, -10.16823444805474, 0, lc};
Point(1109) = {60.6780290818881, -9.568059267103457, 0, lc};
Point(1110) = {68.95007309581928, -9.156822260733637, 0, lc};
Point(1112) = {1.491708721898695, 9, 0, lc};
Point(1113) = {2.983417443797389, 9, 0, lc};
Point(1114) = {4.475126165696083, 9, 0, lc};
Point(1115) = {5.966834887594779, 9, 0, lc};
Point(1116) = {7.458543609493472, 9, 0, lc};
Point(1117) = {8.950252331392166, 9, 0, lc};
Point(1118) = {10.44196105329086, 9, 0, lc};
Point(1119) = {11.93366977518956, 9, 0, lc};
Point(1120) = {13.42537849708825, 9, 0, lc};
Point(1121) = {14.91708721898694, 9, 0, lc};
Point(1122) = {16.40879594088564, 9, 0, lc};
Point(1123) = {17.90050466278433, 9, 0, lc};
Point(1124) = {19.39221338468303, 9, 0, lc};
Point(1125) = {20.88392210658172, 9, 0, lc};
Point(1126) = {22.37563082848042, 9, 0, lc};
Point(1127) = {23.86733955037911, 9, 0, lc};
Point(1128) = {25.3590482722778, 9, 0, lc};
Point(1129) = {26.8507569941765, 9, 0, lc};
Point(1130) = {28.34246571607519, 9, 0, lc};
Point(1132) = {29.84636040597344, 8.507810578340125, 0, lc};
Point(1133) = {29.88291830997208, 8.040861639842298, 0, lc};
Point(1134) = {29.94384814996982, 7.599153184506513, 0, lc};
Point(1135) = {30.02914992596666, 7.182685212332776, 0, lc};
Point(1136) = {30.13882363796259, 6.79145772332108, 0, lc};
Point(1137) = {30.27286928595761, 6.425470717471429, 0, lc};
Point(1138) = {30.43128686995174, 6.084724194783824, 0, lc};
Point(1139) = {30.61407638994496, 5.769218155258268, 0, lc};
Point(1140) = {30.82123784593727, 5.478952598894751, 0, lc};
Point(1141) = {31.05277123792868, 5.21392752569328, 0, lc};
Point(1142) = {31.30867656591919, 4.974142935653854, 0, lc};
Point(1143) = {31.58895382990879, 4.759598828776473, 0, lc};
Point(1144) = {31.89360302989748, 4.570295205061139, 0, lc};
Point(1145) = {32.22262416588528, 4.406232064507847, 0, lc};
Point(1146) = {32.57601723787217, 4.2674094071166, 0, lc};
Point(1147) = {32.95378224585816, 4.153827232887398, 0, lc};
Point(1148) = {33.35591918984323, 4.065485541820241, 0, lc};
Point(1149) = {33.78242806982741, 4.002384333915129, 0, lc};
Point(1150) = {34.23330888581069, 3.964523609172063, 0, lc};
Point(1152) = {34.70856163779305, 3.95488377974075, 0, lc};
Point(1153) = {34.70856163779305, 3.957864191890454, 0, lc};
Point(1154) = {34.70856163779305, 3.960844604040164, 0, lc};
Point(1155) = {34.70856163779305, 3.963825016189868, 0, lc};
Point(1156) = {34.70856163779305, 3.966805428339579, 0, lc};
Point(1157) = {34.70856163779305, 3.96978584048929, 0, lc};
Point(1158) = {34.70856163779305, 3.972766252638993, 0, lc};
Point(1159) = {34.70856163779305, 3.975746664788704, 0, lc};
Point(1160) = {34.70856163779305, 3.978727076938408, 0, lc};
Point(1161) = {34.70856163779305, 3.981707489088119, 0, lc};
Point(1162) = {34.70856163779304, 3.984687901237829, 0, lc};
Point(1163) = {34.70856163779304, 3.987668313387533, 0, lc};
Point(1164) = {34.70856163779304, 3.990648725537244, 0, lc};
Point(1165) = {34.70856163779304, 3.993629137686947, 0, lc};
Point(1166) = {34.70856163779304, 3.996609549836658, 0, lc};
Point(1167) = {34.70856163779304, 3.999589961986369, 0, lc};
Point(1168) = {34.70856163779303, 4.002570374136073, 0, lc};
Point(1169) = {34.70856163779303, 4.005550786285784, 0, lc};
Point(1170) = {34.70856163779303, 4.008531198435487, 0, lc};
Point(1172) = {34.7063222244834, 4.07839816863157, 0, lc};
Point(1173) = {34.69940480279251, 4.146529470047728, 0, lc};
Point(1174) = {34.68754644217778, 4.215444817257815, 0, lc};
Point(1175) = {34.67054186596977, 4.284630706580073, 0, lc};
Point(1176) = {34.64825506990334, 4.353529524807218, 0, lc};
Point(1177) = {34.62062940237694, 4.421551112105433, 0, lc};
Point(1178) = {34.58769531245656, 4.48808687439215, 0, lc};
Point(1179) = {34.54957504883313, 4.552525882532581, 0, lc};
Point(1180) = {34.50648375459376, 4.614272172931734, 0, lc};
Point(1181) = {34.45872664006728, 4.672762296303522, 0, lc};
Point(1182) = {34.40669220733486, 4.727482076366643, 0, lc};
Point(1183) = {34.35084181263323, 4.777981555858551, 0, lc};
Point(1184) = {34.29169614836719, 4.823887227266016, 0, lc};
Point(1185) = {34.22981946719423, 4.864910857882763, 0, lc};
Point(1186) = {34.16580252678571, 4.90085449689693, 0, lc};
Point(1187) = {34.10024528862067, 4.931611560413715, 0, lc};
Point(1188) = {34.03374035636966, 4.957164190016445, 0, lc};
Point(1189) = {33.96685800274977, 4.977577337050146, 0, lc};
Point(1190) = {33.90013343301631, 4.992990213141077, 0, lc};
Point(1192) = {33.52588227228965, 5.051281549627163, 0, lc};
Point(1193) = {33.22126674176607, 5.117779190734945, 0, lc};
Point(1194) = {32.92226629082842, 5.205871731341372, 0, lc};
Point(1195) = {32.63134035344507, 5.318378551702244, 0, lc};
Point(1196) = {32.3528595568872, 5.458297224577334, 0, lc};
Point(1197) = {32.09175543811464, 5.628410671826153, 0, lc};
Point(1198) = {31.85269945494516, 5.828485788467989, 0, lc};
Point(1199) = {31.6400369817163, 6.056272806491343, 0, lc};
Point(1200) = {31.45599021792431, 6.307890597596343, 0, lc};
Point(1201) = {31.30118451870961, 6.578358024907164, 0, lc};
Point(1202) = {31.1742283331504, 6.863068902940552, 0, lc};
Point(1203) = {31.07201866343215, 7.15776371999533, 0, lc};
Point(1204) = {30.9915827336961, 7.458926065619404, 0, lc};
Point(1205) = {30.93036219896677, 7.764667581170237, 0, lc};
Point(1206) = {30.88586435906402, 8.073329630098762, 0, lc};
Point(1207) = {30.85600953973498, 8.38368450263882, 0, lc};
Point(1208) = {30.83927490491749, 8.695085461002789, 0, lc};
Point(1209) = {30.83417692302404, 9.006926802783081, 0, lc};
Point(1210) = {30.8368120597611, 9.318750665786023, 0, lc};
Point(1212) = {32.84258675073072, 11.72643306234215, 0, lc};
Point(1213) = {34.65326300857291, 13.22691947250638, 0, lc};
Point(1214) = {36.27137121726709, 14.22810080465868, 0, lc};
Point(1215) = {37.70203340423109, 14.82596618342409, 0, lc};
Point(1216) = {38.95037159688275, 15.11650473342762, 0, lc};
Point(1217) = {40.02150782263988, 15.19570557929427, 0, lc};
Point(1218) = {40.92157317309573, 15.15748479033818, 0, lc};
Point(1219) = {41.68074226863359, 15.04636260331528, 0, lc};
Point(1220) = {42.35370653543404, 14.85649110625437, 0, lc};
Point(1221) = {42.9962611305295, 14.57975484547579, 0, lc};
Point(1222) = {43.66420121095241, 14.20803836729987, 0, lc};
Point(1223) = {44.41332193373524, 13.73322621804697, 0, lc};
Point(1224) = {45.29941845591043, 13.14720294403742, 0, lc};
Point(1225) = {46.40419074311542, 12.44671698600387, 0, lc};
Point(1226) = {48.04694878882155, 11.67313051274428, 0, lc};
Point(1227) = {50.67469148766712, 10.89178059834812, 0, lc};
Point(1228) = {54.73564339892999, 10.16823444805474, 0, lc};
Point(1229) = {60.6780290818881, 9.568059267103457, 0, lc};
Point(1230) = {68.95007309581928, 9.156822260733637, 0, lc};
Point(1232) = {80.00000000000153, 8.100081570766154, 0, lc};
Point(1233) = {80.00000000000153, 7.200072507347693, 0, lc};
Point(1234) = {80.00000000000153, 6.300063443929231, 0, lc};
Point(1235) = {80.00000000000153, 5.400054380510769, 0, lc};
Point(1236) = {80.00000000000153, 4.500045317092308, 0, lc};
Point(1237) = {80.00000000000153, 3.600036253673847, 0, lc};
Point(1238) = {80.00000000000153, 2.700027190255385, 0, lc};
Point(1239) = {80.00000000000153, 1.800018126836923, 0, lc};
Point(1240) = {80.00000000000153, 0.9000090634184605, 0, lc};
Point(1241) = {80.00000000000153, 0, 0, lc};
Point(1242) = {80.00000000000153, -0.9000090634184623, 0, lc};
Point(1243) = {80.00000000000153, -1.800018126836923, 0, lc};
Point(1244) = {80.00000000000153, -2.700027190255385, 0, lc};
Point(1245) = {80.00000000000153, -3.600036253673846, 0, lc};
Point(1246) = {80.00000000000153, -4.500045317092308, 0, lc};
Point(1247) = {80.00000000000153, -5.40005438051077, 0, lc};
Point(1248) = {80.00000000000153, -6.300063443929231, 0, lc};
Point(1249) = {80.00000000000153, -7.200072507347695, 0, lc};
Point(1250) = {80.00000000000153, -8.100081570766154, 0, lc};
Point(1252) = {0, 8.1, 0, lc};
Point(1253) = {0, 7.2, 0, lc};
Point(1254) = {0, 6.300000000000001, 0, lc};
Point(1255) = {0, 5.4, 0, lc};
Point(1256) = {0, 4.5, 0, lc};
Point(1257) = {0, 3.600000000000001, 0, lc};
Point(1258) = {0, 2.7, 0, lc};
Point(1259) = {0, 1.8, 0, lc};
Point(1260) = {0, 0.9000000000000004, 0, lc};
Point(1261) = {0, 0, 0, lc};
Point(1262) = {0, -0.9000000000000004, 0, lc};
Point(1263) = {0, -1.799999999999999, 0, lc};
Point(1264) = {0, -2.700000000000001, 0, lc};
Point(1265) = {0, -3.6, 0, lc};
Point(1266) = {0, -4.5, 0, lc};
Point(1267) = {0, -5.4, 0, lc};
Point(1268) = {0, -6.299999999999999, 0, lc};
Point(1269) = {0, -7.199999999999999, 0, lc};
Point(1270) = {0, -8.099999999999998, 0, lc};
Point(1272) = {0.01032187190279074, -0.02462173698612005, 0, lc};
Point(1273) = {0.009778615486854391, -0.02332585609211373, 0, lc};
Point(1274) = {0.009235359070918036, -0.02202997519810742, 0, lc};
Point(1275) = {0.00869210265498168, -0.0207340943041011, 0, lc};
Point(1276) = {0.008148846239045325, -0.01943821341009478, 0, lc};
Point(1277) = {0.00760558982310897, -0.01814233251608846, 0, lc};
Point(1278) = {0.007062333407172616, -0.01684645162208214, 0, lc};
Point(1279) = {0.00651907699123626, -0.01555057072807582, 0, lc};
Point(1280) = {0.005975820575299905, -0.0142546898340695, 0, lc};
Point(1281) = {0.00543256415936355, -0.01295880894006319, 0, lc};
Point(1282) = {0.004889307743427195, -0.01166292804605687, 0, lc};
Point(1283) = {0.00434605132749084, -0.01036704715205055, 0, lc};
Point(1284) = {0.003802794911554485, -0.00907116625804423, 0, lc};
Point(1285) = {0.003259538495618131, -0.007775285364037914, 0, lc};
Point(1286) = {0.002716282079681775, -0.006479404470031591, 0, lc};
Point(1287) = {0.00217302566374542, -0.005183523576025272, 0, lc};
Point(1288) = {0.001629769247809065, -0.003887642682018955, 0, lc};
Point(1289) = {0.001086512831872709, -0.002591761788012636, 0, lc};
Point(1290) = {0.0005432564159363554, -0.00129588089400632, 0, lc};
Spline(47) = {47, 992, 993, 994, 995, 996, 997, 998
, 999, 1000, 1001, 1002, 1003, 1004, 1005, 1006
, 1007, 1008, 1009, 1010, 48};
Spline(48) = {48, 1012, 1013, 1014, 1015, 1016, 1017, 1018
, 1019, 1020, 1021, 1022, 1023, 1024, 1025, 1026
, 1027, 1028, 1029, 1030, 49};
Spline(49) = {49, 1032, 1033, 1034, 1035, 1036, 1037, 1038
, 1039, 1040, 1041, 1042, 1043, 1044, 1045, 1046
, 1047, 1048, 1049, 1050, 50};
Spline(50) = {50, 1052, 1053, 1054, 1055, 1056, 1057, 1058
, 1059, 1060, 1061, 1062, 1063, 1064, 1065, 1066
, 1067, 1068, 1069, 1070, 51};
Spline(51) = {51, 1072, 1073, 1074, 1075, 1076, 1077, 1078
, 1079, 1080, 1081, 1082, 1083, 1084, 1085, 1086
, 1087, 1088, 1089, 1090, 52};
Spline(52) = {52, 1092, 1093, 1094, 1095, 1096, 1097, 1098
, 1099, 1100, 1101, 1102, 1103, 1104, 1105, 1106
, 1107, 1108, 1109, 1110, 53};
Spline(53) = {54, 1112, 1113, 1114, 1115, 1116, 1117, 1118
, 1119, 1120, 1121, 1122, 1123, 1124, 1125, 1126
, 1127, 1128, 1129, 1130, 55};
Spline(54) = {55, 1132, 1133, 1134, 1135, 1136, 1137, 1138
, 1139, 1140, 1141, 1142, 1143, 1144, 1145, 1146
, 1147, 1148, 1149, 1150, 56};
Spline(55) = {56, 1152, 1153, 1154, 1155, 1156, 1157, 1158
, 1159, 1160, 1161, 1162, 1163, 1164, 1165, 1166
, 1167, 1168, 1169, 1170, 57};
Spline(56) = {57, 1172, 1173, 1174, 1175, 1176, 1177, 1178
, 1179, 1180, 1181, 1182, 1183, 1184, 1185, 1186
, 1187, 1188, 1189, 1190, 58};
Spline(57) = {58, 1192, 1193, 1194, 1195, 1196, 1197, 1198
, 1199, 1200, 1201, 1202, 1203, 1204, 1205, 1206
, 1207, 1208, 1209, 1210, 59};
Spline(58) = {59, 1212, 1213, 1214, 1215, 1216, 1217, 1218
, 1219, 1220, 1221, 1222, 1223, 1224, 1225, 1226
, 1227, 1228, 1229, 1230, 60};
Spline(59) = {60, 1232, 1233, 1234, 1235, 1236, 1237, 1238
, 1239, 1240, 1241, 1242, 1243, 1244, 1245, 1246
, 1247, 1248, 1249, 1250, 53};
Spline(60) = {54, 1252, 1253, 1254, 1255, 1256, 1257, 1258
, 1259, 1260, 1261, 1262, 1263, 1264, 1265, 1266
, 1267, 1268, 1269, 1270, 47};
-------------- next part --------------
A non-text attachment was scrubbed...
Name: BadTriangle.png
Type: image/png
Size: 100412 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20150609/0b4e2e88/attachment.png>
