[Gmsh] Orthogonality of unstructured quad mesh

[Feifei TONG]

Dear All,

I am working to create hybrid structured-unstructured quad mesh around
circular cylinders, similar to this in the chain of the email, as posted by
Rajib. But I found the orthogonality appears to be very weak. I have tried

Smoother Surface{'faceToBeSmoothed'} = 40;

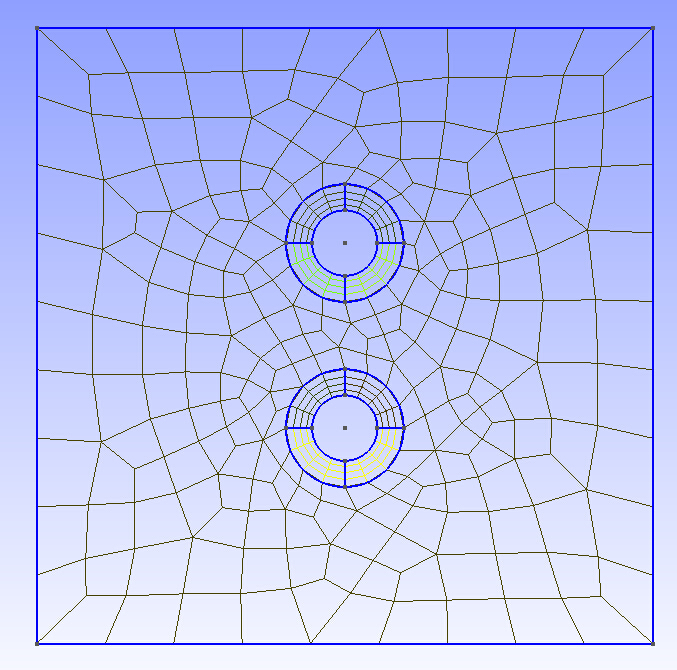

but without any improvement. The geo file is attached, along with a
snapshot of the mesh. Could anyone help? Many thanks.

Kind regards,
Feifei

On 24 June 2014 05:39, Rajib Roy <mail.rajibroy at gmail.com> wrote:

> Hello G-Meshers,
> I am working on to create a Hybrid Structured-Unstructured Mesh to
> simulate flow over an airfoil.
> I've created an structured mesh on airfoil surface rest of the domain
> unstructured. (mesh snapshot attached)
>
> I have observed highly non orthogonal cells near to leading and trailing
> edge.
> Is there any structured mesh solver (Hyperbolic or parabolic) in GMSH ?
> (my current version is 2.8.4).
>
> Any suggestion or advise in highly appreciated.
>
>
> Best Regards,
> --
> Rajib Roy
> University of Wyoming, WY, USA
>
