[Gmsh] Generating geometry with a function in Gmsh

Kamil Ozden kozden at metu.edu.tr
Wed Nov 12 15:27:37 CET 2014


Dear All,,

I've generated the related geometry in Gmsh as below but I've faced with
another problem.



I'm trying to obtain a structured 3D mesh but the splined part leads to

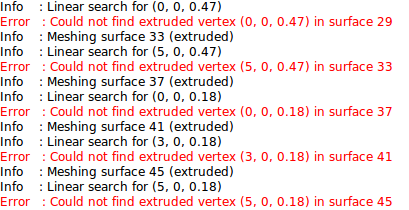

problem. When I tried to mesh this geometry in 2D there is an error
message exists and the mesh seen as below:





Can you suggest any way to obtain a 3D structured mesh with this
geometry? I'm sending you the .geo file if you want to have a look at it.

Regards,
Kamil

On 30-10-2014 13:39, Kamil ÖZDEN wrote:
> Dear All,
>
> I have a question about generating mesh in Gmsh by using a function.

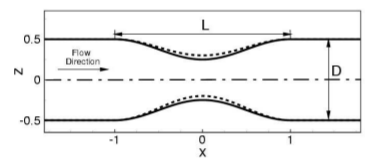

> There is a stenosis profile (solid line not the dashed line) as seen below
>
>
> which is specified with the following functions in 3D.
>
>
>
> I want to ask that is it possible to generate a structured mesh by
> using these functions in Gmsh?
>
> Regards,
> Kamil Özden
