[Gmsh] Gmsh Faild to 3D-Mesh Simple STEP file import

[Erroll Brady]

Hello Christophe Geuzaine and Jean-François Remacle,

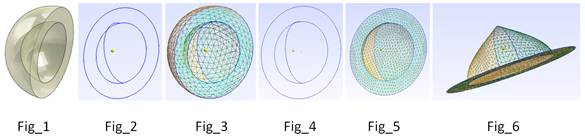

1) Load the STEP file in Fig_1 into Gmsh and Fig_2 is displayed after rotating the image.

2) Run 3D mesh and Fig_3 is displayed (Looks OK).

3) Save the Geo file and close Gmsh.

4) Reload Gmsh and load the saved Geo file and Fig_4 is displayed after rotating the image.

5) 3D mesh the loaded Geo file and Fig_5 is displayed.

6) Rotate Fig_5 and Fig_6 is displayed.

7) Fig_6 looks nothing like Fig_1 or Fig_3.


[cid:image003.jpg at 01CFC390.1BDAE130][cid:image004.png at 01CFC390.1BDAE130]

Please advise.
Thank you,
Erroll Brady
