[Gmsh] 2D: Manual mesh refinement

[benjamin]

Dear all,

I wrote a .geo file that describes a 2D electrostatic confinement device
(see the attached document for the .geo file and the resulting mesh).
The geometry is comprised of a circular wall and several electrodes,
whose cross sections are circular. The electrodes are asymmetrically
distributed so that particles can exit the device through the asymmetry.

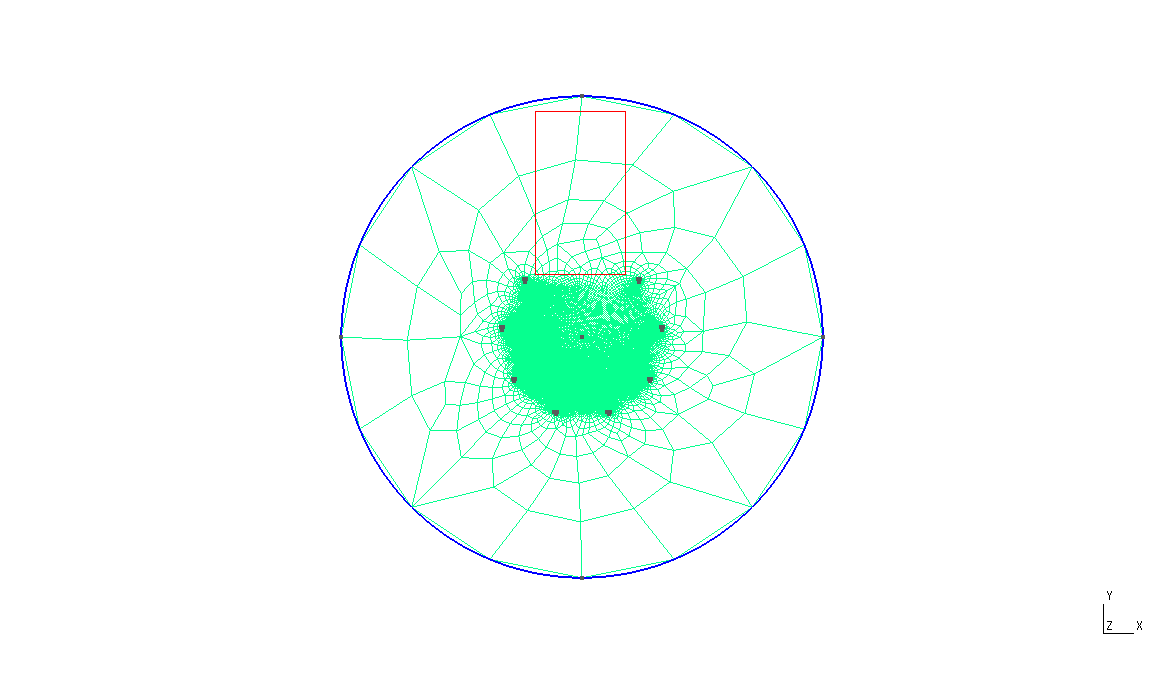

I would like to refine the (2D) mesh along the exit path of the
particles (i.e in the region that is highlighted on the screenshot). I
read the documentation of gmsh, but I could not find a (simple) solution
to my problem.

How would you do that? I was thinking of creating a set of points in the
region of interest so that the mesh can connect with them and get
refined, but this idea may be to naive.

Best regards,

Benjamin Bercovici

ps: you can call "gmsh -2 iec.geo" to generate the mesh, or "gmsh
iec.geo" and then click "Mesh->2D ".
-------------- next part --------------

//Hiiper's chamber radius
cr=0.3;

//IEC radius and wire radius
ir=0.1;
rw=0.002;

//Chamber center
Point(1)={0,0,0,1};
//Asymetry half aperture
alpha=Pi/4;
//Position of the first wire
theta_0=Pi/2-alpha;
//Number of IEC grids
ng=8;
//IEC grids angular spacing
A=-(2*theta_0+Pi)/(ng-1);

//Outer walls
Point(2)={0,-cr,0,1};
Point(3)={cr,0,0,1};
Point(4)={0,cr,0,1};
Point(5)={-cr,0,0,1};

Circle(1)={2,1,3};
Circle(2)={3,1,4};
Circle(3)={4,1,5};
Circle(4)={5,1,2};
Line Loop(5)={1:4};

// "Physical" Chamber wall
Physical Line(1)={1:4};

//IEC

For num In {0:ng-1}
Point(6+4*num)={ir*Cos(theta_0+A*num),ir*Sin(theta_0+A*num),0,1};
Point(7+4*num)={ir*Cos(theta_0+A*num),ir*Sin(theta_0+A*num),0,1}+{rw*Cos(Pi/4),rw*Sin(Pi/4),0,0};
Point(8+4*num)={ir*Cos(theta_0+A*num),ir*Sin(theta_0+A*num),0,1}+{-rw*Cos(Pi/4),rw*Sin(Pi/4),0,0};
Point(9+4*num)={ir*Cos(theta_0+A*num),ir*Sin(theta_0+A*num),0,1}+{0,-rw,0,0};
Circle(6+4*num)={7+4*num,6+4*num,8+4*num};
Circle(7+4*num)={8+4*num,6+4*num,9+4*num};
Circle(8+4*num)={9+4*num,6+4*num,7+4*num};
Line Loop(9+4*num)={6+4*num,7+4*num,8+4*num};
storeloop[num]=9+4*num;
storeline[3*num]=6+4*num;
storeline[3*num+1]=7+4*num;
storeline[3*num+2]=8+4*num;

EndFor

//"Physical" IEC
Physical Line (2)={storeline[{0:3*ng-3+2}]};

//Surface. First number: outer boundary. Last number: inner boundaries

Plane Surface(1) = {5,storeloop[{0:ng-1}]};
Physical Surface(1) = {1};

Mesh.Algorithm = 8;
Mesh.RecombineAll = 1;
Mesh.CharacteristicLengthFactor = 0.5;
Mesh.SubdivisionAlgorithm = 1;
Mesh.Smoothing = 20;
Show "*";

-------------- next part --------------
A non-text attachment was scrubbed...
Name: iec.png
Type: image/png
Size: 24417 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20140708/54334af3/attachment.png>
