[Gmsh] problem at visualization of quad mesh

rferrier at ens-cachan.fr rferrier at ens-cachan.fr
Thu Jun 19 12:03:44 CEST 2014


Hello,

I am a student, and I am using GMSH for post-processing results I get
from Code_Aster.

I am using the 2.0.8 release of GMSH on Windows.

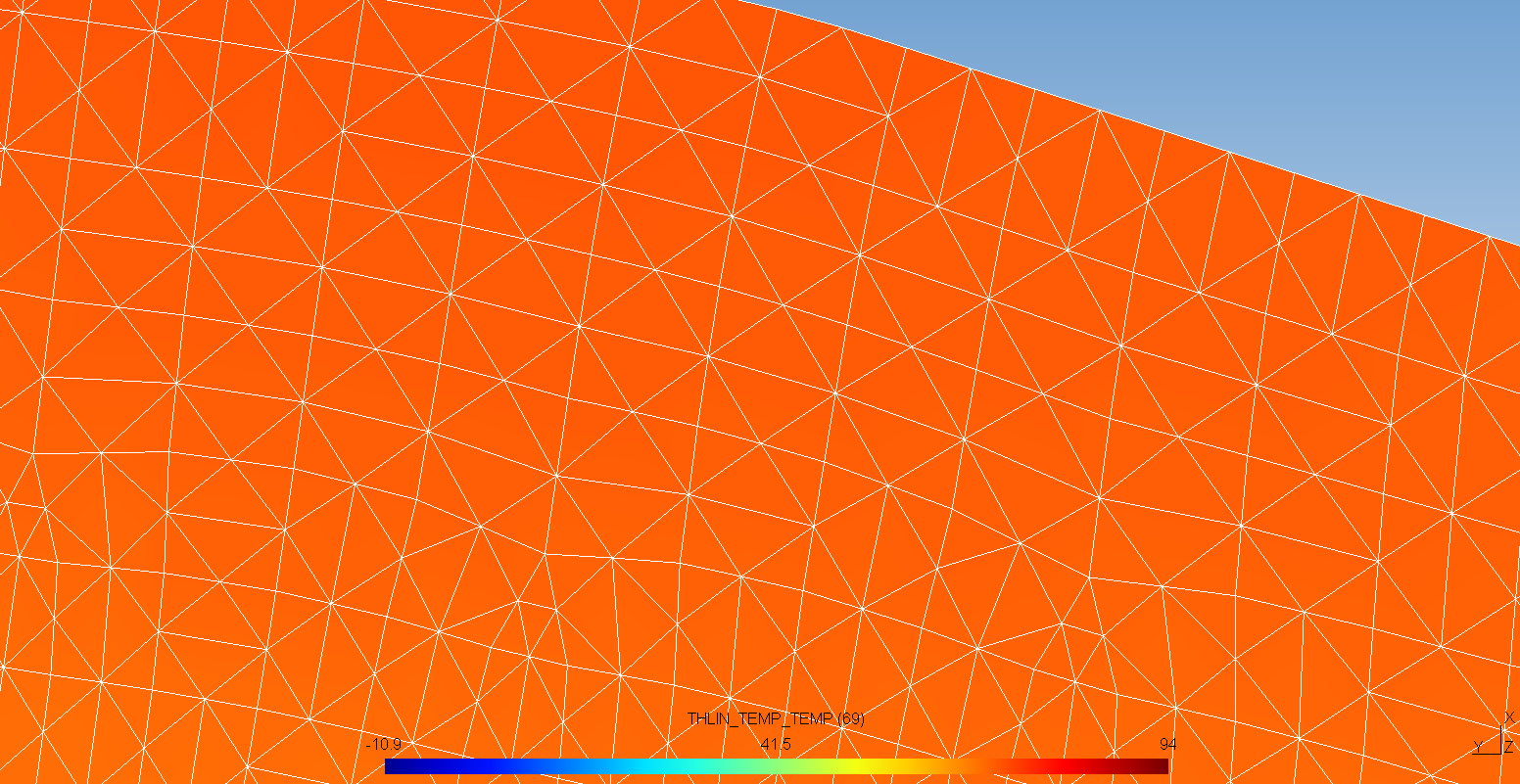

When I import a quad mesh in order to visualize a field, I can only
see a tri mesh, as in the picture I joined.

I opened the .msh file as a text and it contains quad elements, but
those are not in the visualization.

Is there some option I need to activate in order to visualize quad elements ?


Thank you for reading,

Renaud Ferrier
