Hello again gmsh users can anyone help with this?
From: ermioni88 at hotmail.com
To: jean-francois.remacle at uclouvain.be
CC: gmsh at geuz.org
Subject: RE: [Gmsh] Failure with Second order element
Date: Wed, 21 May 2014 13:01:56 +0300




Off course I attach  the stp file.

I choose the second order element  from the GUI...

Thanks for the reply

Subject: Re: [Gmsh] Failure with Second order element
From: jean-francois.remacle at uclouvain.be
Date: Wed, 21 May 2014 11:56:59 +0200
CC: gmsh at geuz.org
To: ermioni88 at hotmail.com

could you send us the geometry file ?
JFR
Le 21 mai 2014 à 11:43, e r <ermioni88 at hotmail.com> a écrit :Hello gmsh user...
I am not familliar with the gmsh and I need your help.

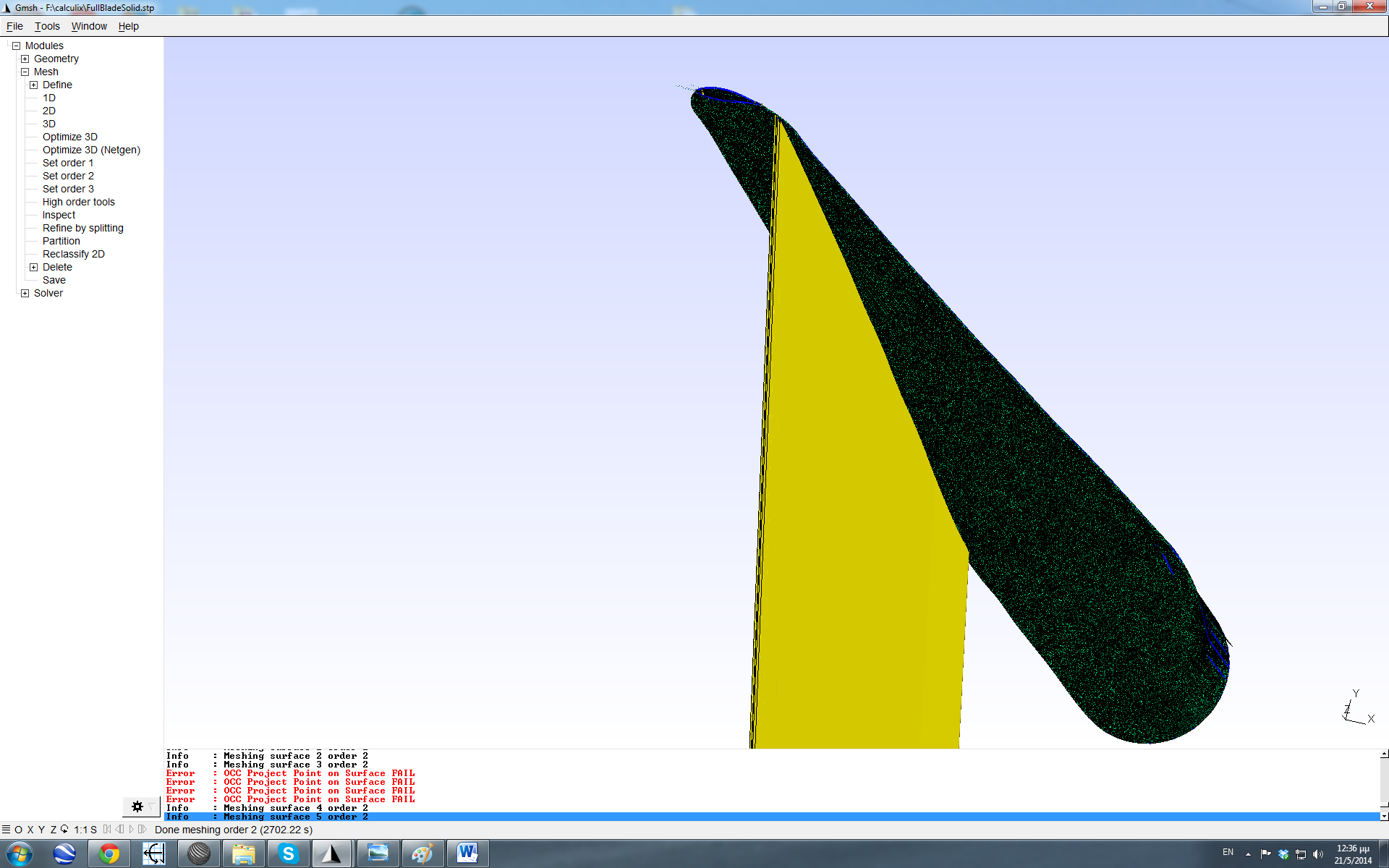

Does anyone know why when I use the option for the second order elements (with incomplete element) i get the enormous element that appears in the picture below.

Thanks in advance

Ermioni M.
<blade.png>_______________________________________________
gmsh mailing list
gmsh at geuz.org
http://www.geuz.org/mailman/listinfo/gmsh


------------------------------------------------------------------Prof. Jean-Francois RemacleUniversite catholique de Louvain (UCL)Ecole Polytechnique de Louvain (EPL) - Louvain School of EngineeringInstitute of Mechanics, Materials and Civil Engineering (iMMC)Center for Systems Engineering and Applied Mechanics (CESAME)Tel : +32-10-472352 -- Mobile : +32-473-909930
