[Gmsh] Gmsh issues w/ bezier curves

Michael E Hayek mhayek at MIT.EDU
Mon May 12 01:08:24 CEST 2014


Hi,

I'm working on developing a parametric mesh based on bezier curves, but I noticed that Gmsh is having issues with the bezier curves. The syntax I am using is basically in the form:
Point(1) = {...}
Point(2) = {...}
Point(3) = {...}
Point(4) = {...}
Bezier(1) = {1, 2, 3, 4}

Which creates multiple lines (that is thought to be one in the GUI), with only one being the true bezier curve. When I use:
BSpline(1) = {1, 2, 3, 4}, the problem goes away and I end up with a single curve, but of course the shape is not what I would get using a bezier curve with the same control points.

I require 3rd-order bezier curves for my research - does Gmsh no longer support bezier curves? I am running version 2.5.1 on Linux. I am new to Gmsh and found very little online about bezier curve usage w/ Gmsh.

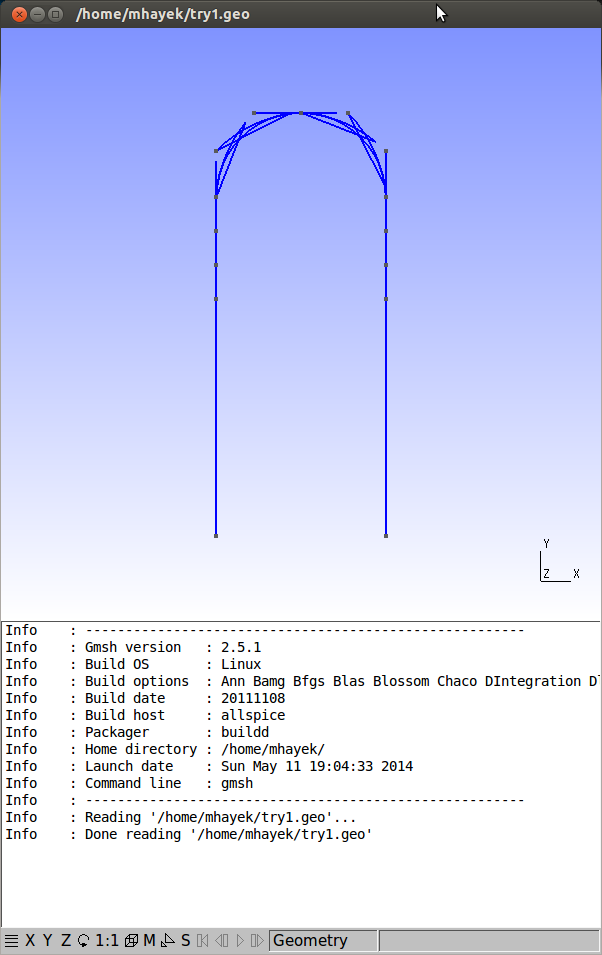

Attached is my .geo file. The values I have in there now will give circular arcs for bezier curves (3 & 4). I also attached a screenshot of my issue when I use this .geo file.

Any guidance would be appreciated.

Thanks,

Michael Hayek
Masters Candidate
Aerospace Computational Design Lab
Dept of Aeronautics and Astronautics
Massachusetts Institute of Technology
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20140511/c82a2052/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: try1.geo
Type: application/octet-stream
Size: 745 bytes
Desc: try1.geo
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20140511/c82a2052/attachment.geo>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screenshot from 2014-05-11 19:05:08.png
Type: image/png
Size: 54036 bytes
Desc: Screenshot from 2014-05-11 19:05:08.png
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20140511/c82a2052/attachment.png>
