[Gmsh] bug with optimize 3D

[Ziyu ZHANG]

As another Gmsh user, I just want to confirm that I have seen the same
thing after a tet mesh is refined via *.pos files. Usually one or two slim
elements have a node penetrating its opposite facet, rendering a negative
elemental Jacobian. Hopefully someone can take a look at this issue...

-Ziyu


On Sat, Apr 12, 2014 at 8:26 AM, Ahmad Khodaiee <a.khodaiee at gmail.com>wrote:

> Dear Geuzaine and Remacle
> With thanks for Gmsh.
>
> I think, after optimization of a 3D mesh (tetrahedron elements), node
> numbering order disturb in some cases.

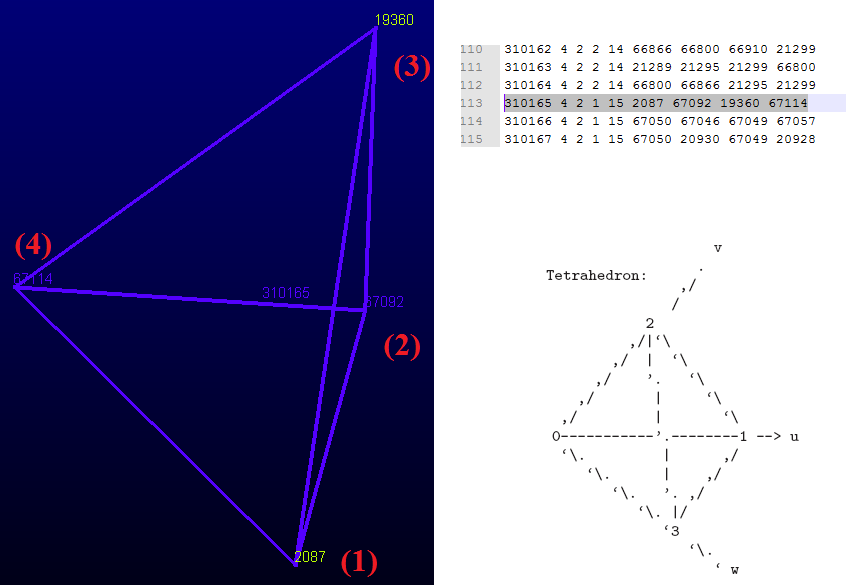

> In the attached picture, I illustrated this problem.
> In this picture, Node numbering for 310165th element have been shown.
> This numbering order, violate The aforementioned numbering order law.
>
> Yours sincerely.
> Khodaiee
>
> [image: Inline image 1]
>
