[Gmsh] Surface mesh contains ugly elements

[Jean-François Remacle]

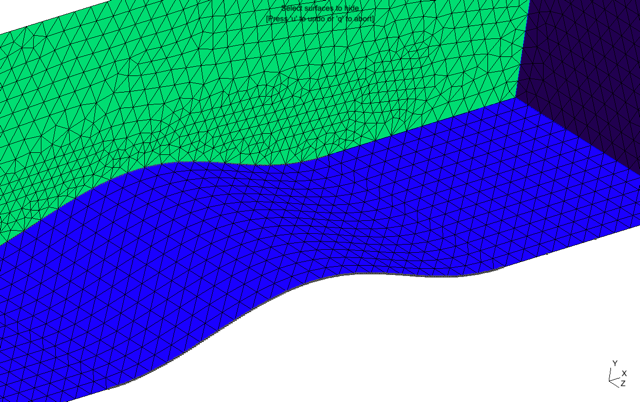

I cannot reproduce the problem with transfinite meshes.

with the unstructured algo, I see the same issue…

JF
Le 30 oct. 2013 à 12:14, Martin Vymazal <martin.vymazal at vki.ac.be> a écrit :

> Hello,
>
> I'm trying to generate a surface mesh of a bump given by a sine function. I
> tried
> 1) to take the contour of the bump (defined by a spline) and extrude it
> 2) generate two contours (front and back), then create a line loop and a
> surface
>
> In both cases, I have a bad mesh at the beginning and at the end of the bump.
> I'd prefer to have a fully unstructured mesh, but transfinite will do as well.
> Unfortunately neither of them works (see attached pictures).
>
> Does anyone have an idea how to fix it?
>
> Thank you.
>
>  Martin Vymazal
> <bump_ruled_surface.png><bump_transfinite_surface.png>_______________________________________________
> gmsh mailing list
> gmsh at geuz.org
> http://www.geuz.org/mailman/listinfo/gmsh

------------------------------------------------------------------
Prof. Jean-Francois Remacle
Universite catholique de Louvain (UCL)
Ecole Polytechnique de Louvain (EPL) - Louvain School of Engineering
Institute of Mechanics, Materials and Civil Engineering (iMMC)
Center for Systems Engineering and Applied Mechanics (CESAME)
Tel : +32-10-472352 -- Mobile : +32-473-909930
