[Gmsh] Surface mesh contains ugly elements

[Martin Vymazal]

Hello,

 I'm trying to generate a surface mesh of a bump given by a sine function. I
tried
1) to take the contour of the bump (defined by a spline) and extrude it
2) generate two contours (front and back), then create a line loop and a
surface

In both cases, I have a bad mesh at the beginning and at the end of the bump.
I'd prefer to have a fully unstructured mesh, but transfinite will do as well.
Unfortunately neither of them works (see attached pictures).

Does anyone have an idea how to fix it?

Thank you.

  Martin Vymazal
-------------- next part --------------
A non-text attachment was scrubbed...

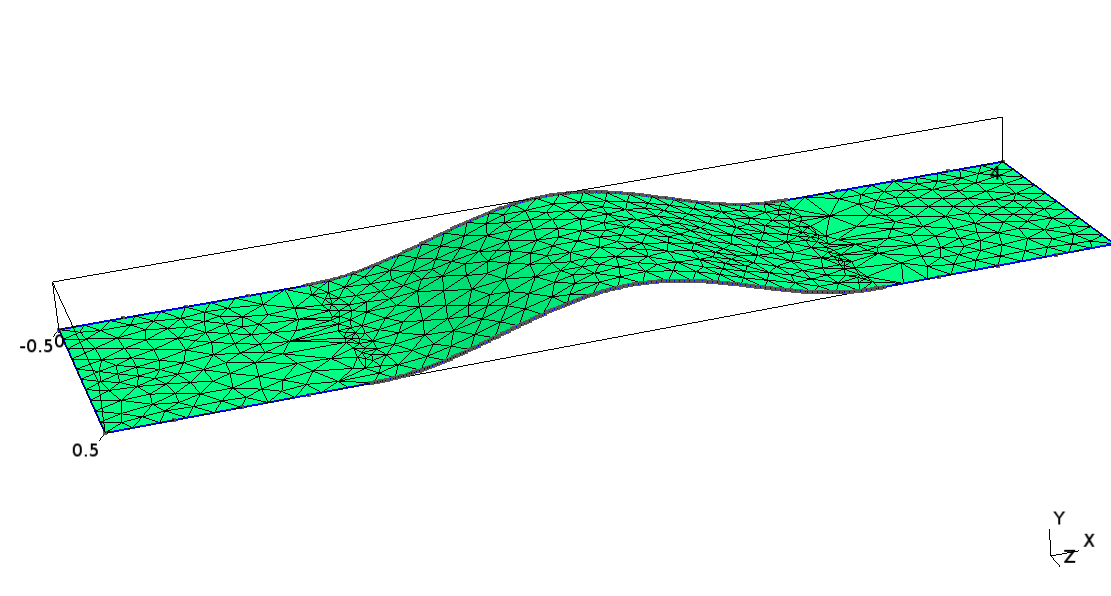

Name: bump_ruled_surface.png
Type: image/png
Size: 49019 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20131030/e7d63320/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bump_transfinite_surface.png
Type: image/png
Size: 38699 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20131030/e7d63320/attachment-0001.png>
