[Gmsh] Numbering

[corra85 at tiscali.it]

Dear all,

Thank you for this amazing piece of software! I am
using it to partition a structured model. What I cannot understand is
why in the GUI interface (I am using the latest 2.8.3 version) I cannot
see the correct numbering of the elements. I attached the file .msh, in
which it is clear that the element numbers go from 11 to 20, and the

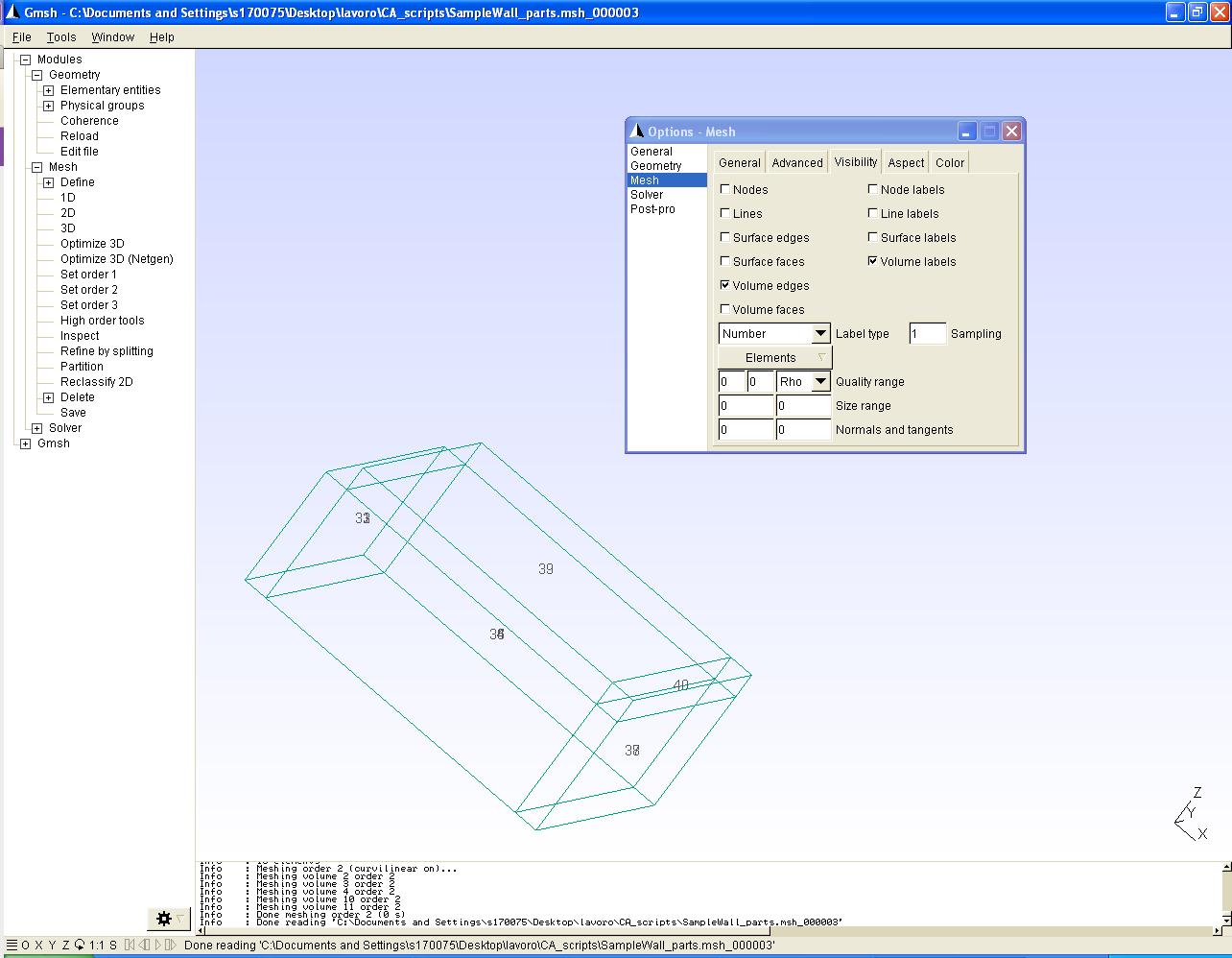

screenshot of what I see in the interface, in which the numbering is
totally different. Can anyone explain me why?

Thank you in advance,


Corrado
