[Gmsh] force scalar, visibility

[Luca Dall'Olio]

Hi Christophe,

This is exactly what I needed, thank you very much indeed!!

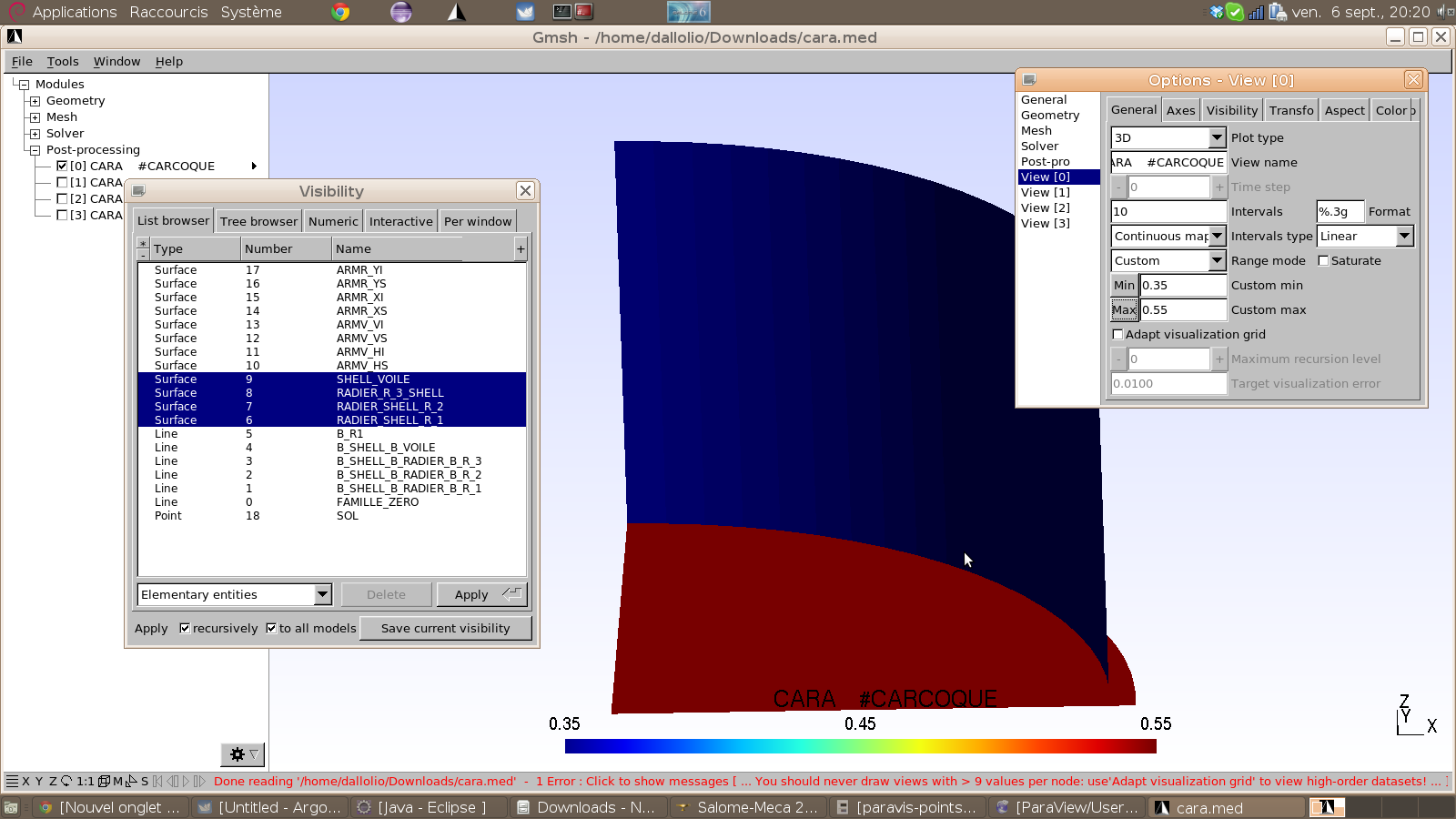

The field is constant in the physical group I indicated, I should also have
added other Physical groups (you can see it in the attached capture if you
wish), but what I really missed was the "Min/Max" buttons and the "Custom"
Range, so my problem is now solved!

Thank you again, have a nice weekend :-)

Luca


2013/9/6 Christophe Geuzaine <cgeuzaine at ulg.ac.be>

>
> On 06 Sep 2013, at 11:01, "Luca Dall'Olio" <luca.dallolio at alneos.fr>
> wrote:
>
> > Dear Gmsh Team,
> >
> > I do not understand how to correctly display a single component of a
> field, while filtering a single "physical group" in Gmsh.
> >
> > Here is our problem :
> > We have some multiple component fields, the first one named "CARA
>  #CARCOQUE". The first component of this field is named "EP" : it is zero
> for any element, but the "SHELL_VOILE" Physical Group. It contains the
> thickness of surface elements.
> >
> > Since I would like to visualise this component alone, in Gmsh :
> > - show only the first view, and hide any other
> > - configure the view with "Force Scalar" in the View [0].Visibility
> menu, setting the first component as "0" and others as "-1"
> > - check the Adapt Visualisation Grid, as suggested in the console
> messages
> > - show only the "SHELL_VOILE" Physical Group, and hide any other (using
> the "Visibility" main menu)
> > - hiding or showing mesh elements (Tools->Options->Mesh->Visibility)
> does not change anything
> >
>
> Hi Luca - Just don't check "Adapt Visualisation Grid" and everything
> should be fine (I have changed the misleading error message). You'll have
> to set the Range mode to "Custom" and click on the Min-Max buttons to
> recompute the Min-Max for that component, though.
>
> (Note that you don't have to set the other components to -1; just set the
> component you want to see in the first field (here, 0): that's enough.)
>
> With your file I see that the first component is constant, equal to 0.35.
> Is that correct?
>
> Christophe
>
>
> > The problem is that no color is diplayed for the field and the legend
> bar is incorrect.
> > I think that the data are correct, since I can visualize the expected
> result in Salome.
> >
> > I also try to use the Plugin(MathEval) using "v0" as the only
> Expression, without any progress.
> >
> > Attached you can find :
> > cara.med (created with a recent Code_Aster version)
> > Capture-1.png (the expected output, as shown by Salome)
> > Capture-2.png and Capture-3.png (the actual Gmsh 2.8.2 output using
> "force scalar", "adapt visualisation grid" and visibility)
> >
> > Thank you in advance for any help or suggestion,
> >
> > Best Regards,
> > Luca
> >
> > --
> >
> > ALNEOS
> >
> > Luca DALL'OLIO, Project Manager
> >
> > 196, rue Houdan      92330 SCEAUX - France
> > Tél.  : +33 (0)6 51 41 21 28
> > Tél.  : +33 (0)1 83 64 39 53
> > GSM   : +33 (0) 6 01 76 50 97
> > Fax.  : +33 (0)1 41 13 85 07
> > Email : luca.dallolio at alneos.fr
> > URL : www.alneos.fr
> >
> > "This e-mail is confidential and may contain legally privileged
> information.
> > If you are not the intended recipient, you should not copy, distribute,
> disclose or use the information it contains.
> >
> >
> > Please e-mail the sender immediately and delete this message from your
> system.
> >
> > E-mails are susceptible to corruption, interception and unauthorised
> amendment; we do not accept liability for any such changes, or for their
> consequences.
> >
> >
> > You should be aware, that the company  may monitor your emails and their
> content."
> >
> >
> >
> >
> <cara.med><Capture-3.png><Capture-2.png><Capture-1.png>_______________________________________________
> > gmsh mailing list
> > gmsh at geuz.org
> > http://www.geuz.org/mailman/listinfo/gmsh
>
> --
> Prof. Christophe Geuzaine
> University of Liege, Electrical Engineering and Computer Science
> http://www.montefiore.ulg.ac.be/~geuzaine
>
>
>
>


--
