[Gmsh] force scalar, visibility

[Luca Dall'Olio]

Dear Gmsh Team,

I do not understand how to correctly display a single component of a field,
while filtering a single "physical group" in Gmsh.

Here is our problem :
We have some multiple component fields, the first one named "CARA
 #CARCOQUE". The first component of this field is named "EP" : it is zero
for any element, but the "SHELL_VOILE" Physical Group. It contains the
thickness of surface elements.

Since I would like to visualise this component alone, in Gmsh :
- show only the first view, and hide any other
- configure the view with "Force Scalar" in the View [0].Visibility menu,
setting the first component as "0" and others as "-1"
- check the Adapt Visualisation Grid, as suggested in the console messages
- show only the "SHELL_VOILE" Physical Group, and hide any other (using the
"Visibility" main menu)
- hiding or showing mesh elements (Tools->Options->Mesh->Visibility) does
not change anything

The problem is that no color is diplayed for the field and the legend bar
is incorrect.

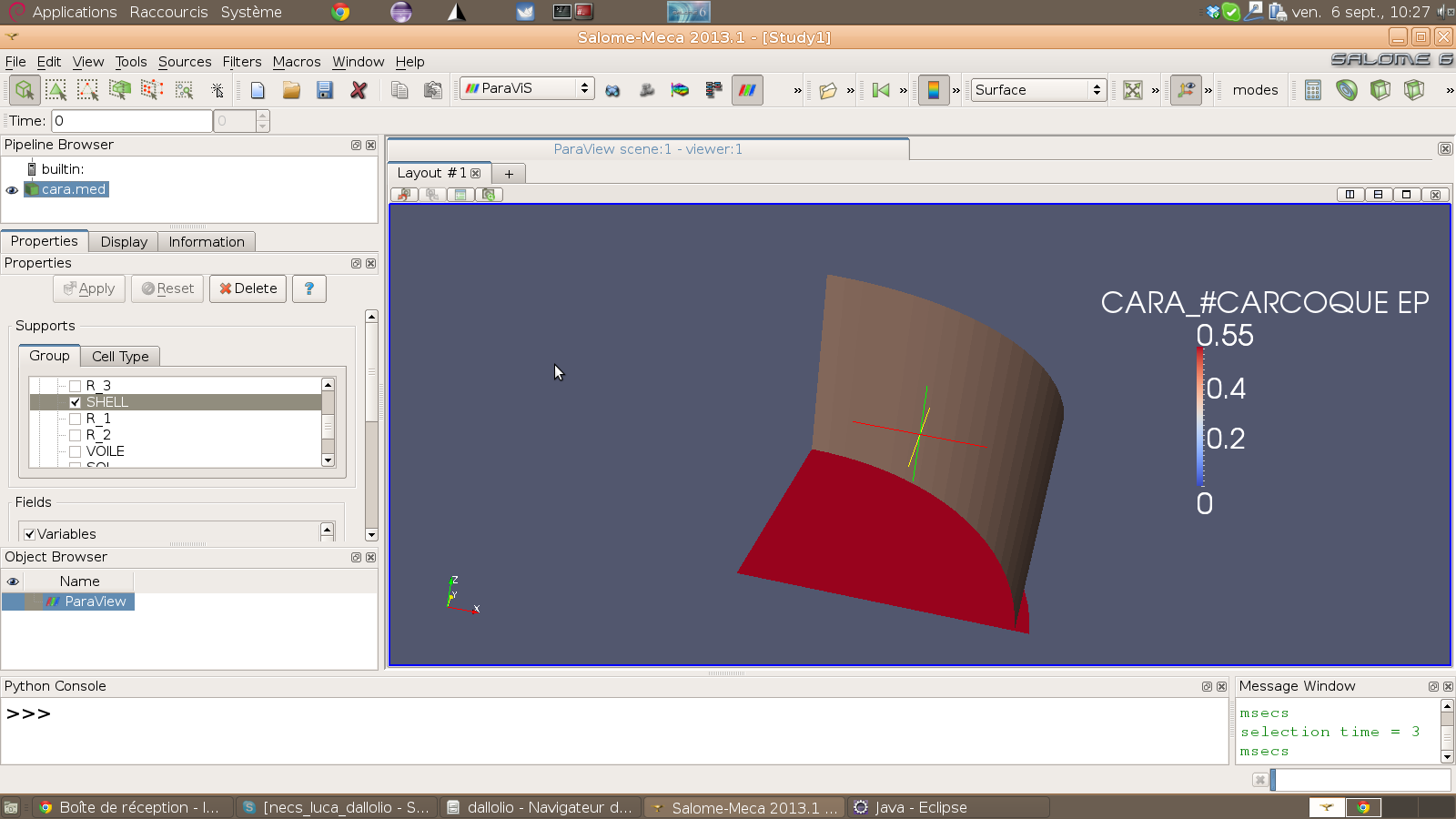

I think that the data are correct, since I can visualize the expected
result in Salome.

I also try to use the Plugin(MathEval) using "v0" as the only Expression,
without any progress.

Attached you can find :
cara.med (created with a recent Code_Aster version)

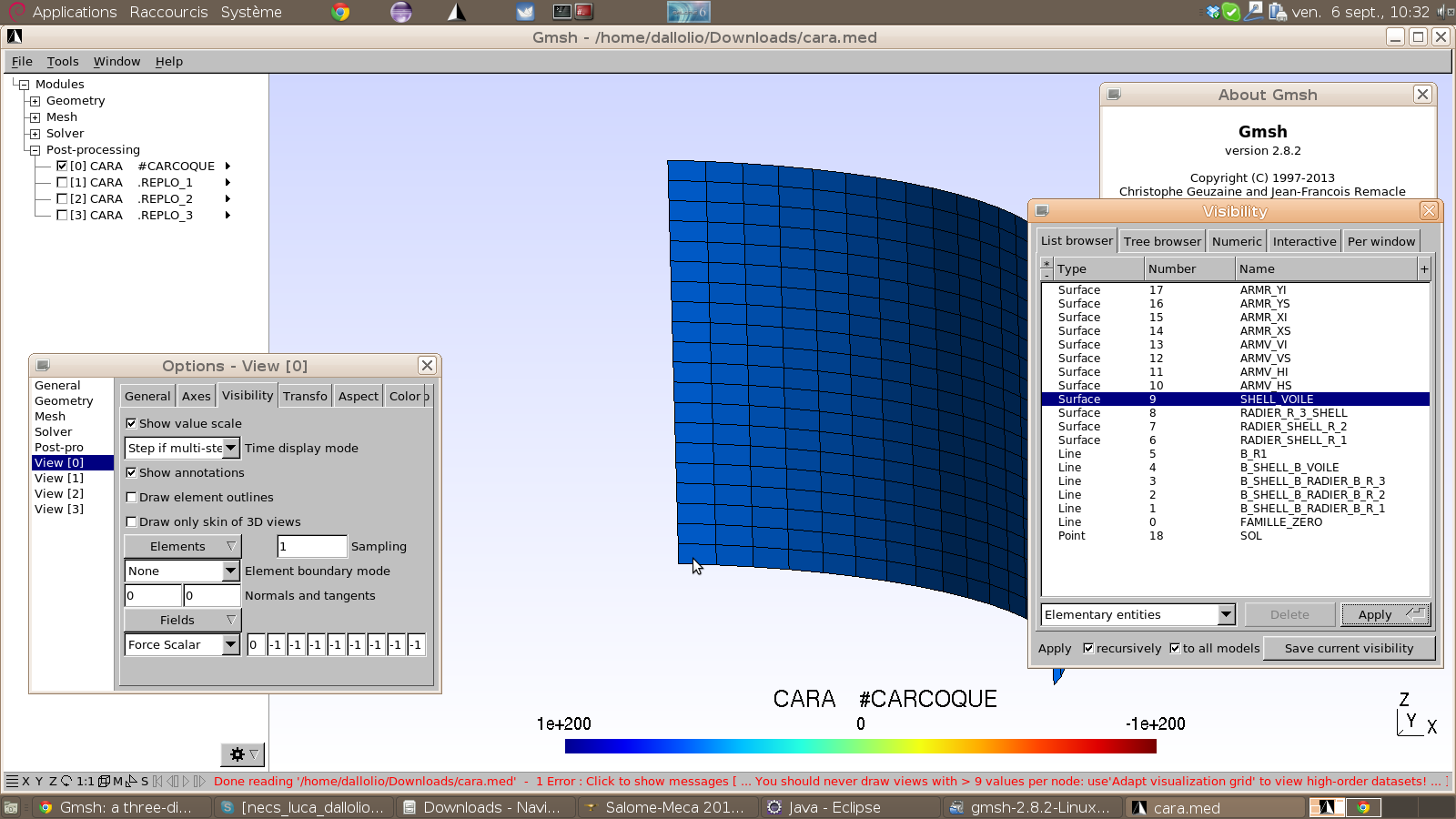

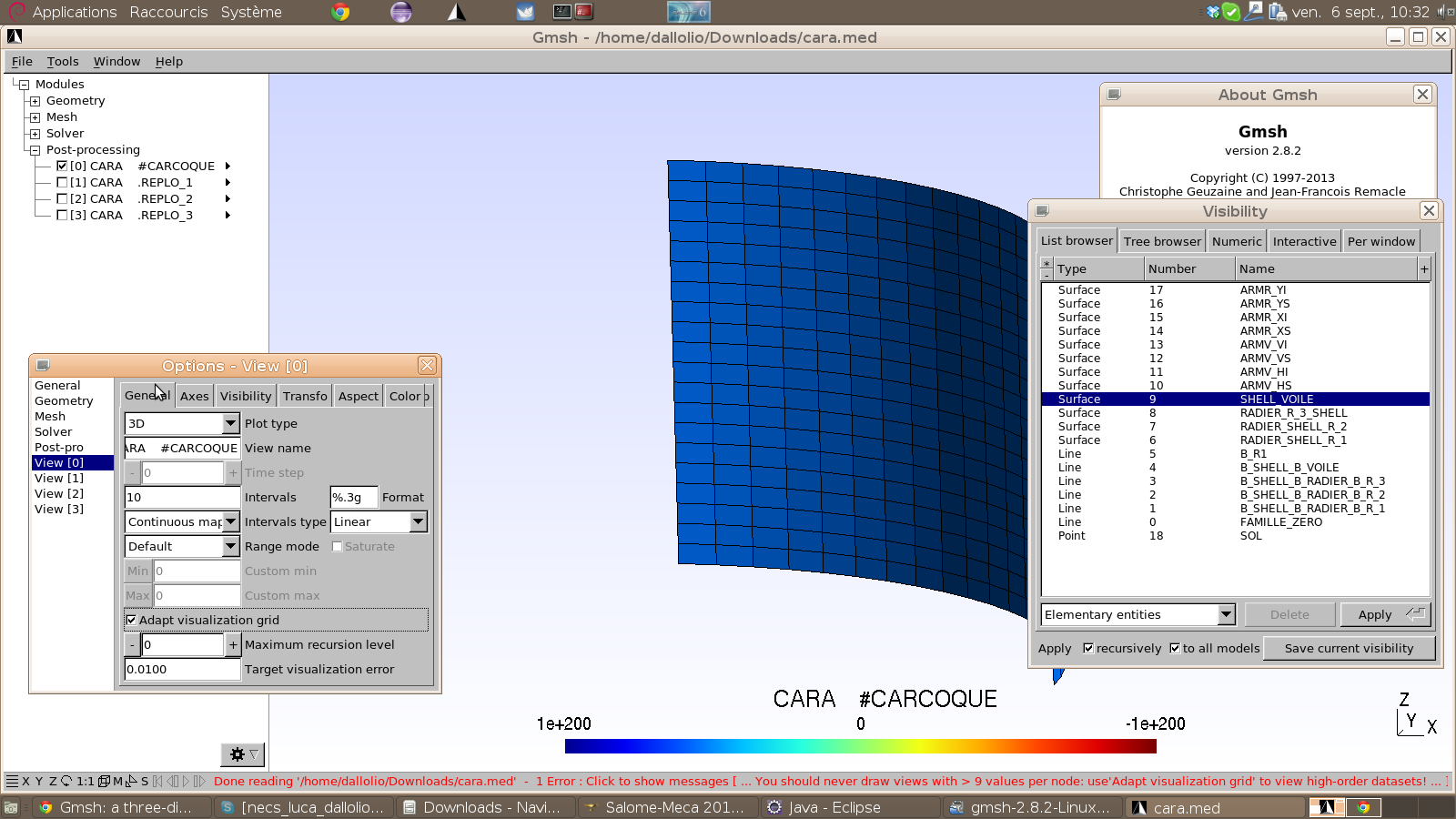

Capture-2.png and Capture-3.png (the actual Gmsh 2.8.2 output using "force
scalar", "adapt visualisation grid" and visibility)

Thank you in advance for any help or suggestion,

Best Regards,
Luca

--
