[Gmsh] RE Problem with getting mesh to follow lines

[jean pierre aubry]

hello

you did set a very large 1.0 characteristic length compared to air foil
length try
Point(1) = {0, 0, 0, cl1};
the cl2 and cl3 and so on according tho the points position
obviously it does not need to be as little on the edges of the tunnel
the declare
cl1 = 0.1;
cl2 = 1.0;
at the beginning of the script,

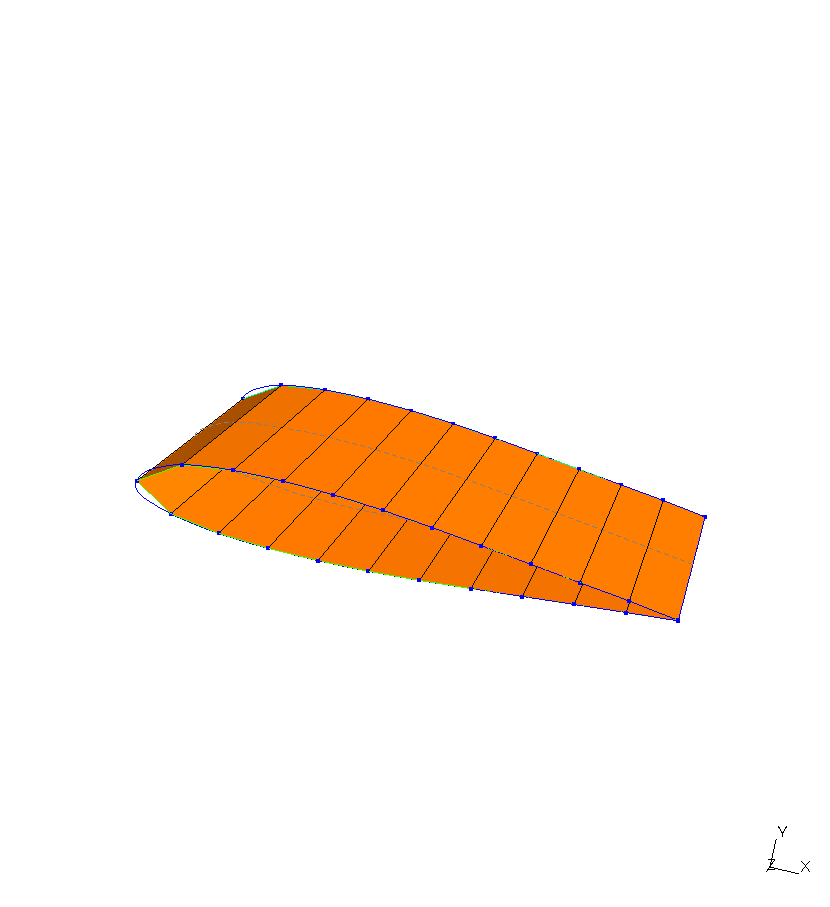

a view of the foil with cl1 = 0.1;
need to be smaller by the leading edge

jean pierre aubry
-------------- next part --------------
A non-text attachment was scrubbed...
Name: foil.png
Type: image/png
Size: 12024 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20130729/9695e397/attachment.png>
