[Gmsh] Problems with -renumber
Matthias Sedlmaier
Winterheart at gmx.de
Wed Jul 17 21:18:03 CEST 2013
Hello everybody,
I'm trying to renumber a *msh file and export it in abaqus *inp format.
After starting GMSH with
>gmsh.exe mymeshfile.msh -renumber -3 -format auto -order 2 -o
mymeshfile.inp

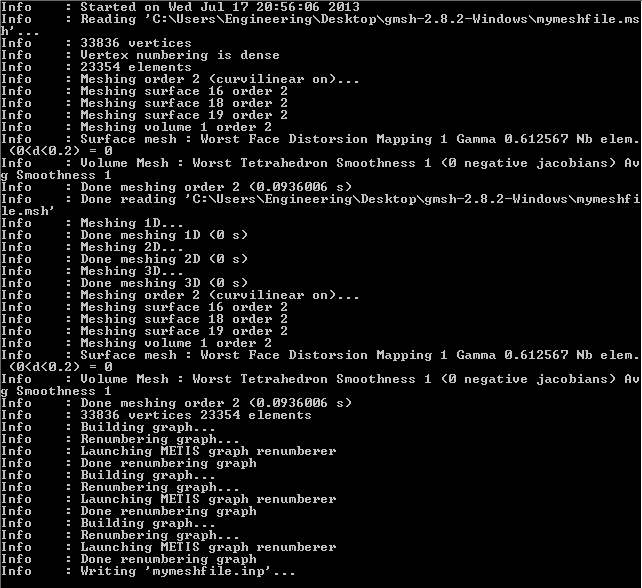

i get the following output:
Immediately after the last line GMSH crashes and the resulting *.inp
file is empty.
This also happens if the output format is set to *.msh.
I'm using GMSH 2.8.2 on Windows7 64bit. But the same behavior occurs
also for V2.7.1.
Without -renumber GMSH finishes the job as expected.
What i'm doing wrong?
Thank you very much for any hint.
Please find attached the meshfile.
Kind regards,
Matthias
