Hi Dave,

I would also be interested to learn more about how you achieved those results. Could some of the mechanisms you implemented be used to solve the problem of nonconformal mesh between volumes with common interfaces? How does your code interact with gmsh?
Thanks for a pointer to more information.

Matthias

Von: David Bernstein [mailto:david.bernstein at meliortechnology.com]
Gesendet: Mittwoch, 12. Juni 2013 23:02
An: gmsh at geuz.org
Betreff: [Gmsh] Isosurface meshing with Gmsh

Hi Everyone, I'm working on an open source geophysics project called Terafrac and have developed an isosurface mesher that uses Gmsh.  I've attached a few screenshots for your entertainment.  The current code is just a prototype and still under development but the results so far have been nice.  The remeshing of compound lines and surfaces in Gmsh are what make the whole thing possible!

Cheers,
Dave

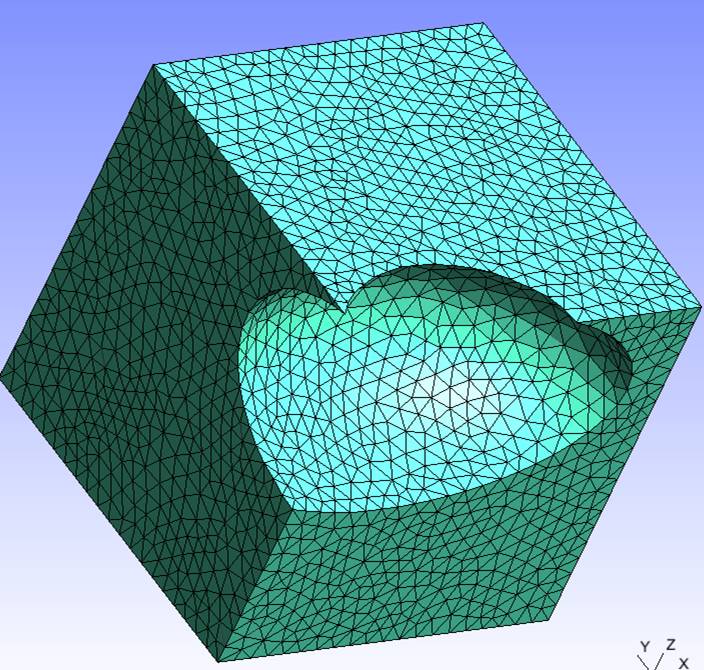

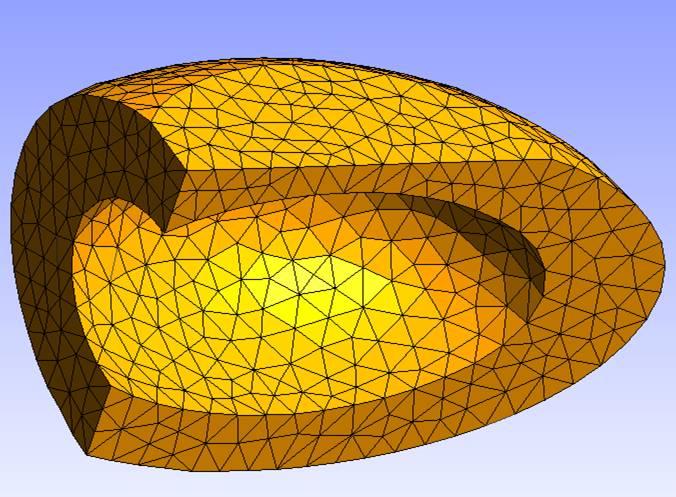

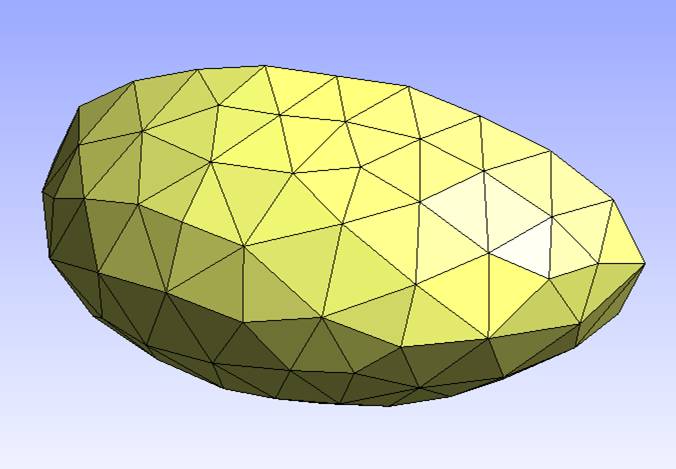

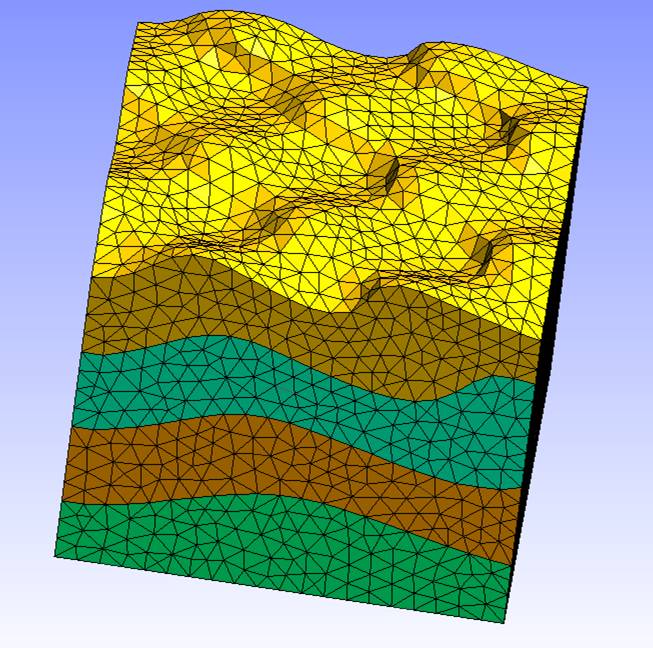

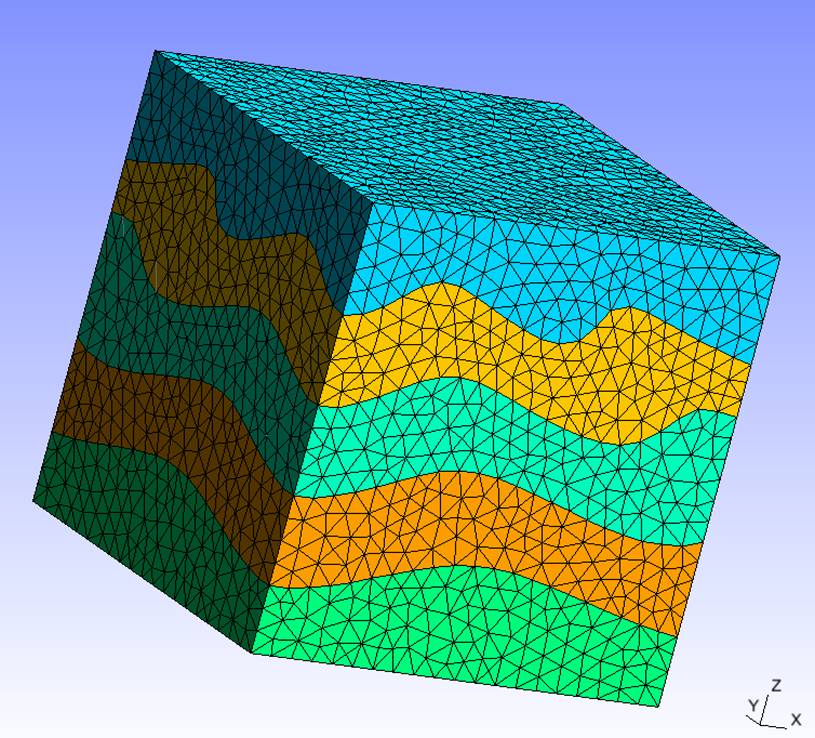

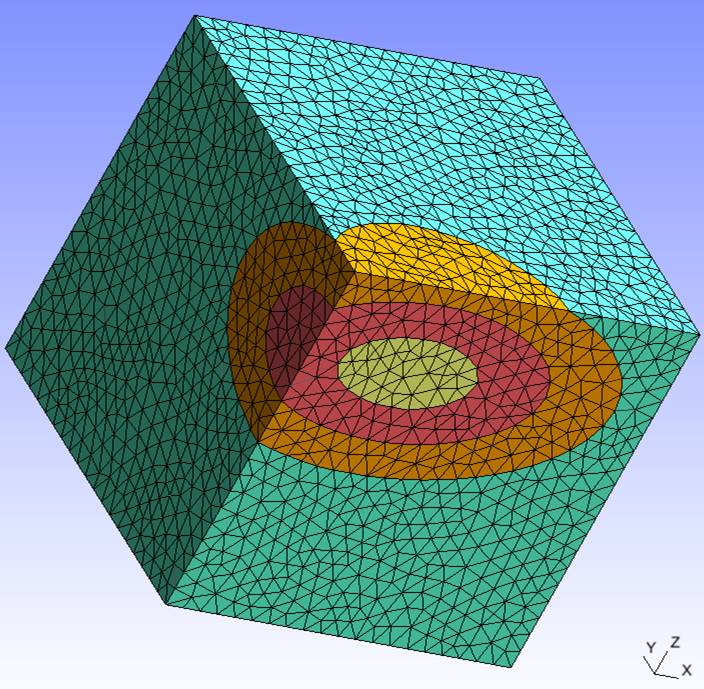

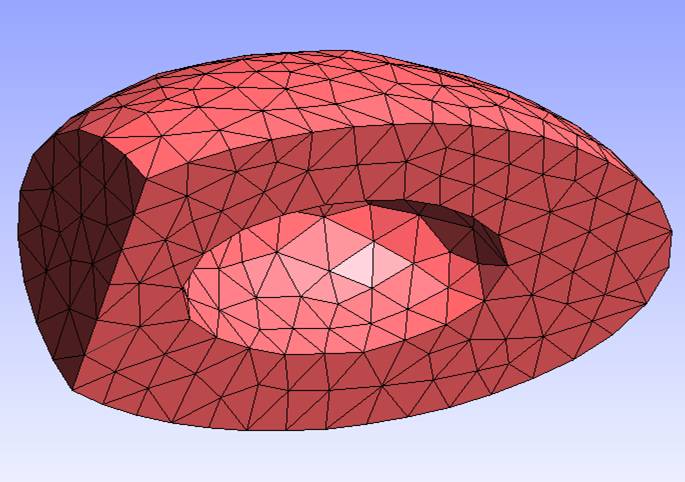

[cid:image002.jpg at 01CE68DB.9DB6C310][cid:image004.jpg at 01CE68DB.9DB6C310]

[cid:image006.jpg at 01CE68DB.9DB6C310][cid:image008.jpg at 01CE68DB.9DB6C310][cid:image010.jpg at 01CE68DB.9DB6C310][cid:image012.jpg at 01CE68DB.9DB6C310][cid:image014.jpg at 01CE68DB.9DB6C310]
