[Gmsh] Onera M6 mesh

[Martin Vymazal]

Hello,

 I'm trying to mesh Onera M6 wing with gmsh. The geometry is defined in a step
file. I have a hard time meshing correctly the tip of the wing. Even when I
create a box with specifically small characteristic lenghts around the tip,
the mesh is still ugly (see attached pictures). I tried to switch from
MeshAdapt to Delaunay and eventually even to Bamg 2D algo, but it does not
help (Bamg crashes actually). Is there anything else I could try?

 Thank you.

  Martin Vymazal
-------------- next part --------------
A non-text attachment was scrubbed...

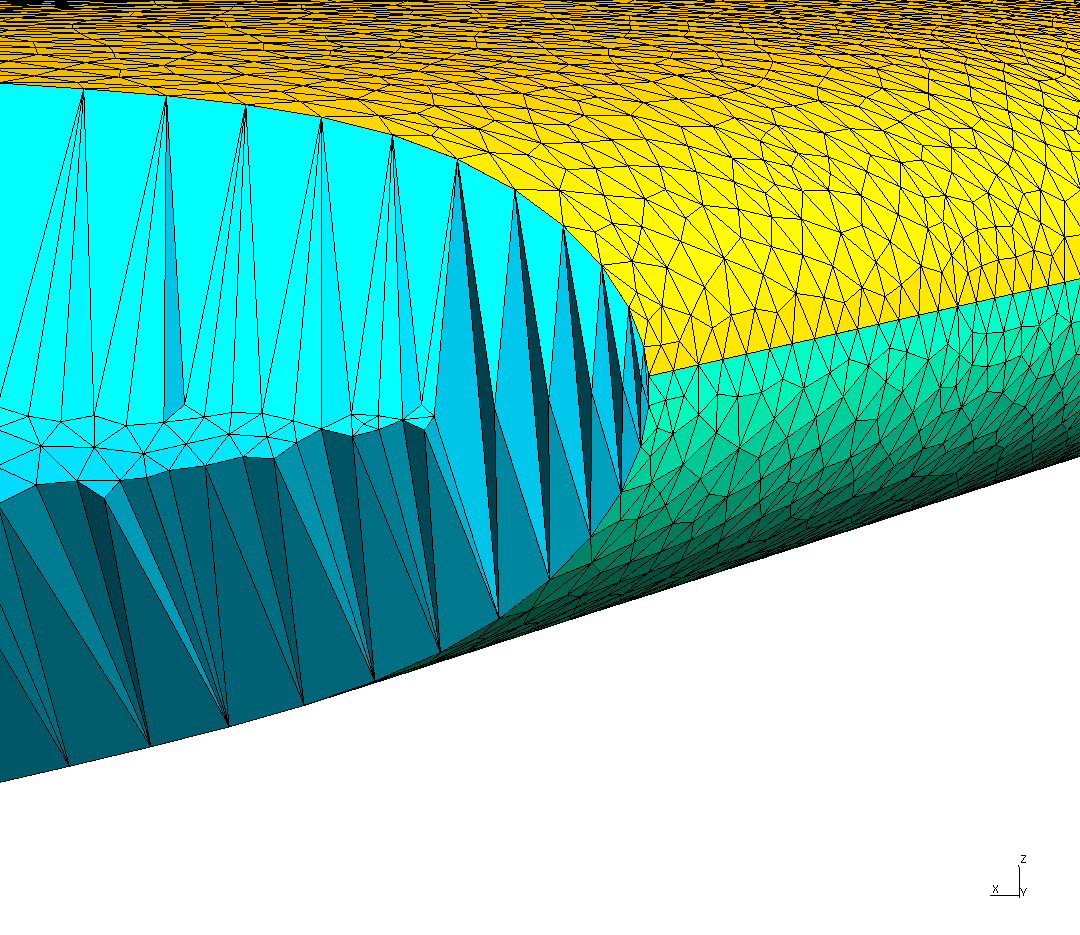

Name: onera-tip1.png
Type: image/png
Size: 86932 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20130206/8ebcb4fa/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

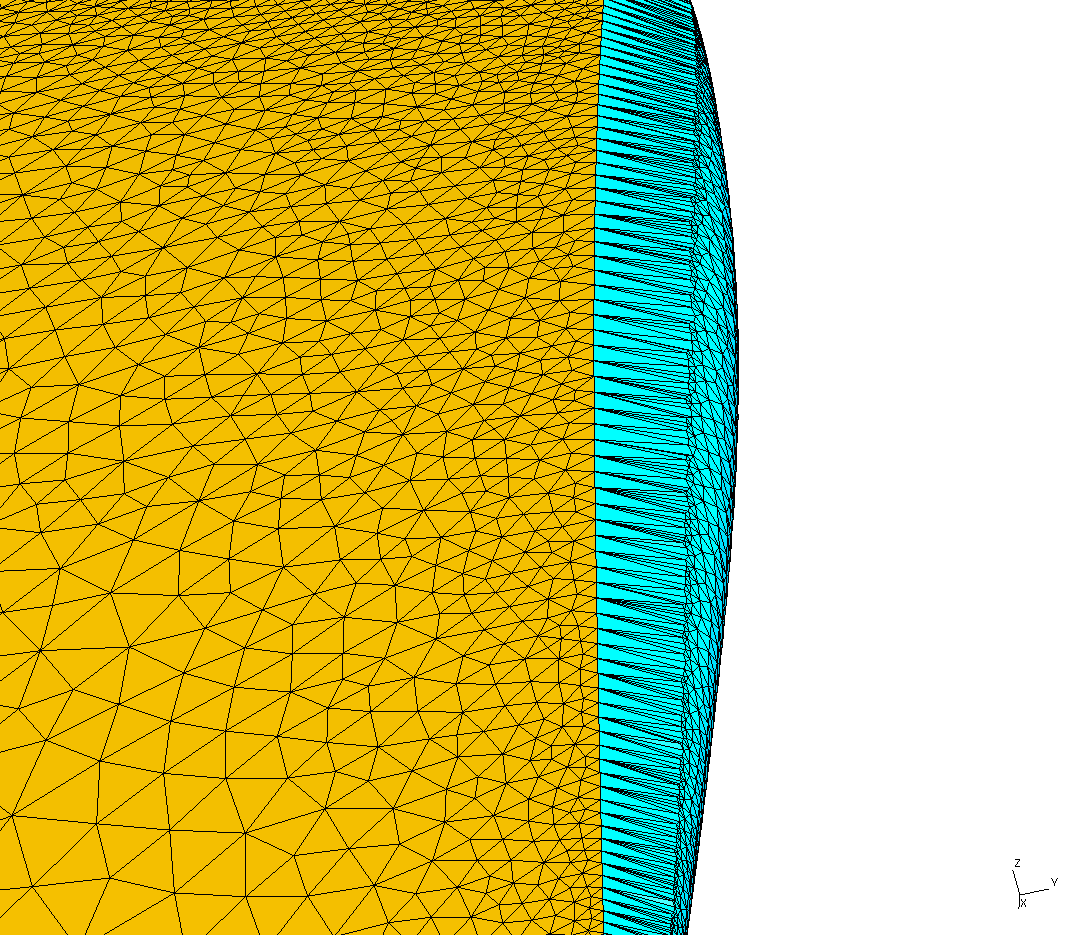

Name: onera-tip2.png
Type: image/png
Size: 107255 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20130206/8ebcb4fa/attachment-0001.png>
