[Gmsh] Not able to get gmsh MED-support working, under Ubunut and Opensuse.

[Felix Basel]

ello,


I have some problems getting the MED support working under Ubuntu and Opensuse. I have already tried a few different versions of gmsh for example 2.4.2, 2.3.0, 2.3.1 and the lastest nightly version, but with same results I'm not able to open MED-files. I cannot choose MED in the search options, by choosing "all files" I get an error that the MED support is not compiled, but I had actived MED it in ccmake/ configure.

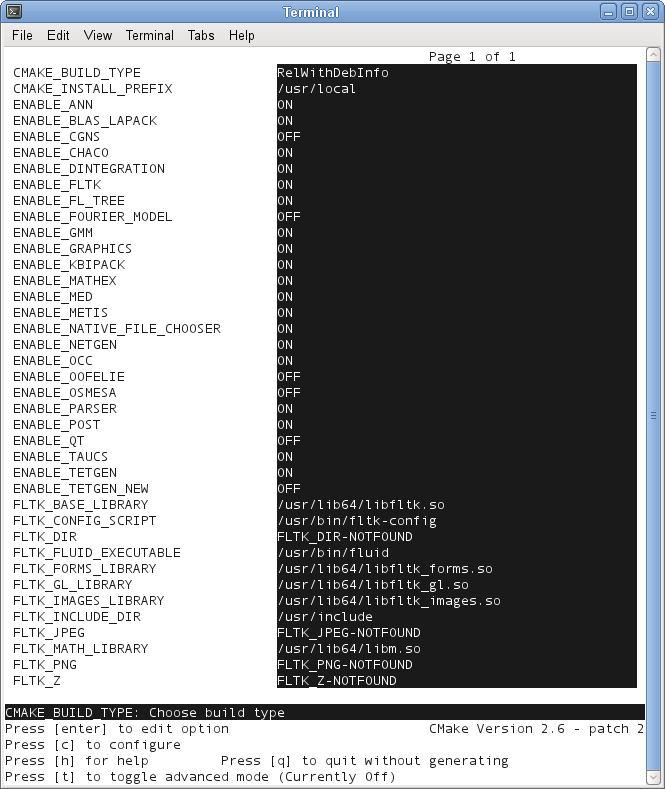

    · I ve attached the ccmake gui screenshot and the cmakecache.txt of gmsh 2.4.2

    · and the config.log of gmsh 2.3.1

    · little excerpt of config.log (Configured with: ../configure --prefix=/usr --infodir=/usr/share/info --mandir=/usr/share/man --libdir=/usr/lib64 --libexecdir=/usr/lib64 --enable-languages=c,c++,objc,fortran,obj-c++,java,ada --enable-checking=release --with-gxx-include-dir=/usr/include/c++/4.3 --enable-ssp --disable-libssp --with-bugurl=http://bugs.opensuse.org/ (http://bugs.opensuse.org/) --with-pkgversion='SUSE Linux' --disable-libgcj --disable-libmudflap --with-slibdir=/lib64 --with-system-zlib --enable-cxa_atexit --enable-libstdcxx-allocator=new --disable-libstdcxx-pch --enable-version-specific-runtime-libs --program-suffix=-4.3 --enable-linux-futex --without-system-libunwind --with-cpu=generic --build=x86_64-suse-linux)

I need to get especially gmsh 2.3.1 working, because I want to import med-files from Salome to Gmsh and then ,by gmsh2ToFoam, to OpenFOAM. To get cellZone information for the cfd simulation.



Thanks in advance.



Mit freundlichen Grüßen / Yours sincerely

Felix Basel

cand.Master of Engineering (Elektronische und Mechatronische Systeme // Electronic and Mechatronic Systems)
Dipl.-Ing.(FH) Feinwerktechnik/Mechatronik // Precision Engineering/Mechatronics

BaselFe27065 at ohm-hochschule.de

Georg-Simon-Ohm Hochschule Nürnberg // University of Applied Sciences Nuremberg



-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20091209/3aad679e/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screenshot-Terminal.png
Type: image/png
Size: 78815 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20091209/3aad679e/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: config.log
Type: text/x-log
Size: 22429 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20091209/3aad679e/attachment.log>
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: CMakeCache.txt
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20091209/3aad679e/attachment.txt>
