[Gmsh] problem with the meshing of a brep file

Romain MARECHAL rmarecha at utc.fr
Fri Aug 21 16:04:56 CEST 2009


Good afternoon,

I have some problem in Gmsh with the meshing. I import a geometry (a

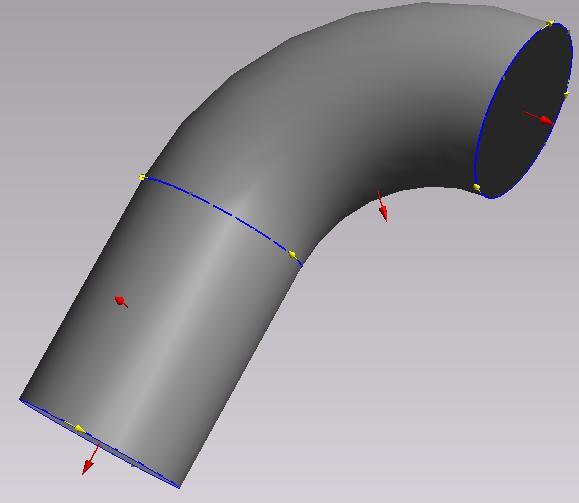

brep file, see geom.jpg) from FreeCAD. This geometry is the union
between a torus and a cylinder. It describes a closed volume in order to
mesh in 3D. When I meshed this geometry in 2D once, there is no problem

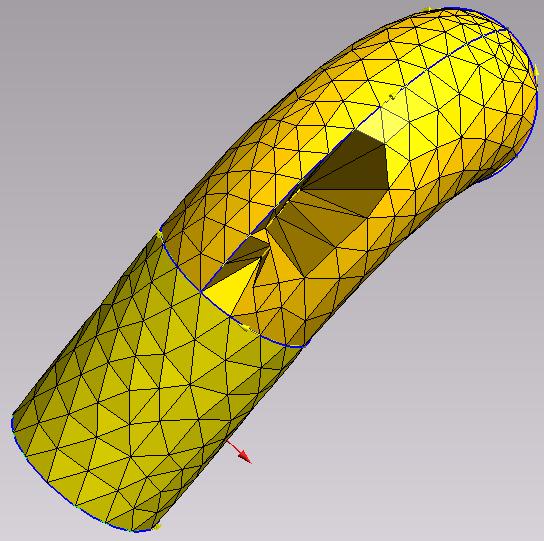

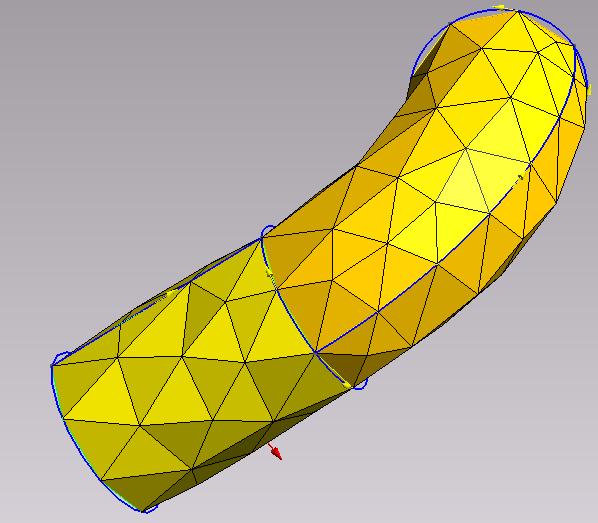

(see mesh_once.jpg) but when I refined, non physic elements appear (see
mesh_refined.jpg).

I want to know if this problem is in Gmsh or in the Boolean operation in
FreeCAD (union) ?

On the other hand, when I tried to mesh this volume in 3D, this message
appears in the meesage console :
                                Error   : Self intersecting surface
mesh, computing intersections (this could take a while)
There is no problem when I exported only the torus part. I can mesh it
in 2D or 3D.

I join the brep file if you want to see it. I have the last version of
Glmsh.

Thanks in advance,

Best regards,

--
***************************************************
* Romain MARECHAL                                 *
* Doctorant                                       *
* Laboratoire de Mécanique Roberval               *
* Division Acoustique et Vibrations Industrielles *
* Université Technologique de Compiègne           *
* Tél. : 03.44.23.48.76                           *
***************************************************

-------------- next part --------------
A non-text attachment was scrubbed...
Name: geom.JPG
Type: image/jpeg
Size: 16429 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090821/0679f309/attachment.JPG>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mesh_once.JPG
Type: image/jpeg
Size: 42861 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090821/0679f309/attachment-0001.JPG>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mesh_refined.JPG
Type: image/jpeg
Size: 57994 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090821/0679f309/attachment-0002.JPG>
-------------- next part --------------
A non-text attachment was scrubbed...

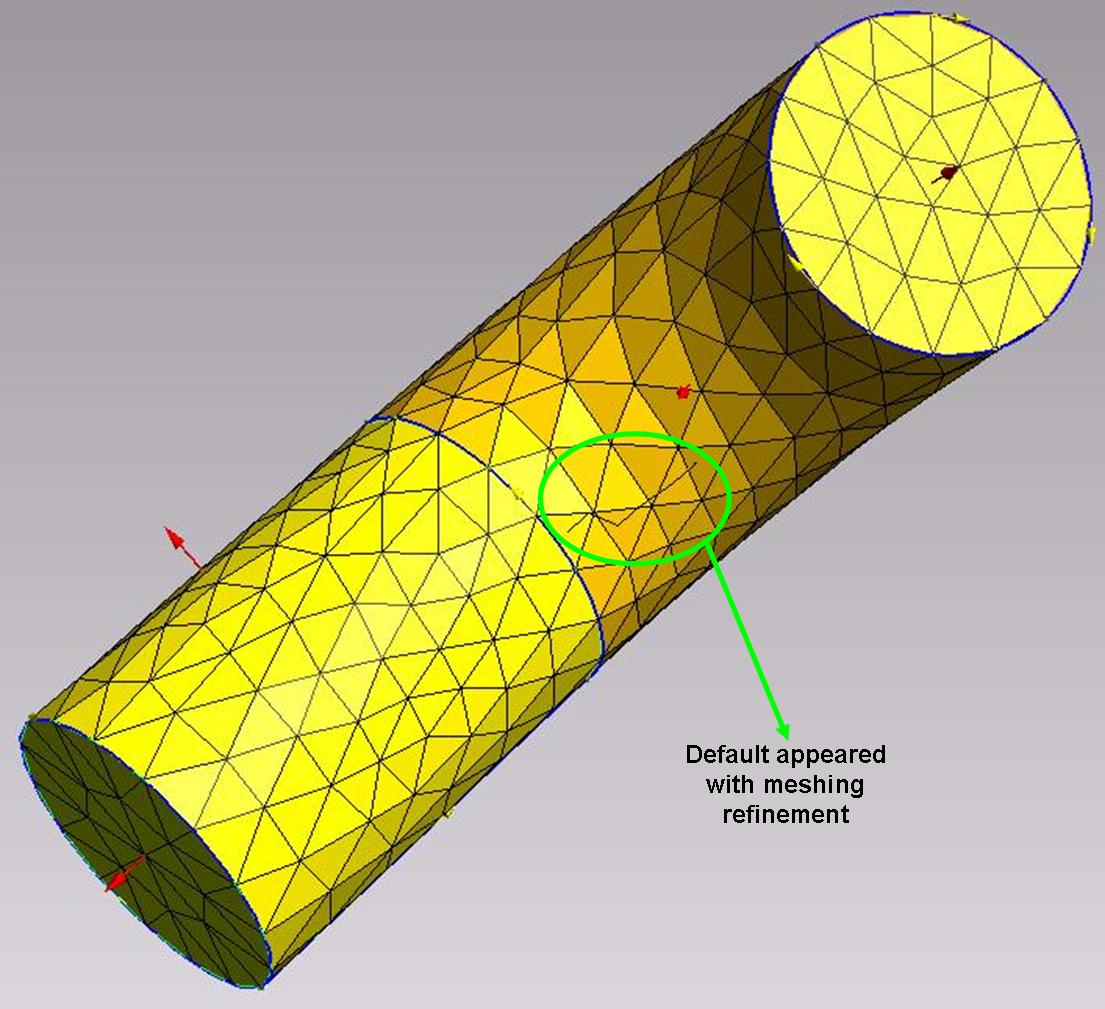

Name: mesh_refined_reverse_angle.JPG
