[Gmsh] Reading element type 118 of I-deas universal mesh files?

[Takuya OSHIMA]

Hi there,

We are trying to use Gmsh 2.3.1 on Linux in order to convert an I-deas
universal mesh that comes with Code_Aster 9.4, ahlv100j.msup (that can
also be found as a gzip-compressed attachment to this mail), to the
Gmsh .msh format for validating against Code_Aster our own FE code
that only supports the Gmsh format. The I-deas mesh mostly consists of
elements of type 118 (10-node 2nd order tetrahedra).

However, if we load and convert the I-deas mesh with Gmsh we see the
connectivity is somewhat broken (beforeFix.png), whereas the
connectivity looks fine (afterFix.png) if we modify
Geo/GModelIO_Mesh.cpp as the attached GModelIO_Mesh.cpp.diff.

Our guess is that either the point ordering of the I-deas mesh file or
the I-deas mesh reader in GModelIO_Mesh.cpp is incorrect, but we could
not draw a definitive conclusion because we could not find a
documentation about the I-deas mesh format on the net.

Does anybody have an idea about this problem?

Thanks,
Takuya

Takuya OSHIMA, Ph.D.
Faculty of Engineering, Niigata University
8050 Ikarashi-Ninocho, Nishi-ku, Niigata, 950-2181, JAPAN
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ahlv100j.msup.gz
Type: application/octet-stream
Size: 17205 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090720/aca476fa/attachment.gz>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: beforeFix.png
Type: image/png
Size: 21069 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090720/aca476fa/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: GModelIO_Mesh.cpp.diff
Type: application/octet-stream
Size: 684 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090720/aca476fa/attachment.diff>
-------------- next part --------------
A non-text attachment was scrubbed...

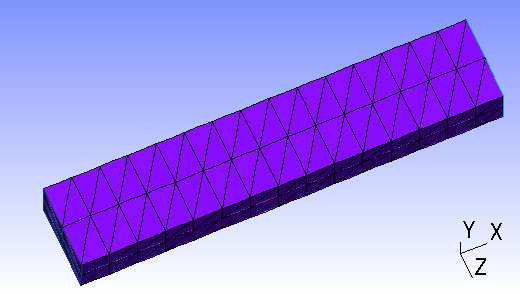

Name: afterFix.png
Type: image/png
Size: 11778 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090720/aca476fa/attachment-0001.png>
