[Gmsh] Volume creation problem

[Danny Holstein]

All;

I figured out how to use:
   Geometry.Tolerance = 1.e-3;
   Coherence;
to fix some issues with closing lines and surfaces.

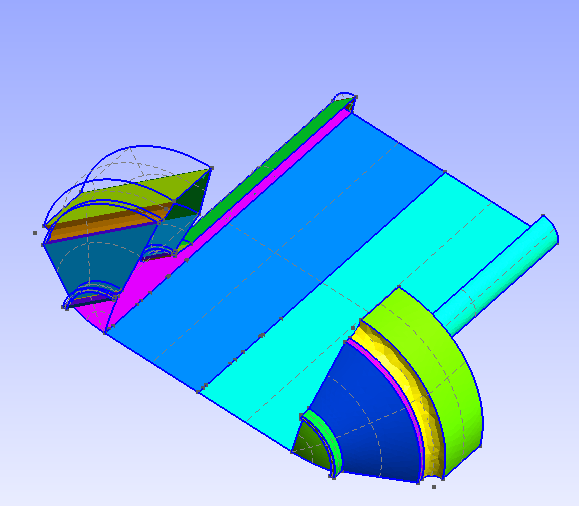

The attached GEO file is having some weird, asymmetric griding issues as you can see in the attached PNG file.  from the symmetry, I'm inclined to believe it's not an issue with the GEO file -- maybe there's a workaround.

   ...Dan


----- Original Message -----
From: "Christophe Geuzaine" <cgeuzaine at ulg.ac.be>
To: "Danny Holstein" <dgholstein at embarqmail.com>
Cc: gmsh at geuz.org
Sent: Sunday, June 14, 2009 3:11:54 PM GMT -05:00 US/Canada Eastern
Subject: Re: [Gmsh] Volume creation problem

Danny Holstein wrote:
> All;
>
> I created what I thought was a closed volume, but GMSH doesn't agree.  I've attached the offending file, does anyone know why it's not working?
>

It looks like your volume is not closed: see e.g. lines 29 and 272.


> Regards,
>    ...Dan
>
>
> ------------------------------------------------------------------------
>
> _______________________________________________
> gmsh mailing list
> gmsh at geuz.org
> http://www.geuz.org/mailman/listinfo/gmsh


--
Prof. Christophe Geuzaine
University of Liege, Electrical Engineering and Computer Science
http://www.montefiore.ulg.ac.be/~geuzaine
-------------- next part --------------
A non-text attachment was scrubbed...
Name: gun.geo
Type: application/octet-stream
Size: 4295 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090616/185e57be/attachment.geo>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: funny.png
Type: image/png
Size: 35765 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090616/185e57be/attachment.png>
