[Gmsh] Boundary layer extrusion in curved surface

[Vadivelan C]

Hi

I was trying to create the boundary layers in cylinder type body. Extrusion
was done above the surface. But its looks strange. When viewed from front
view, extrusion was not done properly. I mean the problem occurs at the
junction between two surfaces. Can you help me to sort out the extrusion
along the curved surface. I have attached the files.

 - Ranjith
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090604/2b59f1ed/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

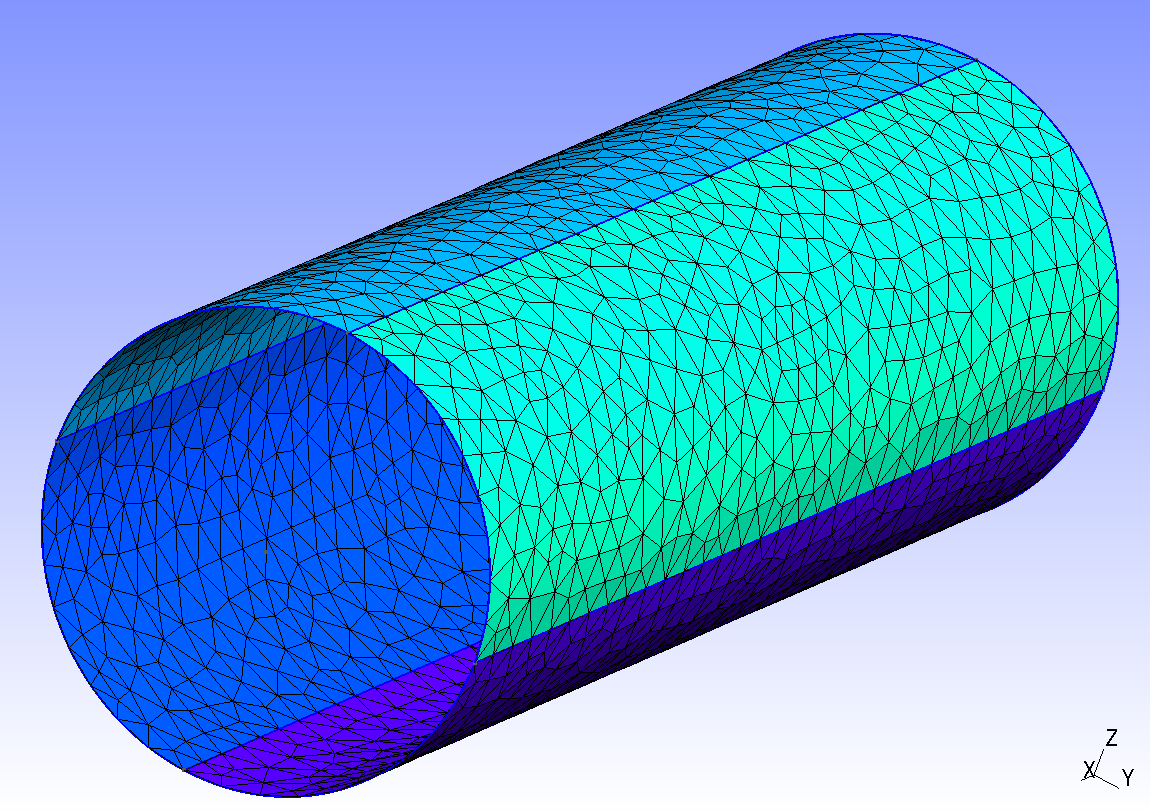

Name: cylinder_surface.png
Type: image/png
Size: 117547 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090604/2b59f1ed/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

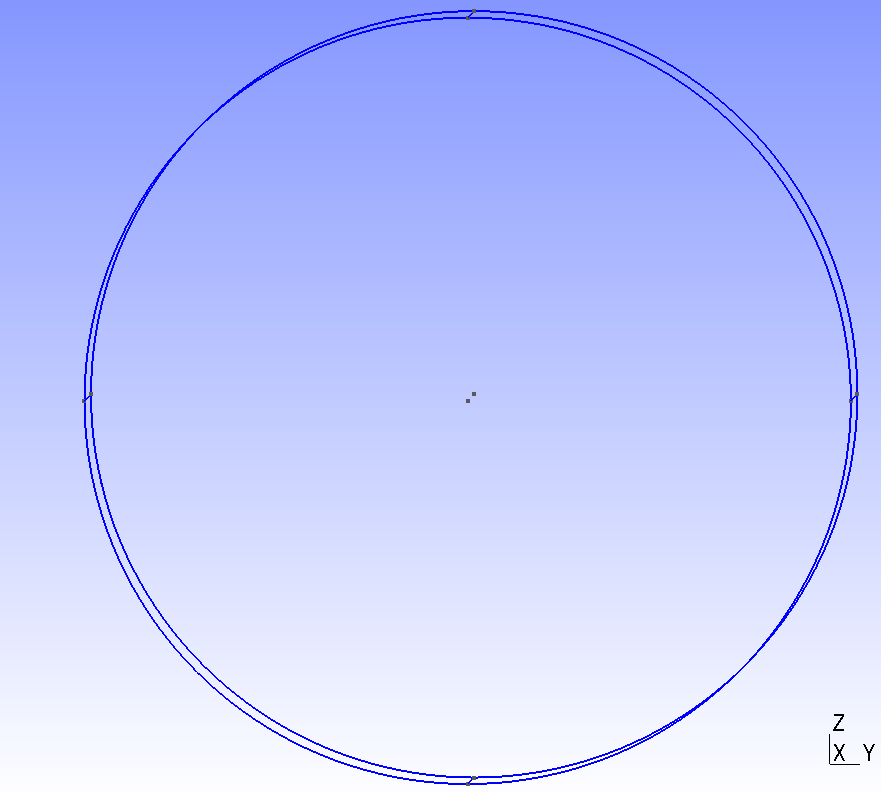

Name: cylinder_bl.png
Type: image/png
Size: 13409 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090604/2b59f1ed/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: try2.geo
Type: application/octet-stream
Size: 1218 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090604/2b59f1ed/attachment.geo>
