Hi Jose,

   Thank you so much for help.

   Following your steps, I was able to load the shape into Gmsh. That's
great! But when I I try to mesh, it

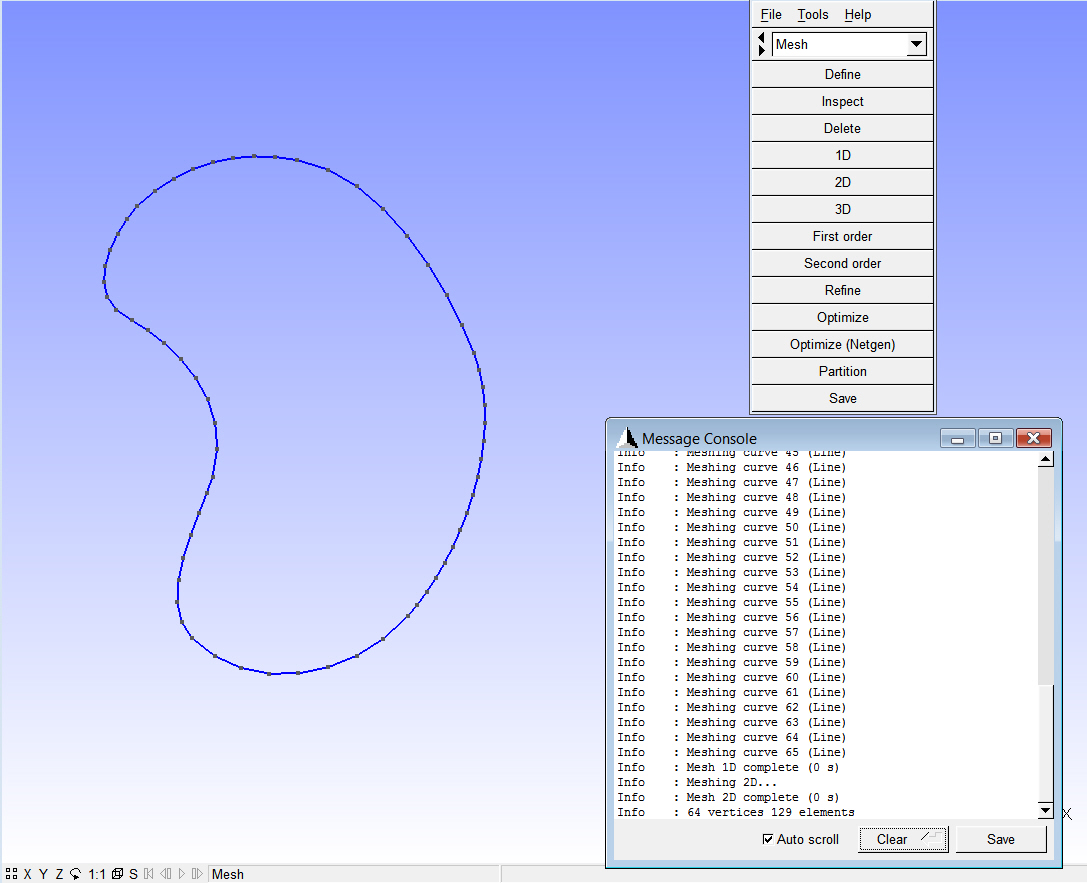

did not generate 2D triangulation. What I did is just click the "2D" button
in Mesh. I attach a screenshot
for what I got. I am quite new to Gmsh. Are there other steps I need to
mesh?

Sincerely,
Mengda

2009/4/8 Jose Paulo Moitinho de Almeida <moitinho at civil.ist.utl.pt>

> On Tuesday 07 April 2009, Mengda Wu wrote:
> > Hi all,
> >
> >    I am looking for a way to generate a 2D triangulation of a shape (in
> the
> > attachment) by Inkscape (http://www.inkscape.org/).
>
> Don't know if it is the shortest route, but it works ...
>
> - In inkscape "save as" .dxf
> - open in qcad and save as dxf 2000
> - use perl script in utils/converters/autocad/dxf2geo.pl to convert to geo
> - in gmsh define surface and mesh
>
> > I am wondering if anyone has done this before. It will be great if I can
> > reload the output into inkscape afterwards.
>
> Just save as svg, probably without background.
>
> Regards
>
> ZP
>
>
