Karin&NiKo wrote:
> Dear Gmsh Experts,
>
> I am trying to compute stream lines for the Stokes attached result file.
> But I just obtain garbage.
> Could you please give me some hints on how to use the StreamLines plugin?
>

Hi Nicolas - This will be fixed in 2.3.0 (there was a small bug
preventing correct interpolation of non-scalar model-based datasets).
Example attached.

Thanks for the bug report!
Christophe



> Thanks,
> Nicolas
>
>
> ------------------------------------------------------------------------
>
> _______________________________________________
> gmsh mailing list
> gmsh at geuz.org
> http://www.geuz.org/mailman/listinfo/gmsh


--
Prof. Christophe Geuzaine
University of Liege, Electrical Engineering and Computer Science
http://www.montefiore.ulg.ac.be/~geuzaine
-------------- next part --------------
A non-text attachment was scrubbed...

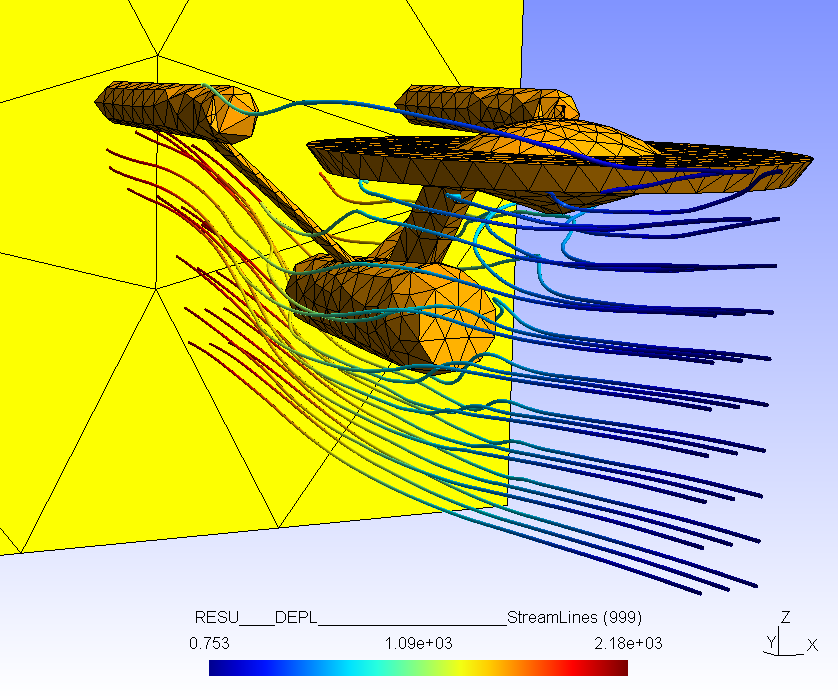

Name: enterprise.png
Type: image/png
Size: 141947 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20090123/b5831a17/attachment.png>
