Hello!



Thank you for your prompt response.

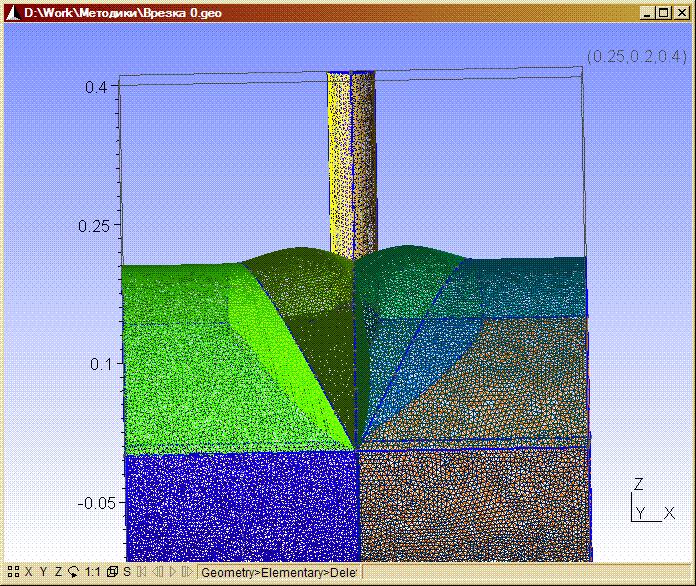

Is incorrect execution of surfaces around the hole , it is a standard
element for the vessels.



Best regards,

Izyumov Konstantin

Ltd. "Aliter-Aksi"

www.aliter.spb.ru

St. Petersburg

E-mail: izyumov at aliter.spb.ru

Tel.: (812) 274-29-87

Fax: (812) 274-09-72





Здравствуйте!



Благодарю за скорый ответ.

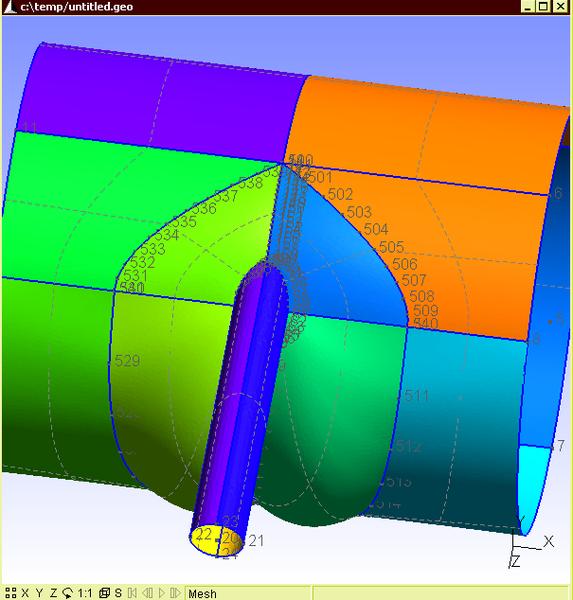

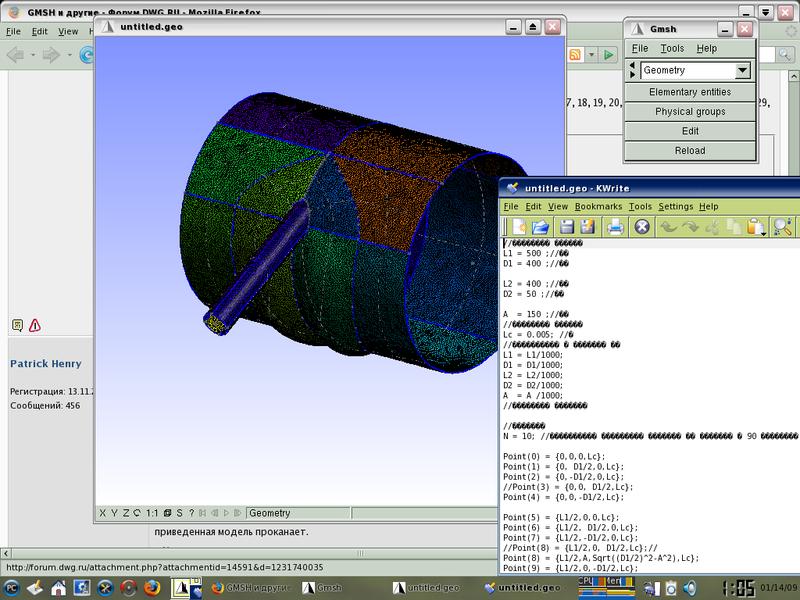

Прошу посоветовать правильность выполнения модели врезки труба в трубу, т.к.
это стандартный элемент для сосудов и аппаратов. Некорректно получается
выполнение поверхностей вокруг врезки.



С уважением,

Изюмов Константин Владимирович

ООО "Алитер-Акси"

www.aliter.spb.ru

г. Санкт-Петербург

E-mail: izyumov at aliter.spb.ru

Тел.: (812) 274-29-87

Факс: (812) 274-09-72
