Hello!

Currently, the application program is implemented Gmsh to calculate the
pressure receptacles and therefore raise the following needs, which is easy
to see in the following example:

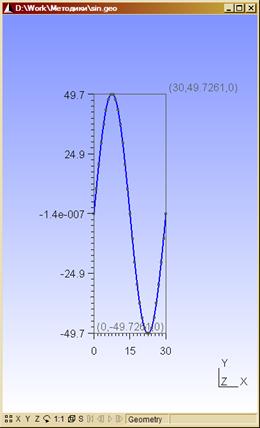

  N = 30;
For i In (0: N)
Point (i) = (i, 50 * Sin (i / N * 2 * 3.1415926), 0);
EndFor
Spline (1) = (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,
18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30);


I realize simplified recording functions for Spline, for example:

N = 30;
For i In (0: N)
Point (i) = (i, 50 * Sin (i / N * 2 * 3.1415926), 0);
EndFor
Spline (1) = (<0,30>) / / Instead of (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,
12, 13, 14, 15, 16 , 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29,
30);

This modification will help to fully implement the use of parametric models.



Best regards,
Izyumov Konstantin
Ltd. "Aliter-Aksi"
www.aliter.spb.ru
St. Petersburg
E-mail: izyumov at aliter.spb.ru
Tel.: (812) 274-29-87
Fax: (812) 274-09-72









Здравствуйте!



В настоящий момент реализуется применение программы Gmsh для расчета сосудов
под давлением и в связи с этим возникло следующая потребность, которую легко
заметить на примере:






N = 30;

For i In {0:N}

            Point(i) = {i,50*Sin(i/N*2*3.1415926),0};

EndFor

Spline(1) = {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,
18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30};






Прошу реализовать упрощенную запись для функции Spline, к примеру:



N = 30;

For i In {0:N}

            Point(i) = {i,50*Sin(i/N*2*3.1415926),0};

EndFor

Spline(1) = {<0,30>}; // Вместо {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30};



Данная модификация позволит полностью реализовать применение параметрических
моделей.





С уважением,

Изюмов Константин Владимирович

ООО "Алитер-Акси"

www.aliter.spb.ru

г. Санкт-Петербург

E-mail: izyumov at aliter.spb.ru

Тел.: (812) 274-29-87

Факс: (812) 274-09-72
